| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT-EX-AL |
| Minimum Order Quantity: | 50Sqm |
| Packaging Details: | Wooden Pallet , Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 1000Sqm/week |
| Product Name: | Aluminum Architectural Expanded Mesh | Material: | Aluminum Sheet |
|---|---|---|---|
| Technique: | Expanded | Surface Finished: | Powder Coating , Anodising , Galvanized |
| SWD: | 2-50mm | LWD: | 4-100mm |
| Application: | Curtain Wall , Facade Cladding , Ceiling Decorative | ||
| High Light: | expanded aluminium mesh,stainless steel woven wire mesh |
||

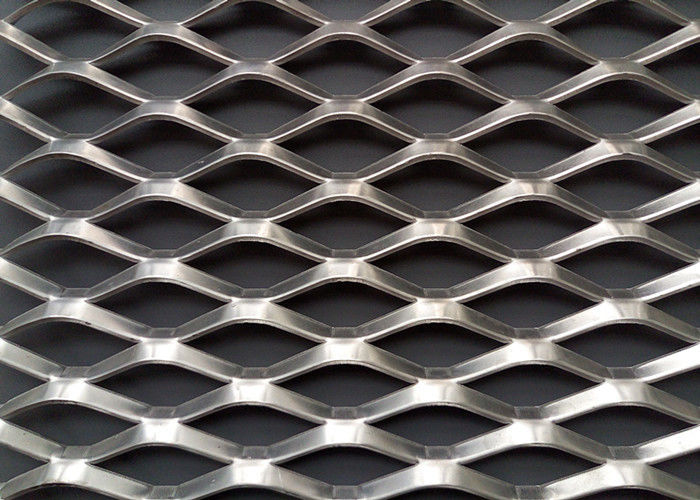

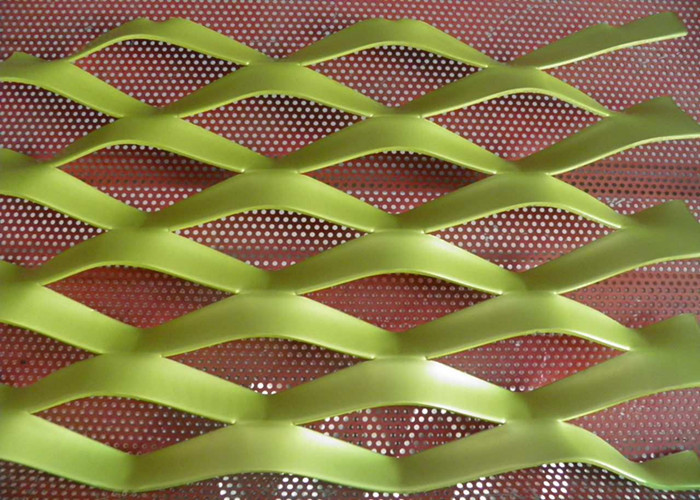

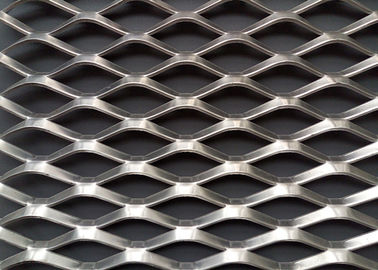

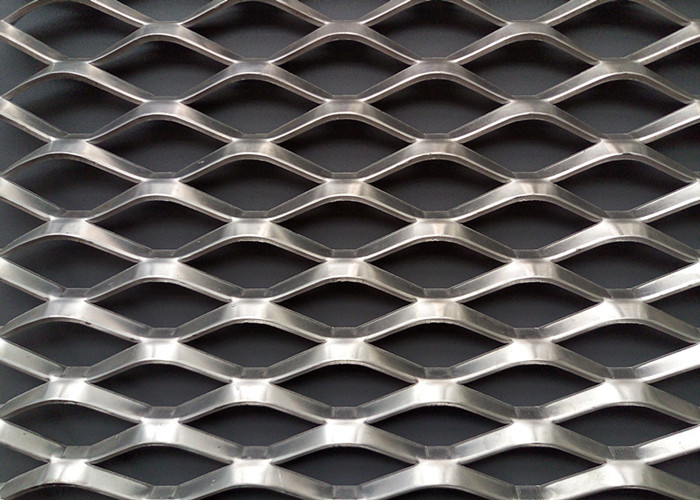

Decorative Aluminum Architectural Expanded Mesh Woven Wire Mesh
Specifications of aluminum expanded metal mesh :
| Thickness | SWD | LWD | Strip | Width | Length | Weight |
| 0.5MM | 2.5MM | 4.5MM | 0.5MM | 0.5M | 1.0M | 1.8KG/M2 |
| 0.5MM | 10MM | 25MM | 0.5MM | 0.6M | 2.0M | 0.73KG/M2 |
| 0.6MM | 10MM | 25MM | 1.0MM | 0.6M | 2.0M | 1.0KG/M2 |
| 0.8MM | 10MM | 25MM | 1.0MM | 0.6M | 2.0M | 1.25KG/M2 |
| 1.0MM | 10MM | 25MM | 1.1MM | 0.6M | 2.0M | 1.77KG/M2 |
| 1.0MM | 15MM | 40MM | 1.5MM | 2.0M | 4.0M | 1.85KG/M2 |
| 1.2MM | 10Mm | 25MM | 1.1MM | 2.0M | 4.0M | 2.21KG/M2 |
| 1.2MM | 15MM | 40MM | 1.5MM | 2.0M | 4.0M | 2.30KG/M2 |
| 1.5MM | 15MM | 40MM | 1.5MM | 1.8M | 4.0M | 2.77KG/M2 |
| 1.5MM | 23MM | 60MM | 2.6MM | 2.0M | 3.6M | 2.77KG/M2 |
| 2.0MM | 18MM | 50MM | 2.1MM | 2.0M | 4.0M | 3.69KG/M2 |
Simple Drawing of Aluminum Expanded Metal Mesh
Aluminum Expanded Metal mesh is formed in an expanding press. The basic metal is simultaneously slit and cold-formed, which expands the slits into diamond shaped openings of uniform size and regularity. Aluminum Expanded metal mesh is a form of metal stock made by shearing a metal plate in a press, so that the metal stretches, leaving diamond-shaped voids surrounded by interlinked bars of the metal. The most common method of manufacture is to simultaneously slit and stretch the material with one motion.
Surface treatment :
PVC coated, Galvanized, anodic oxidation, antirust paint etc..
Weaving and characters:
Made up by Stamping and stretching the metal sheet, elegant appearance, sturdiness and durability.
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt

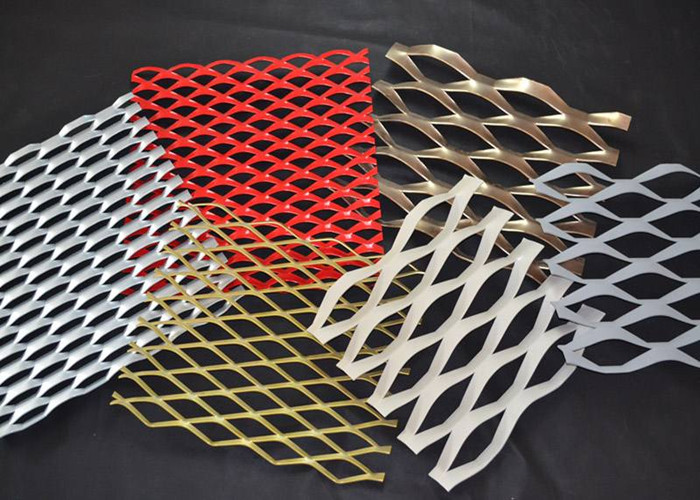

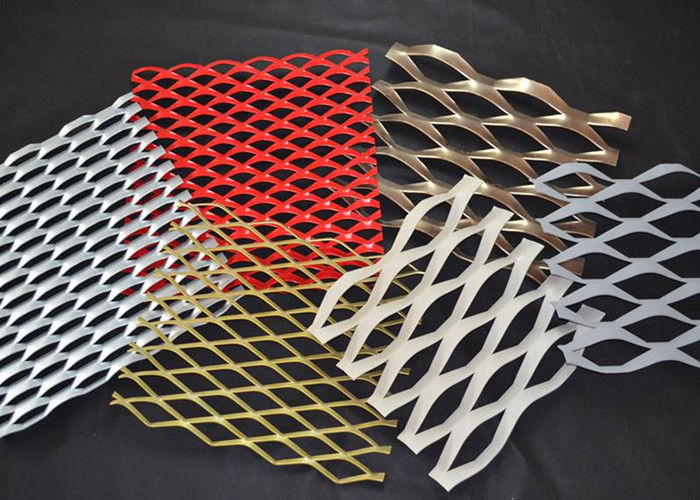

Visibility and colorful
Used as decorative mesh for building outer wall ,radiator cover mesh
Easily fabricated, finished, installed and formed
Application :
Hotels, airports, railway stations, conference rooms, hotels, stadiums, television indoor decoration, ceiling and outdoor curtain wall, and a variety of vehicles, such as air compressor cooling ventilation hood and mechanical protection cover, acoustics, filter, air conditioning, satellite antenna, outdoor furniture, machinery facilities protection, highway barrier, building decoration..ect.
