Decorative Aluminum Expanded Metal Mesh Woven Facade Cladding 4-100mm LWD

Basic Information
Place of Origin: Hebei
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT-EX-AL
Minimum Order Quantity: 50Sqm
Packaging Details: Wooden Pallet , Wooden Case
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000Sqm/week
Product Name: Decorative Facade Cladding Mesh Material: Aluminum Sheet
Technique: Expanded Surface Finished: Powder Coating , Anodising , Galvanized
SWD: 2-50mm LWD: 4-100mm
Application: Curtain Wall , Facade Cladding , Ceiling Decorative
High Light:

decorative stainless steel mesh


expanded aluminium mesh

Decorative Aluminum Expanded Metal Mesh Facade Cladding Woven Wire Mesh


Aluminum Expanded Metal mesh is formed in an expanding press. The basic metal is simultaneously slit and cold-formed, which expands the slits into diamond shaped openings of uniform size and regularity. Aluminum Expanded metal mesh is a form of metal stock made by shearing a metal plate in a press, so that the metal stretches, leaving diamond-shaped voids surrounded by interlinked bars of the metal. The most common method of manufacture is to simultaneously slit and stretch the material with one motion.


Specifications of aluminum expanded metal mesh :


Thickness SWD LWD Strip Width Length Weight
0.5MM 2.5MM 4.5MM 0.5MM 0.5M 1.0M 1.8KG/M2
0.5MM 10MM 25MM 0.5MM 0.6M 2.0M 0.73KG/M2
0.6MM 10MM 25MM 1.0MM 0.6M 2.0M 1.0KG/M2
0.8MM 10MM 25MM 1.0MM 0.6M 2.0M 1.25KG/M2
1.0MM 10MM 25MM 1.1MM 0.6M 2.0M 1.77KG/M2
1.0MM 15MM 40MM 1.5MM 2.0M 4.0M 1.85KG/M2
1.2MM 10Mm 25MM 1.1MM 2.0M 4.0M 2.21KG/M2
1.2MM 15MM 40MM 1.5MM 2.0M 4.0M 2.30KG/M2
1.5MM 15MM 40MM 1.5MM 1.8M 4.0M 2.77KG/M2
1.5MM 23MM 60MM 2.6MM 2.0M 3.6M 2.77KG/M2
2.0MM 18MM 50MM 2.1MM 2.0M 4.0M 3.69KG/M2


Simple Drawing of Aluminum Expanded Metal MeshDecorative Aluminum Expanded Metal Mesh Woven Facade Cladding 4-100mm LWD 0


Surface treatment :
PVC coated, Galvanized,anodic oxidation, antirust paint etc..

Weaving and characters:
Made up by Stamping and stretching the metal sheet, elegant appearance, sturdiness and durability.



Weight is light enough for outer wall hanging


Rainstorm or isolation won`t hurt

Visibility and colorful

Used as decorative mesh for building outer wall , radiator cover mesh

Easily fabricated, finished, installed and formed


Application :


Hotels, airports, railway stations, conference rooms, hotels, stadiums, television indoor decoration, ceiling and outdoor curtain wall, and a variety of vehicles, such as air compressor cooling ventilation hood and mechanical protection cover, acoustics, filter, air conditioning, satellite antenna, outdoor furniture, machinery facilities protection, highway barrier, building decoration..ect.

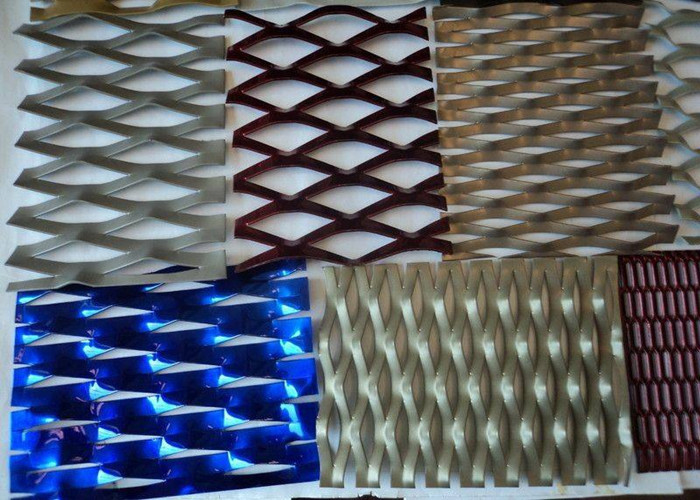

Decorative Aluminum Expanded Metal Mesh Woven Facade Cladding 4-100mm LWD 1Decorative Aluminum Expanded Metal Mesh Woven Facade Cladding 4-100mm LWD 2
