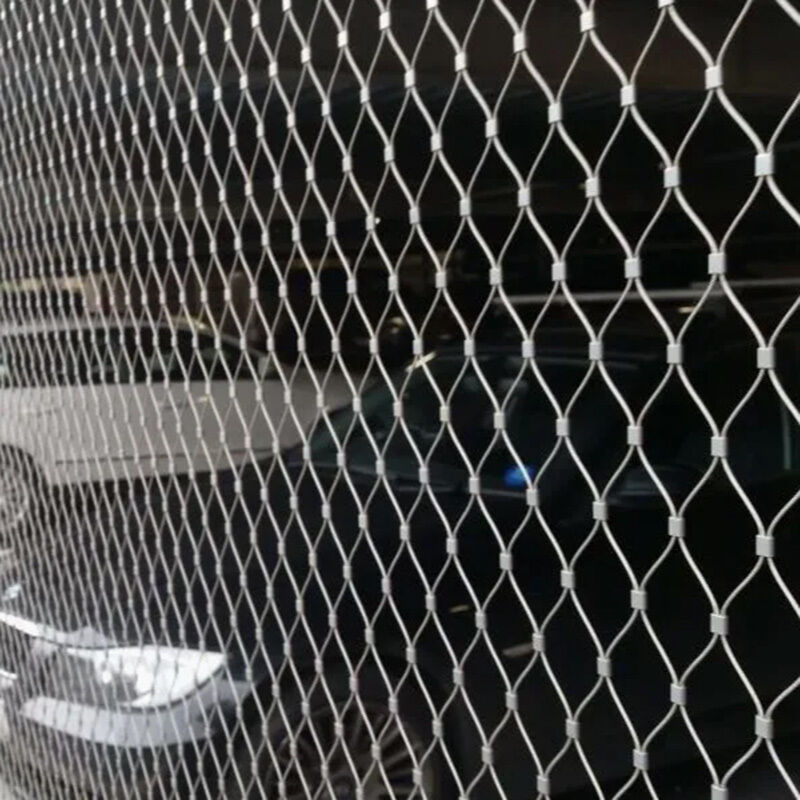

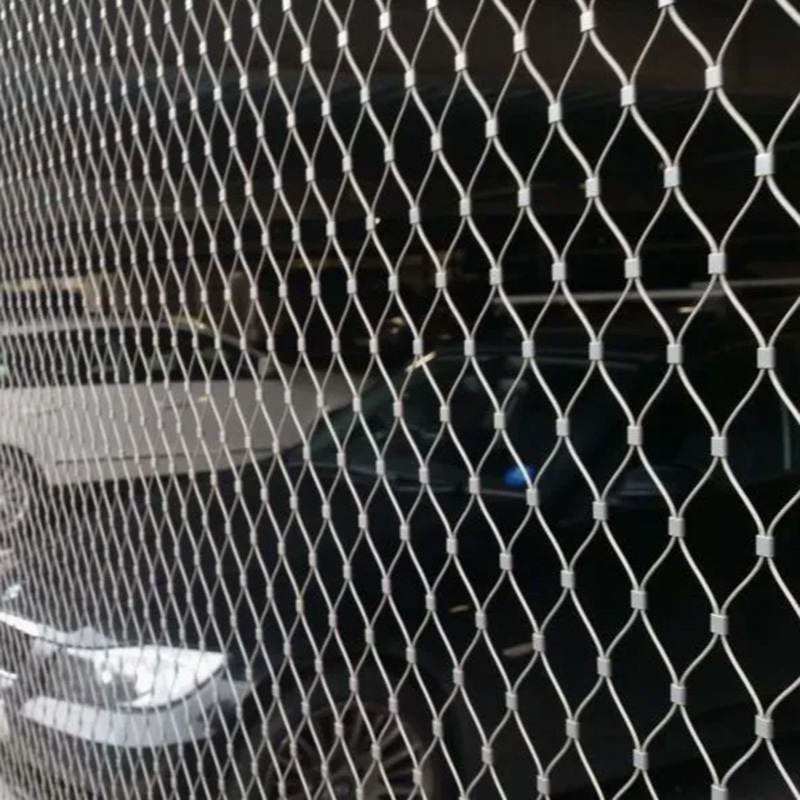

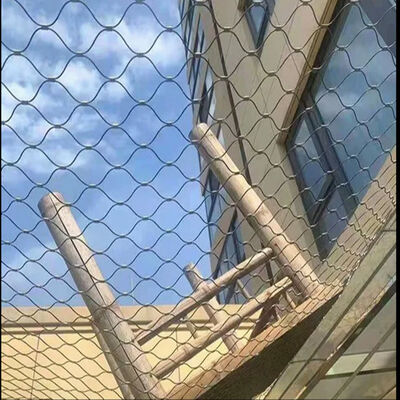

Name: High Strength Stainless Steel 304/316/316L Wire Rope Mesh with Customized Size for Anti-Fall and Plant Trellis
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: YT--F-2075
Price: 15.00 USD
Availability: InStock

High Strength Stainless Steel 304/316/316L Wire Rope Mesh with Customized Size for Anti-Fall and Plant Trellis

Basic Information

Place of Origin:	Hebei
Brand Name:	Yuntong
Certification:	CE , SGS
Model Number:	YT--F-2075

Minimum Order Quantity:	10 Sqm
Packaging Details:	Package film for each piece,Several pieces packed in 1 carton
Delivery Time:	5-8 Work Days
Payment Terms:	T/T,Western Union,PayPal
Supply Ability:	300Sqm/Week

Contact Now

Material:

Stainless Steel 304 , 316 , 316L

Wire Rope:

1.6 Mm To 2.4 Mm

Rope Constructions:

7 X 7 , 7 X 19 , 1 X 19

Mesh Orientation:

Horizontal , Vertical

Mesh Shape:

Rhombus , Diamond

Application:

Green Wall , Plant Trellis ,Climbing Net

Product Name:

Wire Rope Flexible Mesh Trellis

Mesh Angle:

60 Degree

Mesh Style:

X-tend In Ferruled Type

Sheet Size:

Customized In Width And Length

Highlight:

High Strength Wire Rope Mesh

Stainless Steel 304/316/316L Cable Mesh

Customized Size Ferrule Cable Mesh

High Strength Stainless Steel Ferrule Cable Wire Rope Mesh For Anti-Fall Mesh

Stainless Steel Ferrule Cable Wire Rope Mesh Specifications

Hole Size (Opening)	1.2MM (3/64) (7 x 7)	1.6MM (1/16) (7 x 7)	2.0MM (5/64) (7 x 7)	2.4MM (3/32) (7 x 7)	3.2MM (1/8) (7 x 19)
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

Material Specifications

Material of Wire Rope Plant Trellis Mesh: Stainless steel 304, 304L, 316, 316L etc.

Material	Chemical Composition (%)
SS304	C: ≤0.07, Si: ≤1.0, Mn: ≤2.0, Cr: 17.0-19.0, Ni: 8.0-11.0, S: ≤0.03, P: ≤0.035
SS316	C: ≤0.08, Si: ≤1.00, Mn: ≤2.00, P: ≤0.035, S: ≤0.03, Ni: 10.0-14.0, Cr: 16.0-18.5
SS316L	C: ≤0.03, Si: ≤1.00, Mn: ≤2.00, P: ≤0.045, S: ≤0.030, Cr: 16.0-18.0, Ni: 12.0-15.0

Custom Manufacturing Capabilities

Stainless Steel Ferrule Cable Wire Rope Mesh by Yuntong can be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical shapes.

Stainless Steel Cable Mesh is custom manufactured to specific widths and lengths to suit architectural applications. Finished diamond mesh style when stretched at 60 degree angle; diagonal and irregular shapes can also be supplied. Mesh can be applied in either vertical or horizontal directions, depending on balustrade or railing design and required aesthetics.

Recommended Specifications for Climber Plant Trellis Mesh

Material	Cable Diameter	Hole Size	Normal Break
SS304/316/316L	3/32" (2.4MM)	2.5" x 2.5"	920LBS
SS304/316/316L	3/32" (2.4MM)	3" x 3"	920LBS
SS304/316/316L	3/32" (2.4MM)	4" x 4"	920LBS
SS304/316/316L	5/64" (2.0MM)	2.5" x 2.5"	676 LBS
SS304/316/316L	5/64" (2.0MM)	3" x 3"	676 LBS
SS304/316/316L	5/64" (2.0MM)	4" x 4"	676 LBS

Product Features

X-TEND Stainless steel mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure.
