Stainless Steel 304/316/316L Wire Rope Mesh with 1.6mm to 2.4mm Wire Thickness and 60 Degree Mesh Angle for Plant Trellis

Stainless Steel 304/316/316L Wire Rope Mesh with 1.6mm to 2.4mm Wire Thickness and 60 Degree Mesh Angle for Plant Trellis
Stainless Steel 304/316/316L Wire Rope Mesh with 1.6mm to 2.4mm Wire Thickness and 60 Degree Mesh Angle for Plant Trellis
Stainless Steel 304/316/316L Wire Rope Mesh with 1.6mm to 2.4mm Wire Thickness and 60 Degree Mesh Angle for Plant Trellis Stainless Steel 304/316/316L Wire Rope Mesh with 1.6mm to 2.4mm Wire Thickness and 60 Degree Mesh Angle for Plant Trellis
Basic Information
Place of Origin: Hebei,China
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT--F-2075
Minimum Order Quantity: 10 Sqm
Packaging Details: Package film for each piece,Several pieces packed in 1 carton for the green wall climbing mesh
Delivery Time: 5-8 Work Days
Payment Terms: T/T,Western Union,PayPal,L/C
Supply Ability: 300Sqm/Week
Contact Now
Material: Stainless Steel 304 , 316 , 316L Wire Thickness: 1.6 Mm To 2.4 Mm
Rope Constructions: 7 X 7 , 7 X 19 , 1 X 19 Mesh Eye Size: 50mm To 100 Mm Or Bigger
Mesh Angle: 60 Degree Mesh Shape: Rhombus , Diamond
Application: Green Wall , Plant Trellis ,Climbing Net Shipment: By Air Or By Courier
Mesh Style: X-tend In Ferruled Type
Highlight:

Stainless Steel 304/316/316L Wire Rope Mesh

,

1.6mm to 2.4mm Wire Thickness Cable Mesh

,

60 Degree Mesh Angle Ferrule Cable Mesh

Ferrule Type 304/316 Metal Wire Rope Mesh for Animal Protection, Zoo Enclosures, and Bird Aviaries
High-quality stainless steel wire rope mesh designed for animal protection applications including zoo enclosures, aviaries, and animal habitats. Manufactured with precision and durability in mind.
Mesh Specifications
Mesh Opening Size 1.2MM (3/64) (7×7) 1.6MM (1/16) (7×7) 2.0MM (5/64) (7×7) 2.4MM (3/32) (7×7) 3.2MM (1/8) (7×19)
20×35mmYT-1235
25×42mmYT-1225YT-1625
30×52mmYT-1230YT-1630YT-2030
35×60mmYT-1235YT-1635YT-2035
38×66mmYT-1238YT-1638YT-2038YT-2438
40×69mmYT-1240YT-1640YT-2040YT-2440YT-3040
50×86mmYT-1250YT-1650YT-2050YT-2450YT-3050
60×104mmYT-1260YT-1660YT-2060YT-2460YT-3060
70×120mmYT-1270YT-1670YT-2070YT-2470YT-3070
76×131mmYT-1276YT-1676YT-2076YT-2476YT-3076
80×138mmYT-1280YT-1680YT-2080YT-2480YT-3080
90×154mmYT-1290YT-1690YT-2090YT-2490YT-3090
100×173mmYT-12100YT-16100YT-20100YT-24100YT-30100
120×206mmYT-12120YT-16120YT-20120YT-24120YT-30120
Material Composition
Material Chemical Composition (%)
SS304 C:≤0.07, Si:≤1.0, Mn:≤2.0, Cr:17.0-19.0, Ni:8.0-11.0, S:≤0.03, P:≤0.035
SS316 C:≤0.08, Si:≤1.00, Mn:≤2.00, P:≤0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0-18.0, Ni:12.0-15.0
Product Features
Yuntong stainless steel wire rope mesh can be tensioned into three-dimensional forms featuring funnel-like, cylindrical, or spherical shapes. Custom manufactured in widths and lengths to suit your application requirements. Finished diamond mesh style when stretched at a 60-degree angle. Mesh sizes range from 20mm to 120mm or larger with stainless cable diameters from 1.2mm to 4.0mm.
Recommended Specifications for Plant Trellis Mesh
Material Cable Diameter Hole Size Normal Break
SS304/316/316L3/32" (2.4MM)2.5"×2.5"920LBS
SS304/316/316L3/32" (2.4MM)3"×3"920LBS
SS304/316/316L3/32" (2.4MM)4"×4"920LBS
SS304/316/316L5/64" (2.0MM)2.5"×2.5"676LBS
SS304/316/316L5/64" (2.0MM)3"×3"676LBS
SS304/316/316L5/64" (2.0MM)4"×4"676LBS
Key Benefits
  • High strength, strong toughness, free angles curving and fold, easy for transportation and installation
  • Can bear heavy snow and glazing conditions
  • Without toxic materials, safety, environmental protection
Product Images

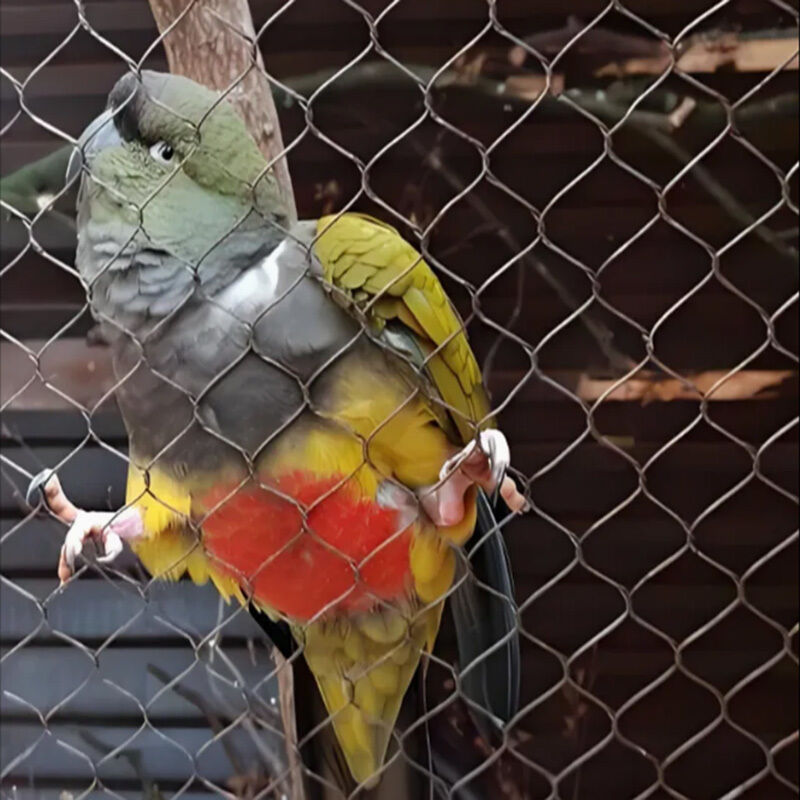

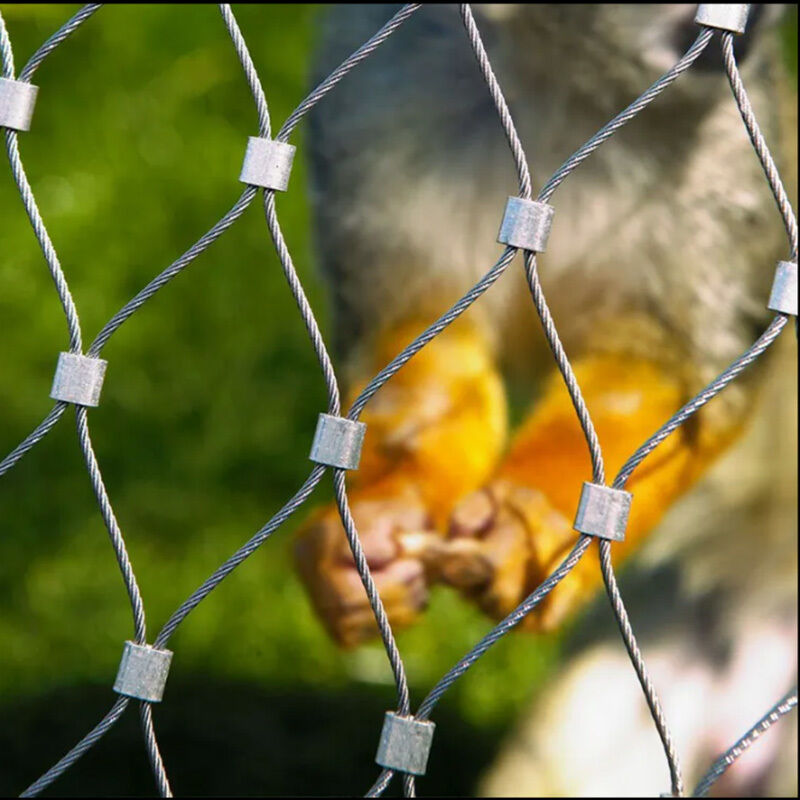

Stainless steel wire rope mesh installation example Close-up view of wire rope mesh structure Wire rope mesh application in animal enclosure
