Customized Size Corrosion Resistant Stainless Steel Cable Mesh with Good Load-bearing Capacity for Architectural Applications

Customized Size Corrosion Resistant Stainless Steel Cable Mesh with Good Load-bearing Capacity for Architectural Applications
Customized Size Corrosion Resistant Stainless Steel Cable Mesh with Good Load-bearing Capacity for Architectural Applications
Customized Size Corrosion Resistant Stainless Steel Cable Mesh with Good Load-bearing Capacity for Architectural Applications Customized Size Corrosion Resistant Stainless Steel Cable Mesh with Good Load-bearing Capacity for Architectural Applications
Basic Information
Place of Origin: China
Brand Name: YUNTONG
Certification: CE
Model Number: YT-F2080
Minimum Order Quantity: 5
Price: USD 5-25/m2
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 8000m2/week
Contact Now
Material: SUS 304 SUS 316 Length: Customized
Wire Diameter: 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm Size Of Hole: 25*25mm-300*300mm
Characteristic: Anti-corrosion Non-rusting Anti Acid And Alkali Application: Protective, Fall Prevention
Height: Customized Weave Style: Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
Highlight:

Customized Size Wire Rope Mesh

,

Corrosion Resistant Stainless Steel Cable Mesh

,

Good Load-bearing Capacity Architectural Wire Mesh

Building Facade Inox Architectural Wire Rope Mesh Netting with Good Load-bearing Capacity
Architectural wire rope mesh netting designed for superior load-bearing capacity in various architectural applications.
Product Specifications
  • Material: SS304, SS316
  • Mesh Type: Woven, Ferrule mesh
  • Cable Structures: 7x7, 7x19
  • Wire Diameter: 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm, etc.
  • Mesh Aperture: 25×25mm - 300×300mm, etc.
  • Height: 0.5-30 meters (standard) or customized
  • Length: 0.5-30 meters (standard) or customized
  • Shape: Irregular shapes, triangle, parallelogram, trapezoid, etc.

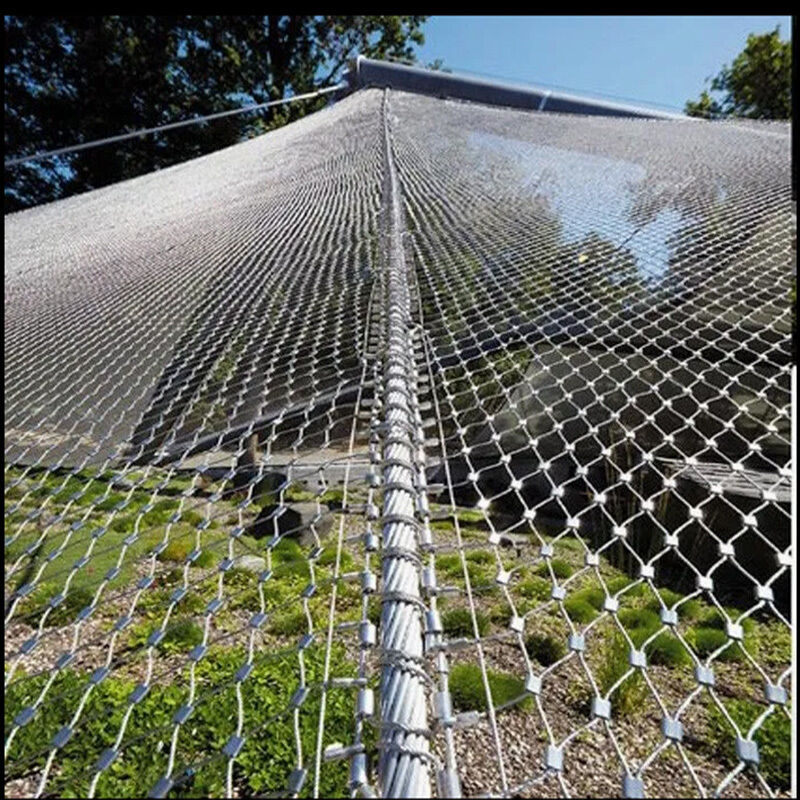

Architectural wire rope mesh netting installation example
Technical Specifications
Mesh Aperture Wire Diameter 1.2 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
20 x 35 mm4/5×1.39"YT1220
25.4 x 44 mm1×1.73"YT1225YT1525
35 x 61 mm1.37×24"YT1235YT1535YT2035
38 x 65.8 mm1-1/2×2.6"YT1235YT1538YT2038YT3038
51 x 88.3 mm2×3.46"YT1251YT1551YT2051YT3051YT4051
60 x 105 mm2.4×4.16"YT1260YT1560YT2060YT3060YT4060
76 x 131.6 mm3×5.2"YT1276YT1576YT2076YT3076YT4076
90 x 156 mm3.5×6.15"YT1290YT1576YT2090YT3090YT4090
102 x 176.7 mm4×6.9"YT20100YT15100YT20100YT30100YT40100
120 x 210 mm4.75×8.23"YT12120YT15120YT20120YT30120YT40120
160 x 280 mm6.3 x 11"YT12160YT15160YT20160YT30160YT40160
180 x 315 mm7.08 x 12.4"YT12180YT15180YT20180YT30180YT40180
200 x 350 mm7.87 x 13.78"YT12200YT15200YT20200YT30200YT40200
250 x 450 mm9.84 x 17.7"YT12250YT15250YT20250YT30250YT40250
300 x 525 mm11.8 x 20.67"YT12300YT15300YT20300YT30300YT40300
Stainless steel wire rope mesh technical diagram
Stainless steel wire rope fence mesh is also known as safety netting system. It is widely used in slope reinforcement. The system, mainly made up of wire, enjoys the basic functions to cover (initiative protection) and intercept (passive protection) so as to defend various geological disasters.
Wire rope mesh safety applications
Applications
Widely used in: Stainless Steel Garden Trellis, Plant Trellis, Flex Mesh Green Wall, Stainless Steel Fencing, ceilings, banister fillings, stair protections, mesh fence and so on.
Architectural wire rope mesh applications
Product Advantages
  • Soft to the touch, can't hurt hands
  • Light weight but strong
  • Life span more than 30 years
  • Environmental degradation resistant (corrosion, ultraviolet)
  • Excellent flexibility for tough installations
Wire rope mesh product advantages demonstration
Accessories
Wire rope mesh accessories and components
Packing and Delivery
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to-Door or by sea
Wire rope mesh packaging and shipping
About Our Company
Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Located in the native land of wire mesh in China.
Main Products: Various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh, metal curtain, aluminum decorative mesh.
Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.
Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.
Anping Yuntong Metal Wire Mesh Company overview
Our Factory
Anping Yuntong manufacturing facility
