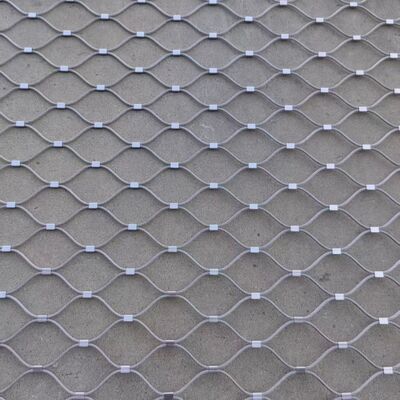

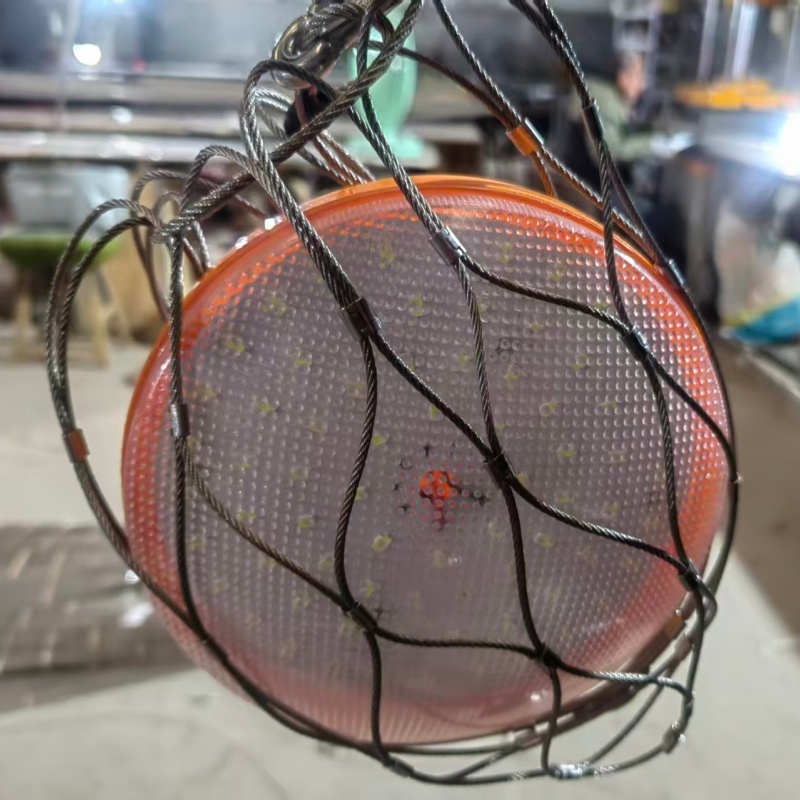

Name: SS 316 Stainless Steel Wire Rope Fall Safety Nets for Floodlight LED Light
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: YT-B-O
Price: 35.00 USD
Availability: InStock

SS 316 Stainless Steel Wire Rope Fall Safety Nets for Floodlight LED Light

Basic Information

Place of Origin:	Hebei
Brand Name:	Yuntong
Certification:	CE , SGS
Model Number:	YT-B-O

Minimum Order Quantity:	10 Sqm
Price:	20-50 USD
Packaging Details:	Carton Box or Wooden Case
Delivery Time:	5-8 Work Days
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	300Sqm/Week

Contact Now

Name:

Stainless Steel Wire Rope Fall Safety Nets

Key Word:

Safety Net

Wire Rope:

1.2 Mm To 4.0 Mm

Rope Constructions:

7 X 7 , 7 X 19

Material:

Stainless Steel Wire Rope

Finished:

Black Oxide

Mesh Angle:

60°IN RHOMBUS

Sheet Size:

Custom-made

Mesh Type:

Ferruled And Knotted

Highlight:

SS 316 stainless steel wire rope

wire rope mesh for floodlight

fall safety nets LED light

SS 316 Stainless Steel Wire Rope Fall Safety Nets for Floodlight LED Light

The flexible Stainless Steel Wire Rope Fall Safety Nets is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.

As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out.including: balustrade infill, animal enclosures, art forms, plant supports, safety nets, fencing and aviaries.

Black Oxide Rope Mesh Specification :

Hole Size	1.2MM(3/64)	1.6MM(1/16)	2.0MM(5/64)	2.4MM(3/32)	3.2MM(1/8)
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

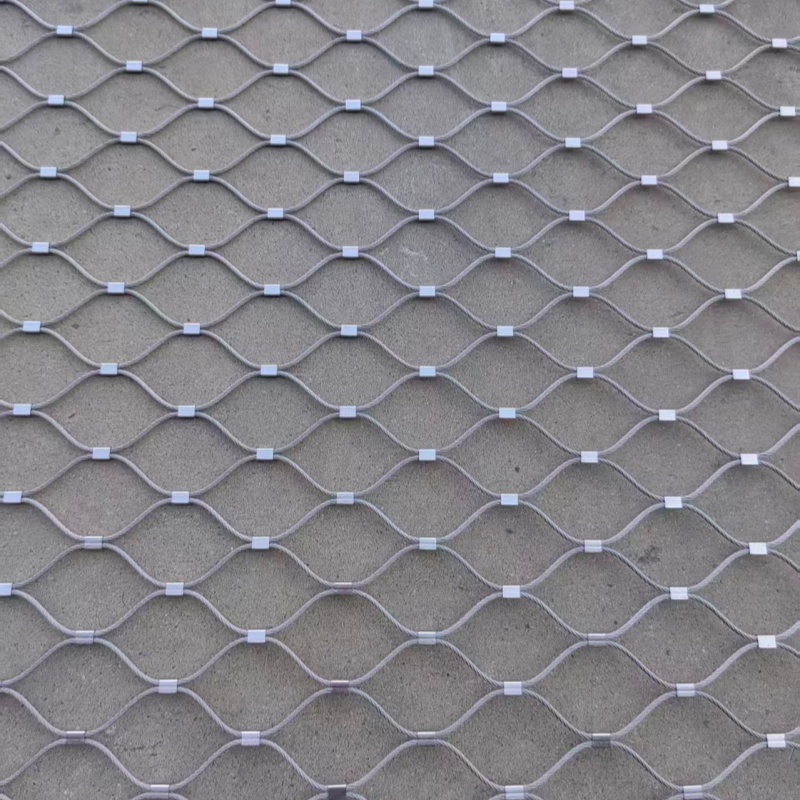

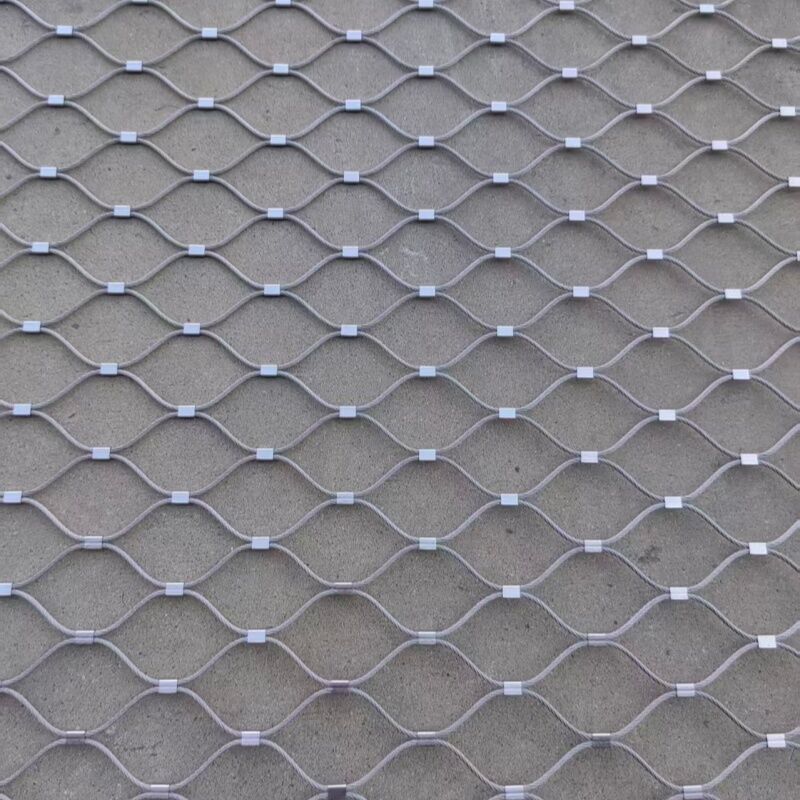

Finished diamond mesh style when it is stretched at 60 degree angle ;

Mesh can be applied in either a vertical or horizontal direction, again dependent on the design ;

Mesh sizes range from 20mm to 120mm or bigger with stainless cable diameters from 1.2mm to 4.0 mm.

SS 316 Stainless Steel Wire Rope Fall Safety Nets for Floodlight LED Light 0

Stainless Steel Wire Rope Fall Safety Nets Details

Mesh Type	Ferruled or Knotted
Mesh Angle	60 degree in rhombus shape
Mesh Orientation	Horizontal or Vertical
Panle Measurement	Custom-made in width and lenght
Finished	Black Oxide
Application	Balustrade , Facade Cladding , Animal Enclosure , Aviary Netting

RFQ Of Stainless Steel Wire Rope Fall Safety Nets :

1. Advantage of Wire Rope Net

Unique design. 3D-structure, Flexible, Light weight, . Corrosion resistant, Maintenaance free. 10 years rust guaranteed.

2. 304 or 316 stainless steel?

- Generally the 304 stainless steel is cheaper than 316 stainless steel, to flexible wire rope mesh, the main cost is process cost, so the cost of mesh between 304 and 316 almost same. we suggest to choose 316 stainless steel.

3. What is the different with cable and opening ?

- The heavier cable or smaller opening, the cost more expensive.

4. Is it safety ?

- Full mesh meet test under EN1263.1.2014

5. How to install the mesh !

- Full of our piece is manufactured with special edge design. install by yourself easily.

SS 316 Stainless Steel Wire Rope Fall Safety Nets for Floodlight LED Light 1
