Name: X-Type Stainless Steel Wire Cable Rope Mesh Balustrade Protective
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: 5
Price: 35.00 USD
Availability: InStock

X-Type Stainless Steel Wire Cable Rope Mesh Balustrade Protective

Basic Information

Place of Origin:	China
Brand Name:	yuntong
Certification:	CE
Model Number:	5

Minimum Order Quantity:	10 sqm
Price:	20-50 USD
Packaging Details:	wooden case
Supply Ability:	8000 sqm/ week

Contact Now

Surface Treatment:

Polishing

Material:

Stainless Steel

Material:

SUS304

Wire Diameter:

1.2mm-6.0mm

Color:

Silver

Aperture Size:

20mm-300mm

Corrosion Resistance:

Excellent

Application:

Zoo, Aviary, Balcony,Fence, Surface Plant Climbing Net, Etc.

Highlight:

stainless steel wire rope mesh

protective cable rope balustrade

X-Type wire mesh balustrade

X-Type Stainless Steel Wire Cable Rope Mesh Balustrade Protective

Product Description

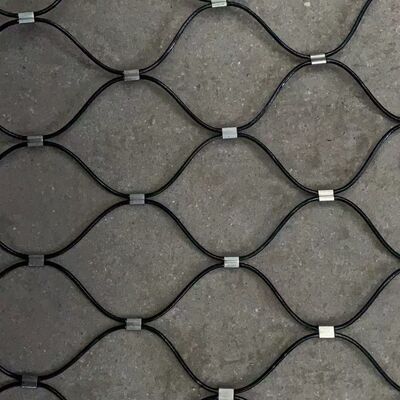

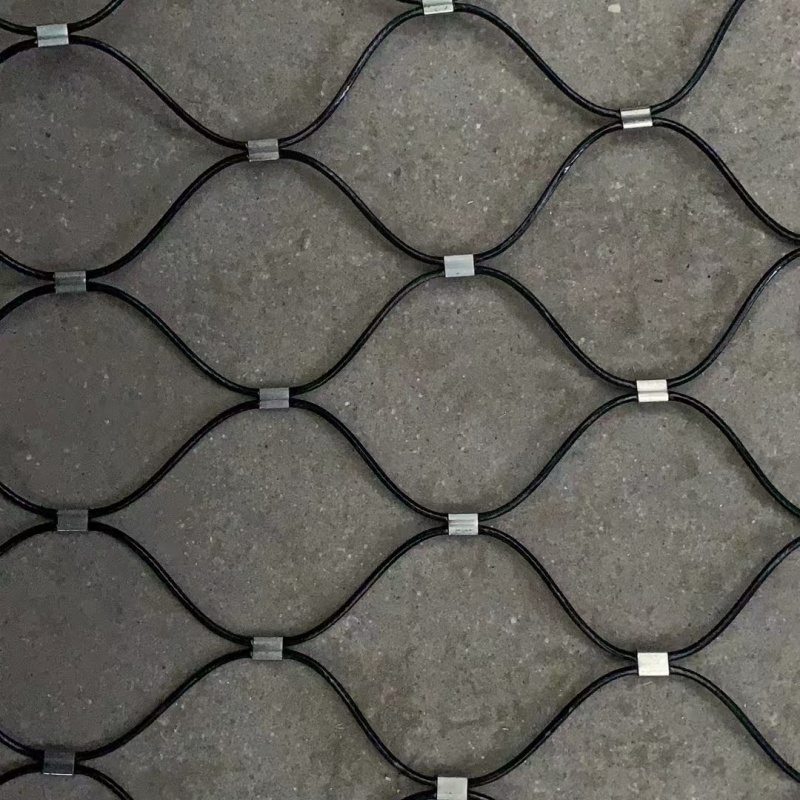

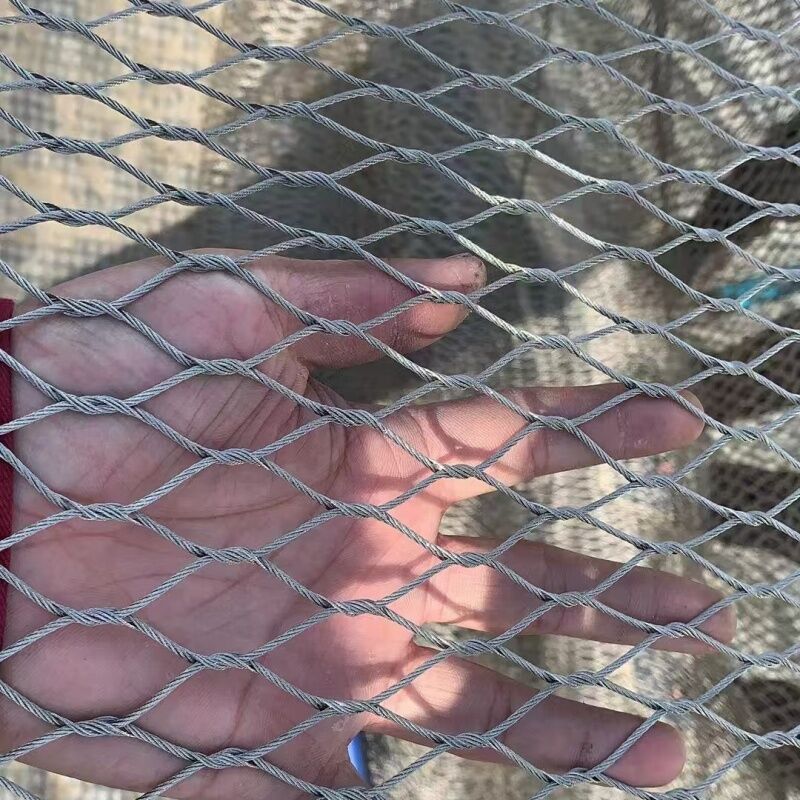

Stainless Steel Wire Cable Rope Mesh is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not need to be installed under tension. Available in sizes from 25×25mm (1"×1") to 125×125mm (5"×5"), with wire diameters from 1.2mm to 3.2mm (3/64" to 1/8") in type 304 stainless steel. The hand-woven netting is manufactured in 7×7 construction to your specifications.

Key Features

Netting securely clipped to the cable
Customizable mesh size and diameter
Available in custom orders with static testing capability
High strength with excellent toughness, allowing free-angle bending and folding
Anti-corrosive properties for rust resistance and repeated use
Resistant to chewing by rodents and pests (tensile strength approximately 100-110,000 PSI)
Capable of withstanding heavy snow loads and strong winds
Non-toxic, safe, and environmentally friendly material

Technical Specifications of Stainless Steel Wire Cable Rope Mesh

Item No.	Cable Diameter	Mesh Opening Size	Normal Break
YT-3212W	1/8" (3.2mm)	4.75"×4.75" (120×120mm)	1,600 lbs
YT-3210W	1/8" (3.2mm)	4"×4" (102×102mm)	1,600 lbs
YT-3290W	1/8" (3.2mm)	3.55"×3.55" (90×90mm)	1,600 lbs
YT-3276W	1/8" (3.2mm)	3"×3" (76×76mm)	1,600 lbs
YT-3250W	1/8" (3.2mm)	2"×2" (51×51mm)	1,600 lbs
YT-2410W	3/32" (2.4mm)	4"×4" (102×102mm)	920 lbs
YT-2490W	3/32" (2.4mm)	3.55"×3.55" (90×90mm)	920 lbs
YT-2476W	3/32" (2.4mm)	3"×3" (76×76mm)	920 lbs
YT-2460W	3/32" (2.4mm)	2.4"×2.4" (60×60mm)	920 lbs
YT-2450W	3/32" (2.4mm)	2"×2" (51×51mm)	920 lbs

Applications

Wildlife Enclosures: Secure containment for animals while keeping predators out
Aquariums: Safe environment for aquatic life with net-tight construction
Sports Facilities: Durable mesh for tennis courts, football pitches, and golf courses
Construction Sites: Safety barrier to protect workers and prevent falling debris
Playgrounds: Secure barrier to protect children during play
Gardens: Protection against unwanted pests and animals

Customization Options

Custom wire rope, hole size, and measurements available upon request.

Packaging & Shipping

Packaged in paper cartons or wooden cases. Shipping available via FedEx, DHL, UPS, TNT EMS, air freight, or sea transport.
