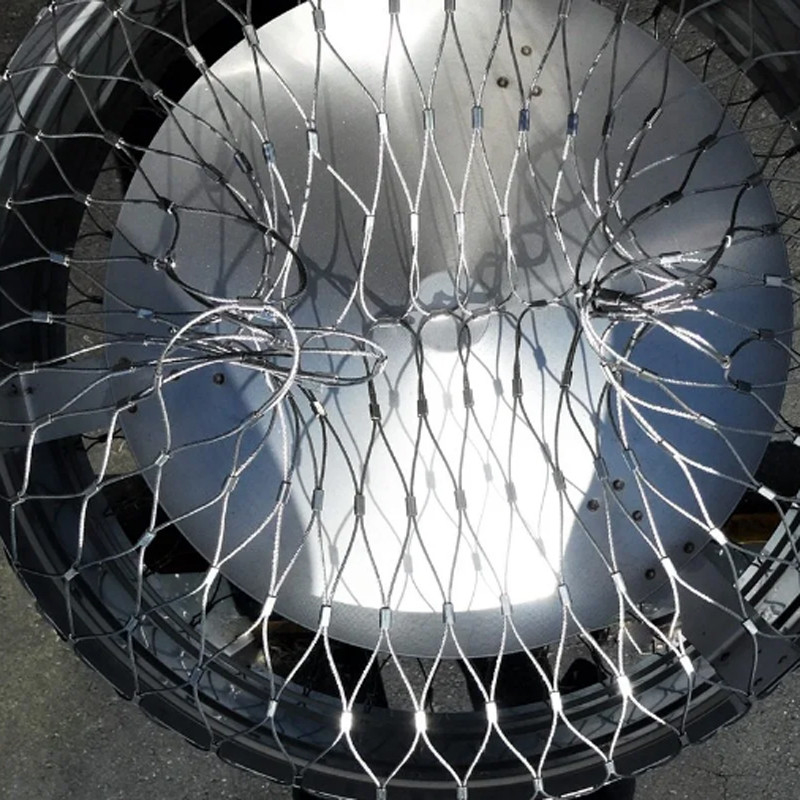

316 Stainless Steel Cable Safety Net Crane Floodlights Drop Preventing Net

316 Stainless Steel Cable Safety Net Crane Floodlights Drop Preventing Net

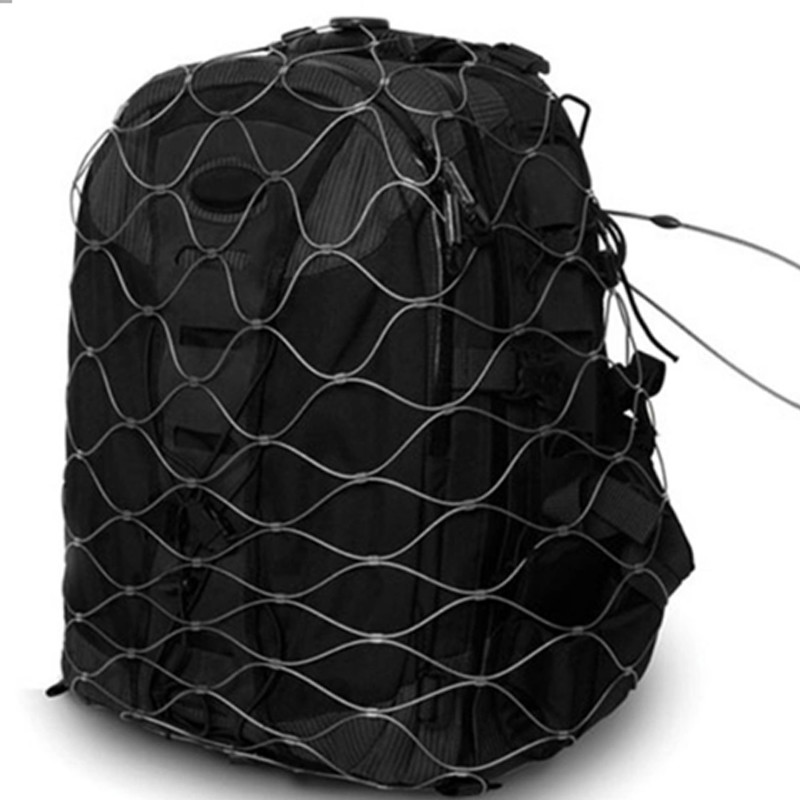

Stainless steel wire rope wove mesh,in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.

Flexible Stainless Steel Wire Rope Mesh(Inter-woven Type)
Item No.s	Cable Diameter		Mesh Opening Size (W×H)		Normal Break
	inch	mm	inch	mm	ibs.
YT-3212W	1/8	3.2	4.75×4.75	120×120	1,600
YT-3210W	1/8	3.2	4×4	102×102	1,600
YT-3290W	1/8	3.2	3.55×3.55	90×90	1,600
YT-3276W	1/8	3.2	3×3	76×76	1,600
YT-3250W	1/8	3.2	2×2	51×51	1,600
YT-2410W	3/32	2.4	4×4	102×102	920
YT-2490W	3/32	2.4	3.55×3.55	90×90	920
YT-2476W	3/32	2.4	3×3	76×76	920
YT-2460W	3/32	2.4	2.4×2.4	60×60	920
YT-2450W	3/32	2.4	2×2	51×51	920
YT-2076W	5/64	2.0	3×3	76×76	676
YT-2060W	5/64	2.0	2.4×2.4	60×60	676
YT-2050W	5/64	2.0	2	51×51	676
YT-2038W	5/64	2.0	1-1/2×1-1/2	38×38	676
YT-1676W	1/16	1.6	3×3	76×76	480
YT-1650W	1/16	1.6	2×2	51×51	480
YT-1638W	1/16	1.6	1-1/2×1-1/2	38×38	480
YT-1630W	1/16	1.6	1.2×1.2	30×30	480
YT-1625W	1/16	1.6	1×1	25.4×25.4	480
YT-1238W	3/64	1.2	1-1/2×1-1/2	38×38	270
YT-1230W	3/64	1.2	1.2×1.2	30×30	270
YT-1225W	3/64	1.2	1×1	25.4×25.4	270
YT-1220W	3/64	1.2	4/5×4/5	20×20	270

(1)  Mesh type: 1.Woven 2. Ferrule mesh

(2) cable structures:7 x7, 7 x19

Stainless steel wire rope wove  mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

2 . Packing and Delivery:

Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

3. Application:  It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
