Name: 2.0mm Stainless Steel Wire Rope Cable Preventing Safety Net
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: YT--F-F
Price: 22.00 USD
Availability: InStock

2.0mm Stainless Steel Wire Rope Cable Preventing Safety Net

Loading zoom

Basic Information

Place of Origin:	Hebei
Brand Name:	Yuntong
Certification:	CE , SGS
Model Number:	YT--F-F

Minimum Order Quantity:	10 Sqm
Packaging Details:	Package film for each piece,Several pieces packed in 1 carton
Delivery Time:	5-8 Work Days
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	300Sqm/Week

Chat Now

Material:

AISI316 , AISI316L

Wire Rope:

1.2 Mm To 4.0 Mm

Rope Constructions:

7 X 7 , 7 X 19 , 1 X 19

Mesh Type:

Ferruled Or Knotted

Finished:

Ultrasonic Bath ,Black Oxide

Product Name:

Wire Rope Mesh Netting

Mesh Angle:

60 Degree

Mesh Shape:

Rhombus , Diamond

Mesh Orientation:

Horizontal , Vertical

Highlight:

2.0mm stainless steel wire rope mesh

stainless steel wire rope mesh 2.0mm

Preventing Safety stainless steel cable mesh

2.0mm Stainless Steel Wire Rope Cable Preventing Safety Net

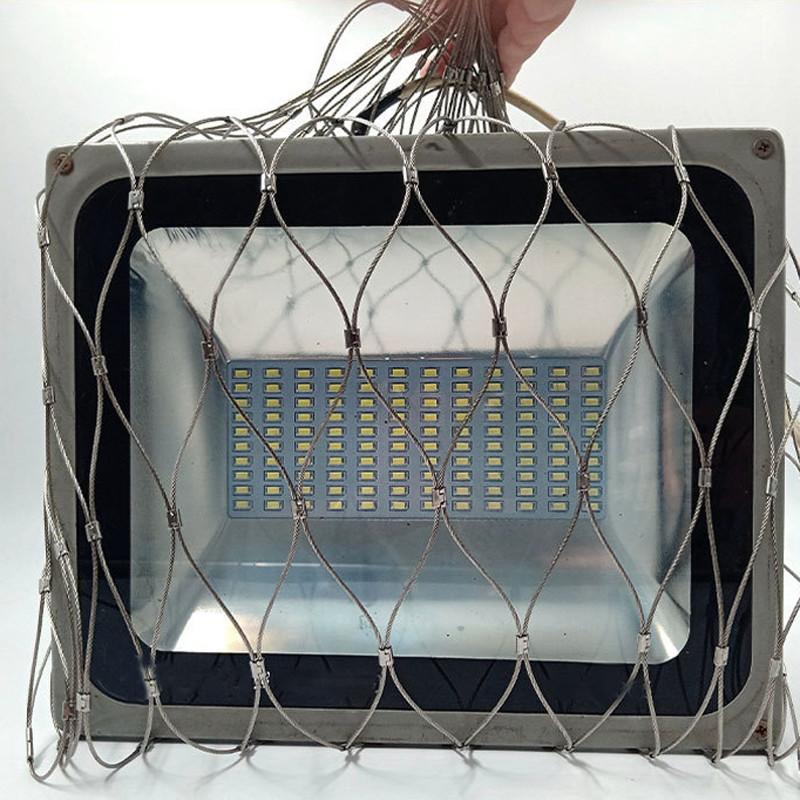

Finished diamond mesh style when it is stretched at 60 degree angle ;

Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.

Our services range from ferruled wire rope mesh , knotted wire rope mesh to various installation's accessories .A lso we can provide black oxide wire rope mesh .

Customized flexible stainless steel cable mesh,wire rope mesh for building facade systems, green wall systems. railing & balustrade systems. safety nets. enclosure for animal in zoo.

Wire Rope Mesh Specifications Sheet :

Hole Size (Opening)	1.2MM(3/64) (7 x 7 )	1.6MM(1/16) (7 x 7 )	2.0MM(5/64) (7 x 7 )	2.4MM(3/32) (7 x 7 )	3.2MM(1/8) (7 x 19 )
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

Stainless steel ferruled wire rope mesh:

1. Material is high quality stainless steel rope and stainless steel clips.

2. Material: high quality 304,30L,316,316L.

3. It uses in home decoration, garden, and construction line.

4. Use life more than 30 years.

5. Never rust, fatigue resistance, impact resistance, high break force, the overall structure strong with long life, wide looking, new style

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

2.0mm Stainless Steel Wire Rope Cable Preventing Safety Net 0
