Product Description:

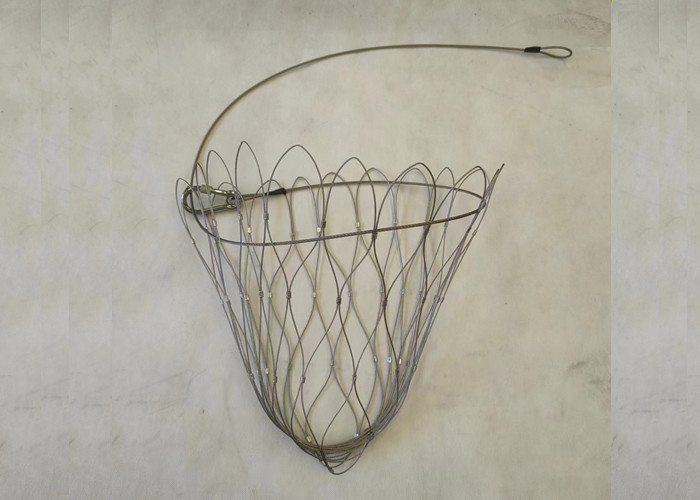

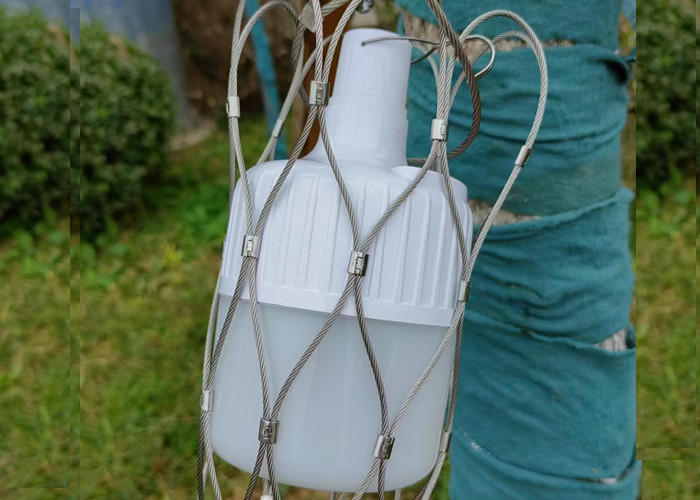

316 Safety Netting Fall Protection Cable Drop Preventing Net For Camera Anti-Drop Features:
1. The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110, 000 PSI)
7. This product can bear the heavy snow and the gale very much.
8. Without toxic material, safety, environmental protection.
Technical Parameters:
CableStructure:7x7 and 7x19
CableDiameter:1/8", 3/32", 1/16", and 3/64".
Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
| Flexible Stainless Steel Wire Rope Mesh(Inter-woven Type) |
| Item No.s |
Cable Diameter |
Mesh Opening Size
(W×H)
|
Normal Break |
| |
inch |
mm |
inch |
mm |
ibs. |
| YT-3212W |
1/8 |
3.2 |
4.75×4.75 |
120×120 |
1,600 |
| YT-3210W |
1/8 |
3.2 |
4×4 |
102×102 |
1,600 |
| YT-3290W |
1/8 |
3.2 |
3.55×3.55 |
90×90 |
1,600 |
| YT-3276W |
1/8 |
3.2 |
3×3 |
76×76 |
1,600 |
| YT-3250W |
1/8 |
3.2 |
2×2 |
51×51 |
1,600 |
| YT-2410W |
3/32 |
2.4 |
4×4 |
102×102 |
920 |
| YT-2490W |
3/32 |
2.4 |
3.55×3.55 |
90×90 |
920 |
| YT-2476W |
3/32 |
2.4 |
3×3 |
76×76 |
920 |
| YT-2460W |
3/32 |
2.4 |
2.4×2.4 |
60×60 |
920 |
| YT-2450W |
3/32 |
2.4 |
2×2 |
51×51 |
920 |
| YT-2076W |
5/64 |
2.0 |
3×3 |
76×76 |
676 |
| YT-2060W |
5/64 |
2.0 |
2.4×2.4 |
60×60 |
676 |
| YT-2050W |
5/64 |
2.0 |
2 |
51×51 |
676 |
| YT-2038W |
5/64 |
2.0 |
1-1/2×1-1/2 |
38×38 |
676 |
| YT-1676W |
1/16 |
1.6 |
3×3 |
76×76 |
480 |
| YT-1650W |
1/16 |
1.6 |
2×2 |
51×51 |
480 |
| YT-1638W |
1/16 |
1.6 |
1-1/2×1-1/2 |
38×38 |
480 |
| YT-1630W |
1/16 |
1.6 |
1.2×1.2 |
30×30 |
480 |
| YT-1625W |
1/16 |
1.6 |
1×1 |
25.4×25.4 |
480 |
| YT-1238W |
3/64 |
1.2 |
1-1/2×1-1/2 |
38×38 |
270 |
| YT-1230W |
3/64 |
1.2 |
1.2×1.2 |
30×30 |
270 |
| YT-1225W |
3/64 |
1.2 |
1×1 |
25.4×25.4 |
270 |
| YT-1220W |
3/64 |
1.2 |
4/5×4/5 |
20×20 |
270 |
Yuntong Wire Rope Mesh is a strong and durable mesh made from stainless steel. It comes in a variety of sizes, ranging from 1m x 30m or customized. It is available in silver color, with a weight that ranges from 0.35-2 Kg/ Sqm. This type of mesh has a twisted weave type, making it ideal for a variety of applications.
Customization:
rope wire, size of hole, measure can be customized.
Packing and Shipping:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
