SS304 Wire Rope Mesh Anti Drop Safety Netting For Speaker Mesh Safety Cover

Basic Information

Place of Origin:	Hebei
Brand Name:	Yuntong
Certification:	CE , SGS
Model Number:	YT--F-F

Minimum Order Quantity:	10 Sqm
Packaging Details:	Package film for each piece,Several pieces packed in 1 carton
Delivery Time:	5-8 Work Days
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	300Sqm/Week

Contact Now

Wire Rope:

1.2 Mm To 4.0 Mm

Rope Constructions:

7 X 7 , 7 X 19 , 1 X 19

Mesh Orientation:

Horizontal , Vertical

Product Name:

Inox X-tend Cable Mesh Webnet

Mesh Shape:

Rhombus , Diamond

Panel Size:

Customized In Width And Length

Material:

Stainless Steel 304 , 316 , 316L

Mesh Angle:

60 Degree

Application:

Staircase Security , Balustrade Infill , Railing Safety

Finished:

Ultrasonic Bath / Black Oxide

Highlight:

Speaker Mesh Wire Rope Mesh

Anti-Drop Wire Rope Mesh

SS304 Wire Rope Mesh

SS304 Wire Rope Mesh Anti-Drop Safety Netting For Speaker Mesh Safety Cover

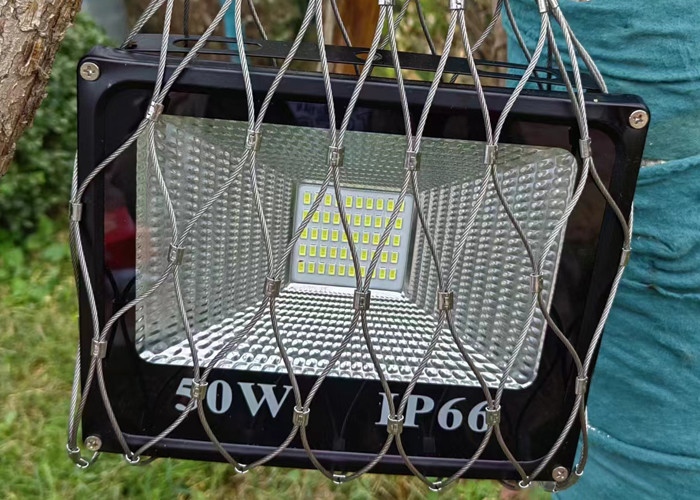

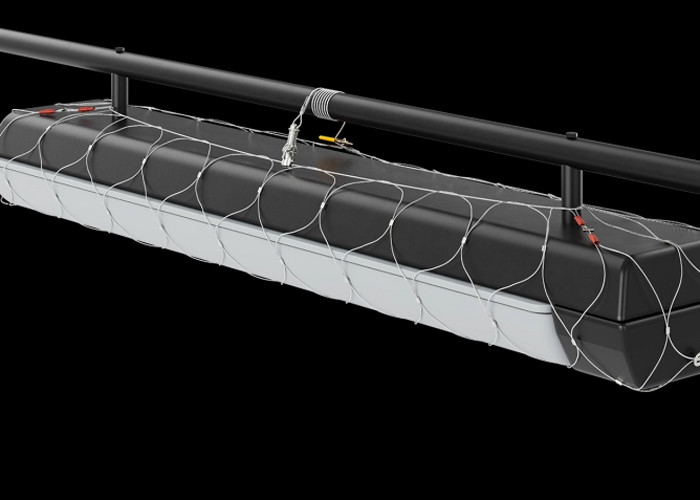

By securing overhead fixtures items at height (e.g. speakers, CCTV camera, navigation lights, flood lights or strip / TL lights, etc.) using secondary locking devices and additional securing techniques incidents are prevented and risk for dropping or falling objects is reduced significantly for people working below these items.

Hole Size (Opening)	1.2MM(3/64) (7 x 7 )	1.6MM(1/16) (7 x 7 )	2.0MM(5/64) (7 x 7 )	2.4MM(3/32) (7 x 7 )	3.2MM(1/8) (7 x 19 )
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

SS304 Wire Rope Mesh Anti Drop Safety Netting For Speaker Mesh Safety Cover 0

Stainless Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ; Helideck Perimeter Safety Net is custom manufactured to suit your balustrade, railing or architecture application ; Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design ;Diagonal and irregular shapes can also be supplied.

Material	SS304 , SS316
Rope Dia	1.2mm , 1.5mm , 1.6mm , 2.0mm , 2.5mm ,3.0mm , 4.0 mm
Hole Size	30mm, 35mm , 35mm , 38mm , 40mm ,50mm , 60mm , 75mm , 100mm etc
Mesh Type	Seamless Ferruled & Clips Ferruled
Orientation	Horizontal & Vertical
Finished	PVC Coated , Black Oxide

Cable Mesh is custom manufactured to in widths and lengths to suit your application. Finished diamond mesh style when it is stretched at 60 degree angle ; And there are two mesh types : Ferruled and Knotted ;

Ferruled Type

Knotted Type

MESH STYLES DESIGN

The following are the popular styles :

Cable Mesh has multiple applications including balustrades, safety netting, zoological enclosures, tensile facades and art installations.
