| Place of Origin: | China |
|---|---|
| Brand Name: | YUNTONG |
| Certification: | CE |
| Model Number: | YT-F 2060 |
| Minimum Order Quantity: | 5 m2 |
| Price: | USD 9-30/ m2 |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000m2/week |
| Material: | SUS 304 SUS 316 | Wire Diameter: | 1.5mm 2.0 Mm 2.5mm 3.0mm 4.0mm |
|---|---|---|---|
| Size Of Hole: | 25*25mm -300*300mm | Cable Structures: | 7*7 7*19 |
| Mesh Type: | Ferrule Mesh | Height: | Customized |
| Name: | Webnet Flexible Balustrade Architectural Wire Mesh 7*7 For Bridge Stairway | Use: | Protective, Fall Prevention |
| High Light: | 316 stainless steel ferrule rope mesh,1.5mm stainless steel ferrule rope mesh,zoo enclosure stainless steel rope mesh |
||

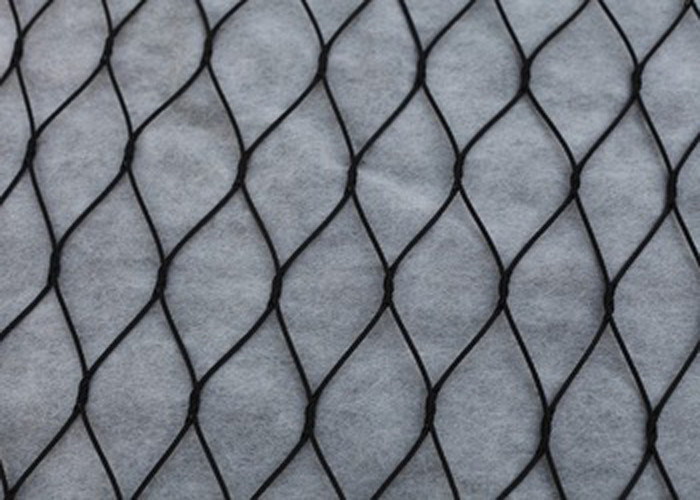

Zoo Enclosure Woven Black Flexible Rope Mesh with Stainless Steel
Stainless steel wire rope wove mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
1. The specification as follows:

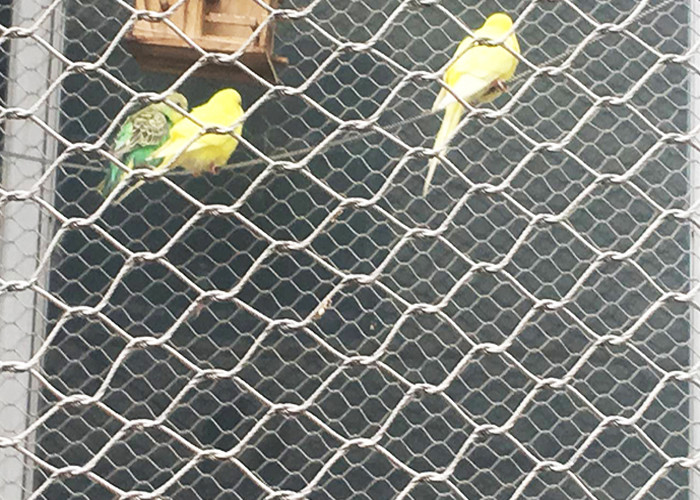

Stainless steel wire rope wove mesh,in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
Introduction of Stainless Steel Wire Rope Woven Mesh:
Material:stainless steel 304, 304L, 316, 316L(The material is imported from South Korea and Japan ).
Cable Structure:7x7 and 7x19.
Cable Diameter:1/8", 3/32", 1/16" 1/12", and 3/64"
Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4".
The specification as follows can be customized.
| Flexible Stainless Steel Wire Rope Mesh(Inter-woven Type) | |||||
| Item No.s | Cable Diameter |
Mesh Opening Size (W×H) |
Normal Break | ||
| inch | mm | inch | mm | ibs. | |
| YT-3212W | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210W | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290W | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3276W | 1/8 | 3.2 | 3×3 | 76×76 | 1,600 |
| YT-3250W | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2410W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490W | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2476W | 3/32 | 2.4 | 3×3 | 76×76 | 920 |
| YT-2460W | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2450W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2076W | 5/64 | 2.0 | 3×3 | 76×76 | 676 |
| YT-2060W | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050W | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-2038W | 5/64 | 2.0 | 1-1/2×1-1/2 | 38×38 | 676 |
| YT-1676W | 1/16 | 1.6 | 3×3 | 76×76 | 480 |
| YT-1650W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1638W | 1/16 | 1.6 | 1-1/2×1-1/2 | 38×38 | 480 |
| YT-1630W | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| YT-1238W | 3/64 | 1.2 | 1-1/2×1-1/2 | 38×38 | 270 |
| YT-1230W | 3/64 | 1.2 | 1.2×1.2 | 30×30 | 270 |
| YT-1225W | 3/64 | 1.2 | 1×1 | 25.4×25.4 | 270 |
| YT-1220W | 3/64 | 1.2 | 4/5×4/5 | 20×20 | 270 |
2. Stainless Steel Cable Mesh advantages
The Hand-Woven Mesh is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.
4. Application:
application for many field in zoo animal cages, zoo animal enclosure, zoo bird netting, zoo aviary mesh thats include: for tigers, for leopoards, for lions, for monkeys, for deers, for various kind of birds, parrots, eagles and so on.
5. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.
