Sus 304 Sus 316 Wire Rope Mesh X Tend Architectural Flexible

Basic Information
Place of Origin: China
Brand Name: YUNTONG
Certification: CE
Model Number: YT-F 2060
Minimum Order Quantity: 5 m2
Price: USD 9-30/ m2
Packaging Details: wooden case
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000m2/week
Material: SUS 304 SUS 316 Wire Diameter: 1.5mm 2.0 Mm 2.5mm 3.0mm 4.0mm
Size Of Hole: 25*25mm -300*300mm Cable Structures: 7*7 7*19
Mesh Type: Ferrule Mesh Height: Customized
Width: Custommized Use: Protective, Fall Prevention
High Light:

sus 304 wire rope mesh


flexible x tend wire rope mesh


sus 316 steel wire rope mesh

SUS 304 SUS 316 X-tend Architectural Flexible Stainless Steel Ferrule Rope Mesh


Stainless steel flexible wire rope mesh is for adopt ferruled type which is sturdy and unlimited in wide and long ;
This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle.
Material:stainless steel 304, 304L, 316, 316L

Cable Structure:7x7 and 7x19.

some specification as follows: other specification can be customized.

Flexible Stainless Steel Wire Rope Mesh(Ferrule Type)
Item No.s Cable Diameter

Mesh Opening Size


Normal Break


  inch mm inch mm ibs.
YT-3212F 1/8 3.2 4.75×4.75 120×120 1,600
YT-3210F 1/8 3.2 4×4 102×102 1,600
YT-3290F 1/8 3.2 3.55×3.55 90×90 1,600
YT-3250F 1/8 3.2 2×2 51×51 1,600
YT-2510F 3/32 2.4 4×4 102×102 920
YT-2490F 3/32 2.4 3.55×3.55 90×90 920
YT-2560F 3/32 2.4 2.4×2.4 60×60 920
YT-2550F 3/32 2.4 2×2 51×51 920
YT-2060F 5/64 2.0 2.4×2.4 60×60 676
YT-2050F 5/64 2.0 2 51×51 676
YT-1680F 1/16 1.6 3.15 80*80 480
YT-1650F 1/16 1.6 2×2 51×51 480
YT-1630F 1/16 1.6 1.2×1.2 30×30 480
YT-1625F 1/16 1.6 1×1 25.4×25.4 480

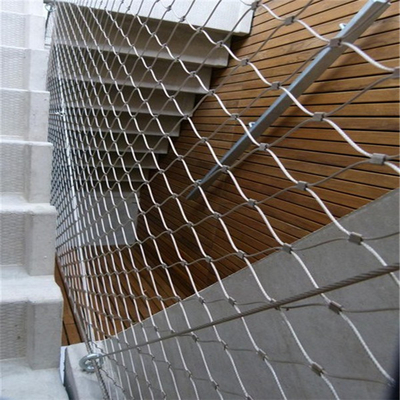

Sus 304 Sus 316 Wire Rope Mesh X Tend Architectural Flexible 0

Rope mesh as bridge network has the following characteristics:
rust and corrosion resistant
2. Light weight; flexible
High strength and strong toughness
4. Rnvironmental and Economic.

1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors
a good view of sight.
2. Flexibility: the smooth mesh surface can get in close contact with animal's fur and feather without damaging
them and meanwhile
guarantees enough tensile strength.
3. Its rust and corrosion resistant and maintenance-free features as well as ultra-long service life can provide a beautiful site and reduces the zoo's operating costs. One-time investment provides permanent use-its comprehensive profits outperform other competitive products greatly.
4. Light weight; flexible; anti-fatigue; great tensile strength; simple structure; environment friendly; non-poisonous and recyclable; easy for transportation and installation; no deformation after long-time service.


Sus 304 Sus 316 Wire Rope Mesh X Tend Architectural Flexible 1

Sus 304 Sus 316 Wire Rope Mesh X Tend Architectural Flexible 2



Sus 304 Sus 316 Wire Rope Mesh X Tend Architectural Flexible 3

Sus 304 Sus 316 Wire Rope Mesh X Tend Architectural Flexible 4

Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.


Located in the native land of wire mesh in China, Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.
