| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT--F-F |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Material: | Stainless Steel 304 , 316 , 316L | Wire Rope: | 1.2 Mm To 4.0 Mm |
|---|---|---|---|
| Rope Constructions: | 7 X 7 , 7 X 19 , 1 X 19 | Finished: | Ultrasonic Bath / Black Oxide |
| Mesh Orientation: | Horizontal , Vertical | Product Name: | Inox X-tend Cable Mesh Webnet |
| Mesh Shape: | Rhombus , Diamond | Application: | Staircase Security , Balustrade Infill , Railing Safety |
| Panel Size: | Customized In Width And Length | Mesh Angle: | 60 Degree |
| Mesh Style: | X-tend In Ferruled Type | ||
| High Light: | 7 x 7 ss rope mesh,tiger enclosure ss rope mesh,7 x 7 stainless rope mesh |
||
|

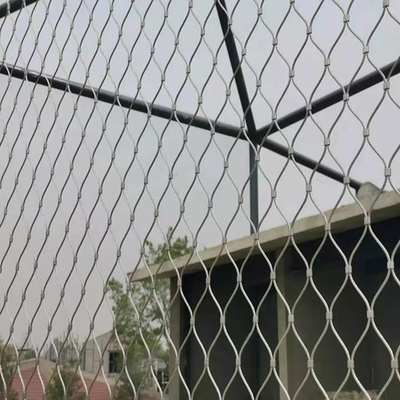

The following is the common various protection schemes and specifications for kinds tiger cage fence.Rope diameter, material and mesh aperture size can all be customized. We will produce according to your requirements.
The wire rope is smooth, protecting the fur from being damaged. We provide the regular specifications for your reference. |
||||
|
Rope Diameter
|
Mesh aperture
|
Normal Break
|
||
|
inch
|
mm
|
inch
|
mm
|
Ibs.
|
|
3/32"
|
2.4
|
2" x 2"
|
51x51
|
920
|
|
3/32"
|
2.4
|
2.4" x 2.4"
|
60x60
|
920
|
|
3/32"
|
2.4
|
3" x 3"
|
76x76
|
920
|
|
1/8
|
3.2
|
2" x 2"
|
51x51
|
1,600
|
|
1/8
|
3.2
|
2.4" x 2.4"
|
60x60
|
1,600
|
|
1/8
|
3.2
|
3" x 3"
|
76x76
|
1,600
|
|
1/8
|
3.2
|
3.6" x 3.6"
|
90x90
|
1,600
|
The application of these two types of cable mesh nets is very similar, and can be used as the zoo fence mesh, aviary mesh, safety net, and railing net.
