| Place of Origin: | China |
|---|---|
| Brand Name: | YUNTONG |
| Model Number: | YT-2080F |
| Minimum Order Quantity: | 1*1m |
| Price: | USD 11.5-15/M2 |
| Packaging Details: | Paper carton, wooden case |
| Supply Ability: | 2000 M 2/15 DAYS |
| Material: | SS 304 SS 316 | Wire Diameter: | 2.0 Mm |
|---|---|---|---|
| Mesh Aperture: | 80*80mm | Measure: | Customized |
| Application: | Protective, Fall Prevention | Characteristic: | Anti-corrosion Non-rusting Anti Acid And Alkali |
| High Light: | Falling Prevention 50x50 Wire Mesh,Stainless Steel Wire Mesh 50x50,Traffic Barrier Fence 50x50 Wire Mesh |
||

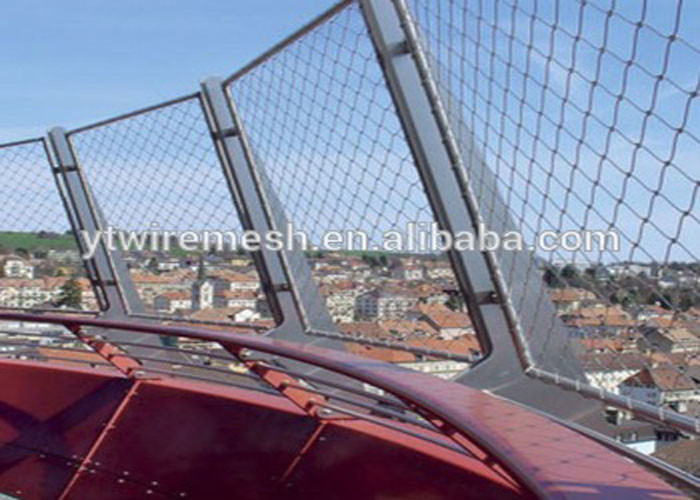

Traffic Barrier Fence Stainless Steel Cable Mesh for Falling prevention fencing Anti-corrosion non-rusting
The main product of Metal Mesh is the sleeveless stainless steel rope mesh, which can withstand more pressure than the same thickness of the sleeved steel rope mesh.
1. Stainless Steel Cable Mesh specification
Material: ss304 ss316
Various cable diameters: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm 6.0mm
Various mesh size: 25*25mm,30*30mm,35*35mm,40*40mm,50*50mm,60*60mm 100*100 200*200mm 300*300mm
or customized according customer’s requirements
Height: 0.5-50meter Length: 0.5-50meter It can be customized
Various cable structures: 7 x7, 7 x19
Mesh type: Ferrule or woven
2. Stainless steel flexible wire rope mesh adopt ferruled type which is sturdy and unlimited in wide and long ; This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;
| Flexible Stainless Steel Wire Rope Mesh(Ferrule Type) | |||||
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break
|
||
| inch | mm | inch | mm | ibs. | |
| YT-3212F | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210F | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290F | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3250F | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2510F | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2560F | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2550F | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2060F | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-1680F | 1/16 | 1.6 | 3.15 | 80*80 | 480 |
| YT-1650F | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| Stainless Steel Woven Wire Rope Mesh(Woven Type) | |||||
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break
|
||
| inch | mm | inch | mm | ibs. | |
| YT-3212W | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210W | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290W | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3250W | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2510W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490W | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2560W | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2550W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2060W | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050W | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-1680W | 1/16 | 1.6 | 3.15 | 80*80 | 480 |
| YT-1650W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1630W | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
3. Feature
Mesh can be applied in either a vertical or horizontal direction dependent the balustade or railing design ;
| 1.The netting is clipped to the cable, |
| 2. The mesh size and diameter can be modified |
| 3. It can be made to customer orders and statically tested – especially suitable for facades |
| 4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment. |
| 5. Anti-corrosive, resist the rust, can be repeated use. |
| 6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI) |
| 7.This product can bear the heavy snow and the gale very much. |
| 8. without toxic material, safety, environmental protection. |
4 . Packing and Delivery:
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.
5. Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
