| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT--F-1650 |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Carton Box , Wooden Case |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Material: | Stainless Steel 304 , 316 , 316L | Wire Rope: | 1.5mm , 1.6mm , 2.0mm |
|---|---|---|---|
| Rope Constructions: | 7 X 7 | Mesh Orientation: | Horizontal , Vertical |
| Mesh Shape: | Rhombus , Diamond | Application: | Zoo Mesh |
| Mesh Angle: | 60 Degree | Mesh Style: | Ferruled , Knotted |
| Panel Size: | Custom-Made | ||
| High Light: | stainless steel rope mesh,flexible wire netting |
||

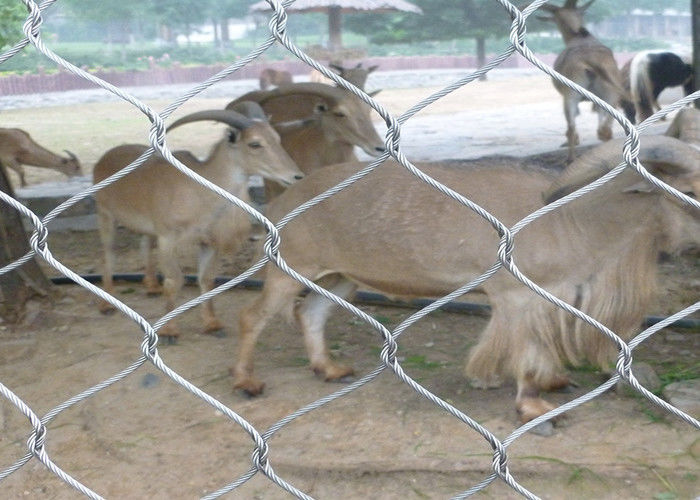

316 Material Animal Enclosure 7x19 Stainless Steel Wire Rope Zoo Mesh
Cable Mesh Webnet Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Material of Cable Webnet : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.
All of our products are made from High Grade 316 Stainless Steel, offering many advantages, including:
316 "marine grade" stainless steel
Innovative, highly durable product
Black anodised or galvanised finish options
Great prices
Professional, friendly service
Pliable, high strength mesh system
Wide range of sizes available
UV and weather resistant
Fast turnaround
