Name: Stainless Steel Wire Rope Mesh Webnet with 7 x 7, 7 x 19, and 1 x 19 Rope Constructions for Architectural and Safety Applications
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: YT--F-F
Price: 35.00 USD
Availability: InStock

Stainless Steel Wire Rope Mesh Webnet with 7 x 7, 7 x 19, and 1 x 19 Rope Constructions for Architectural and Safety Applications

Basic Information

Place of Origin:	Hebei
Brand Name:	Yuntong
Certification:	CE , SGS
Model Number:	YT--F-F

Minimum Order Quantity:	10 Sqm
Price:	20-50 USD
Packaging Details:	Package film for each piece,Several pieces packed in 1 carton
Delivery Time:	5-8 Work Days
Payment Terms:	T/T,Western Union,PayPal
Supply Ability:	300Sqm/Week

Contact Now

Material:

AISI316 , AISI316L

Wire Rope:

1.2 Mm To 4.0 Mm

Rope Constructions:

7 X 7 , 7 X 19 , 1 X 19

Mesh Type:

Ferruled Or Knotted

Finished:

Ultrasonic Bath ,Black Oxide

Product Name:

Wire Rope Mesh Netting

Mesh Angle:

60 Degree

Mesh Shape:

Rhombus , Diamond

Mesh Orientation:

Horizontal , Vertical

Highlight:

stainless steel rope mesh

flexible wire netting

X Tend Wire Rope Mesh Webnet, Stainless Steel Wire Rope Net Decoration

Stainless Steel X-Tend Cable Webnet And Wire Rope Mesh Products

Wire Rope Mesh Specifications Sheet

Hole Size (Opening)	1.2MM(3/64) (7 x 7)	1.6MM(1/16) (7 x 7)	2.0MM(5/64) (7 x 7)	2.4MM(3/32) (7 x 7)	3.2MM(1/8) (7 x 19)
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

Stainless Steel Ferruled Wire Rope Mesh Features

Material: High quality stainless steel rope and stainless steel clips
Available in 304, 304L, 316, 316L stainless steel grades
Applications: Home decoration, garden, and construction projects
Service life exceeds 30 years
Rust-resistant, fatigue-resistant, impact-resistant with high break force
Strong overall structure with long lifespan and modern aesthetic

Material Specifications

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

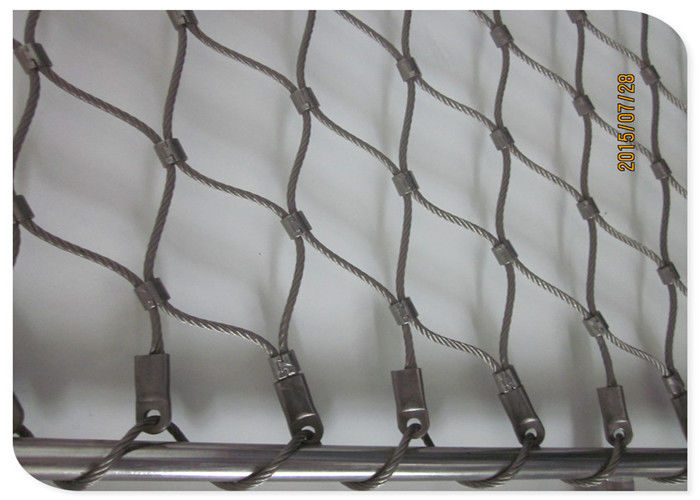

The wire rope mesh is manufactured in standard diameters from 1.0 mm to 3.2 mm. Mesh widths from 25 to 200 mm (or larger) are available depending on cable diameter. Manufactured from high-grade stainless steel cables (material class 1.4401, AISI316), with mesh connections (ferrules) available in highly aesthetic stainless steel for premium applications requiring superior corrosion resistance.

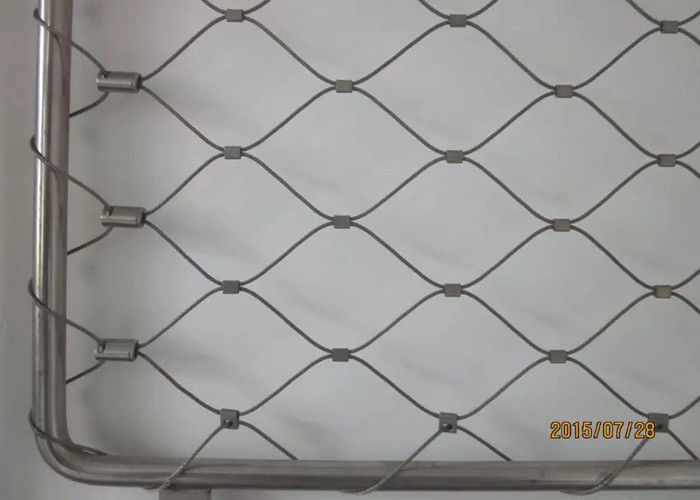

When stretched at a 60-degree angle, the mesh forms a finished diamond pattern. It can be applied in either vertical or horizontal orientation depending on balustrade/railing design requirements and aesthetic preferences.

Product Applications & Services

Our product range includes ferruled wire rope mesh, knotted wire rope mesh, and various installation accessories. We also offer black oxide wire rope mesh. Custom flexible stainless steel cable mesh solutions are available for:

Building facade systems
Green wall systems
Railing & balustrade systems
Safety nets
Animal enclosures for zoos
