| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT--F-F |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Material: | AISI316 , AISI316L | Wire Rope: | 1.2 Mm To 4.0 Mm |
|---|---|---|---|
| Rope Constructions: | 7 X 7 , 7 X 19 , 1 X 19 | Mesh Type: | Ferruled / Knotted |
| Finished: | Ultrasonic Bath / Black Oxide | Mesh Orientation: | Horizontal , Vertical |
| Product Name: | Cable Mesh Netting | Mesh Angle: | 60 Degree |
| Mesh Shape: | Rhombus , Diamond | ||
| Highlight: | stainless steel rope mesh,flexible wire netting |
||
Durable Stainless Steel Facade Decorative Wire Rope Mesh Fabric
Wire Rope Mesh Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |

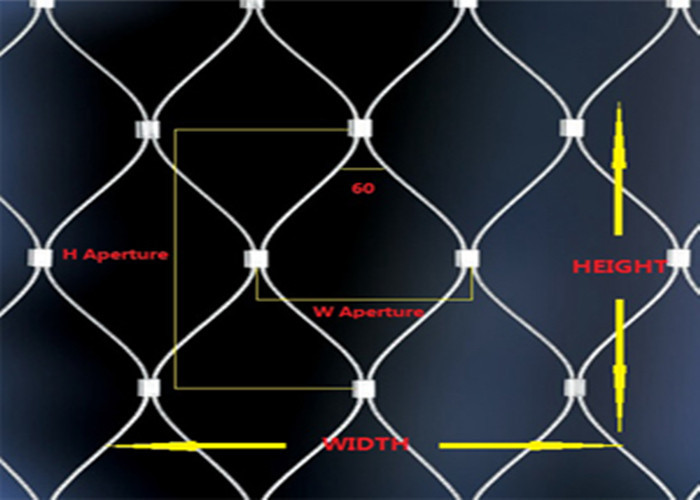

Finished diamond mesh style when it is stretched at 60 degree angle ;

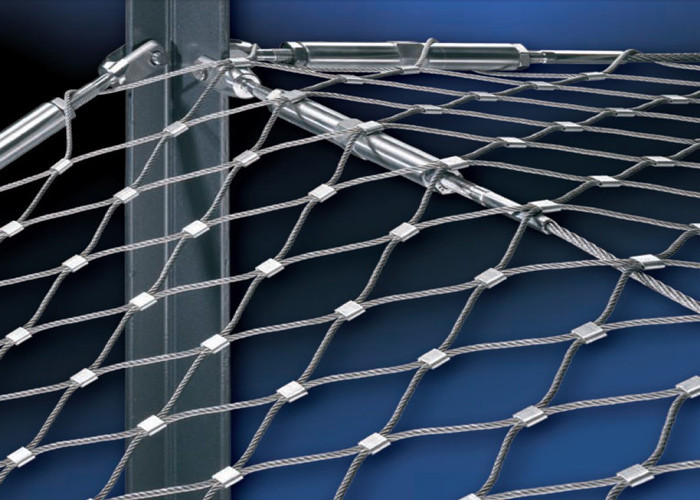

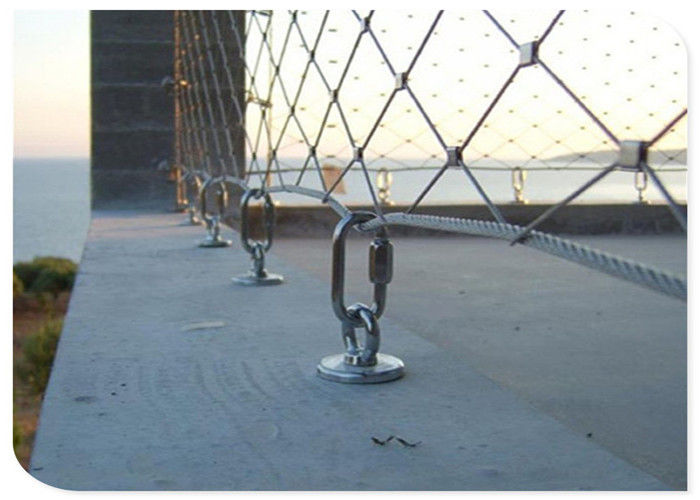

Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
The wire rope mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.
Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.

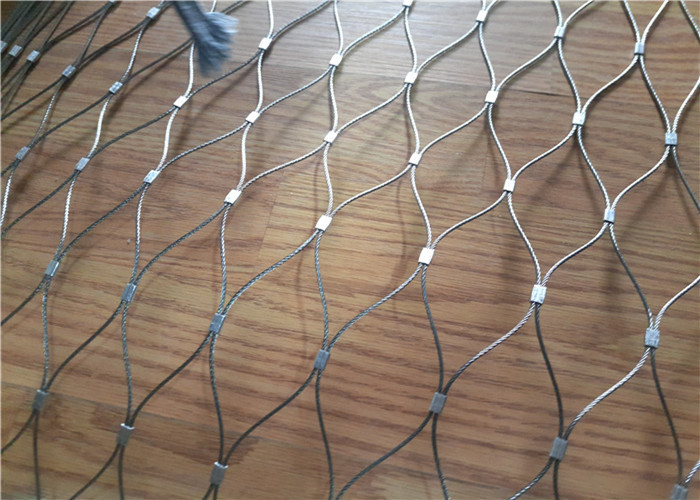

Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.
Our services range from ferruled wire rope mesh , knotted wire rope mesh to various installation's accessories. Also we can provide black oxide wire rope mesh .
