Tensile Knitted Stainless Steel Wire Rope Mesh with 60 Degree Mesh Angle for Horizontal or Vertical Orientation

Tensile Knitted Stainless Steel Wire Rope Mesh with 60 Degree Mesh Angle for Horizontal or Vertical Orientation
Tensile Knitted Stainless Steel Wire Rope Mesh with 60 Degree Mesh Angle for Horizontal or Vertical Orientation
Tensile Knitted Stainless Steel Wire Rope Mesh with 60 Degree Mesh Angle for Horizontal or Vertical Orientation Tensile Knitted Stainless Steel Wire Rope Mesh with 60 Degree Mesh Angle for Horizontal or Vertical Orientation Tensile Knitted Stainless Steel Wire Rope Mesh with 60 Degree Mesh Angle for Horizontal or Vertical Orientation
Basic Information
Place of Origin: Hebei
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT--F-F
Minimum Order Quantity: 10 Sqm
Price: 20-50 USD
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T,Western Union,PayPal
Supply Ability: 300Sqm/Week
Contact Now
Material: AISI316 , AISI316L Wire Rope: 1.2 Mm To 4.0 Mm
Rope Constructions: 7 X 7 , 7 X 19 , 1 X 19 Mesh Type: Ferruled Or Knotted
Finished: Ultrasonic Bath / Black Oxide Mesh Orientation: Horizontal , Vertical
Product Name: Wire Rope Mesh Fence Mesh Angle: 60 Degree
Highlight:

stainless steel rope mesh

,

wire rope netting

Tensile Knitted Stainless Steel Cable Netting Wire Mesh Horizontal / Vertical Orientation
New Arrival Tensile Knitted Stainless Steel Wire Rope Mesh Fence
Wire Rope Mesh Fence Specifications Sheet
Hole Size (Opening) 1.2MM(3/64) (7 x 7) 1.6MM(1/16) (7 x 7) 2.0MM(5/64) (7 x 7) 2.4MM(3/32) (7 x 7) 3.2MM(1/8) (7 x 19)
20 x 35mmYT-1235
25 x 42mmYT-1225YT-1625
30 x 52mmYT-1230YT-1630YT-2030
35 x 60mmYT-1235YT-1635YT-2035
38 x 66mmYT-1238YT-1638YT-2038YT-2438
40 x 69mmYT-1240YT-1640YT-2040YT-2440YT-3040
50 x 86mmYT-1250YT-1650YT-2050YT-2450YT-3050
60 x 104mmYT-1260YT-1660YT-2060YT-2460YT-3060
70 x 120mmYT-1270YT-1670YT-2070YT-2470YT-3070
76 x 131mmYT-1276YT-1676YT-2076YT-2476YT-3076
80 x 138mmYT-1280YT-1680YT-2080YT-2480YT-3080
90 x 154mmYT-1290YT-1690YT-2090YT-2490YT-3090
100 x 173mmYT-12100YT-16100YT-20100YT-24100YT-30100
120 x 206mmYT-12120YT-16120YT-20120YT-24120YT-30120
The wire rope mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.
Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.
Stainless Steel Ferruled Rope Mesh Features:
  • Material is high quality stainless steel rope and stainless steel clips
  • Material: high quality 304,30L,316,316L
  • Used in home decoration, garden, and construction applications
  • Service life exceeding 30 years
  • Rust-proof, fatigue resistant, impact resistant with high break force
  • Strong overall structure with long lifespan and wide visibility

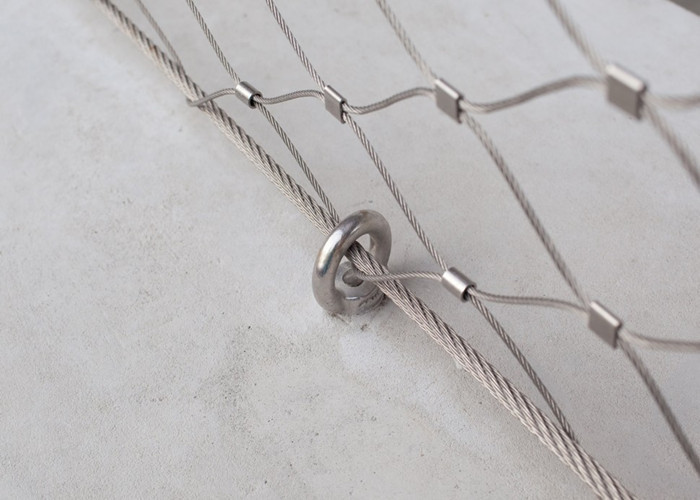

Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.

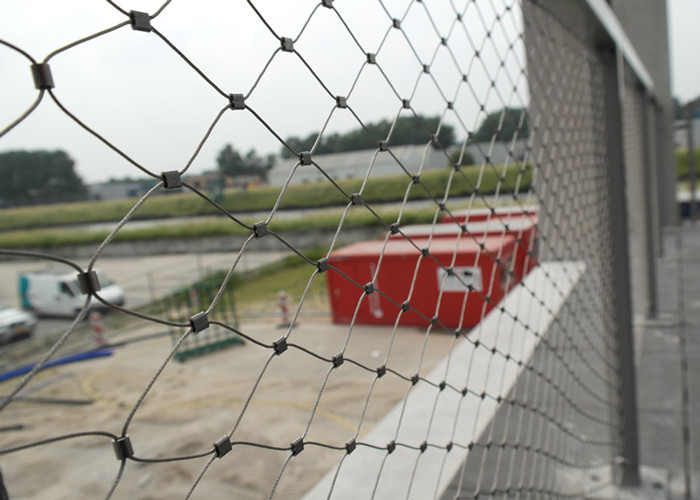

Finished diamond mesh style when stretched at 60 degree angle:
Tensile Knitted Stainless Steel Wire Rope Mesh with 60 Degree Mesh Angle for Horizontal or Vertical Orientation 0
Wire Rope Mesh Advantages:
  • Customizable mesh size and diameter
  • Can be made to customer specifications with static testing - ideal for facades
  • High strength with strong toughness, allowing free-angle curving and folding
  • Easy to transport and install
  • Corrosion resistant and rust-proof for repeated use
  • Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
  • Withstands heavy snow and strong winds
  • Non-toxic, safe, and environmentally friendly
  • Lightweight yet high-strength, rust-proof with excellent flexibility

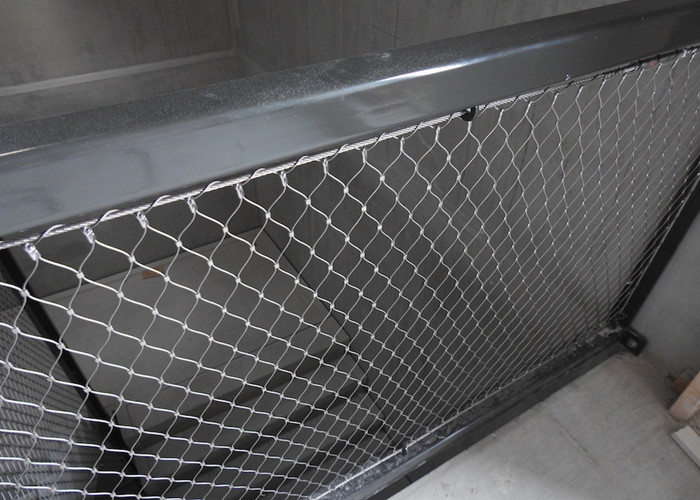

Tensile Knitted Stainless Steel Wire Rope Mesh with 60 Degree Mesh Angle for Horizontal or Vertical Orientation 1
