Tensile Knitted Stainless Steel Cable Netting Wire Mesh Horizontal / Vertical Orientation

Basic Information
Place of Origin: Hebei
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT--F-F
Minimum Order Quantity: 10 Sqm
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 300Sqm/Week
Material: AISI316 , AISI316L Wire Rope: 1.2 Mm To 4.0 Mm
Rope Constructions: 7 X 7 , 7 X 19 , 1 X 19 Mesh Type: Ferruled Or Knotted
Finished: Ultrasonic Bath / Black Oxide Mesh Orientation: Horizontal , Vertical
Product Name: Wire Rope Mesh Fence Mesh Angle: 60 Degree
High Light:

stainless steel rope mesh


wire rope netting

New Arrival Tensile Knitted Stainless Steel Wire Rope Mesh Fence


Wire Rope Mesh Fence Specifications Sheet :

Hole Size



(7 x 7 )


(7 x 7 )


(7 x 7 )


(7 x 7 )


(7 x 19 )

20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120


The wire rope mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.
Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.


Stainless steel ferruled rope mesh:

1. Material is high quality stainless steel rope and stainless steel clips.

2. Material: high quality 304,30L,316,316L.

3. It uses in home decoration, garden, and construction line.

4. Use life more than 30 years.

5. Never rust, fatigue resistance, impact resistance, high break force, the overall structure strong with long life, wide looking, new style.


Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.

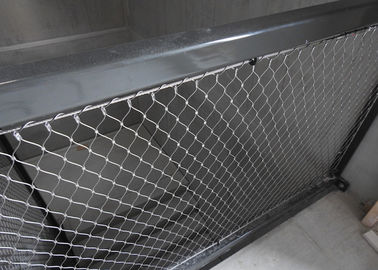

Finished diamond mesh style when it is stretched at 60 degree angle ;Tensile Knitted Stainless Steel Cable Netting Wire Mesh Horizontal / Vertical Orientation 0


Advantage :
1. The mesh size and diameter can be modified
2. It can be made according to customer orders and statically tested – especially suitable for facades
3. High strength, strong toughness, free-angles curving and fold, easy for transportation and
4. Anti-corrosive, resist the rust, can be repeated use.
5. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
6. This product can bear the heavy snow and the gale very much.
7. without toxic material, safety, environmental protection.
8. Lightweight, high-strength, never rust, softness.

Tensile Knitted Stainless Steel Cable Netting Wire Mesh Horizontal / Vertical Orientation 1
