SS 304 316 Stainless Steel Wire Ferrule Rope Mesh For Scenic Area Protection

SS 304 316 Stainless Steel Wire Ferrule Rope Mesh is hand-made from stainless steel wire rope with oxidation to black finish. Available in two types: wove type mesh and ferrule type mesh, designed specifically for scenic area protection applications.

Specifications

Material: SUS 304, SUS 316
Wire Diameter: 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm, 10mm, etc.
Mesh Aperture: 25×25mm, 30×30mm, 35×35mm, 40×40mm, 50×50mm, 60×60mm, 80×80mm, 100×100mm, 150×150mm, 200×200mm, 300×300mm or customized
Height: 0.5-30 meters
Length: 0.5-30 meters

Flexible Stainless Steel Wire Rope Mesh (Inter-woven Type)

Item No.	Cable Diameter	Mesh Opening Size	Normal Break
	inch	mm	inch	mm	lbs.
YT-3212W	1/8	3.2	4.75×4.75	120×120	1,600
YT-3210W	1/8	3.2	4×4	102×102	1,600
YT-3290W	1/8	3.2	3.55×3.55	90×90	1,600
YT-3276W	1/8	3.2	3×3	76×76	1,600
YT-3250W	1/8	3.2	2×2	51×51	1,600
YT-2410W	3/32	2.4	4×4	102×102	920
YT-2490W	3/32	2.4	3.55×3.55	90×90	920
YT-2476W	3/32	2.4	3×3	76×76	920
YT-2460W	3/32	2.4	2.4×2.4	60×60	920
YT-2450W	3/32	2.4	2×2	51×51	920
YT-2076W	5/64	2.0	3×3	76×76	676
YT-2060W	5/64	2.0	2.4×2.4	60×60	676
YT-2050W	5/64	2.0	2×2	51×51	676
YT-2038W	5/64	2.0	1-1/2×1-1/2	38×38	676
YT-1676W	1/16	1.6	3×3	76×76	480
YT-1650W	1/16	1.6	2×2	51×51	480
YT-1638W	1/16	1.6	1-1/2×1-1/2	38×38	480
YT-1630W	1/16	1.6	1.2×1.2	30×30	480
YT-1625W	1/16	1.6	1×1	25.4×25.4	480
YT-1238W	3/64	1.2	1-1/2×1-1/2	38×38	270
YT-1230W	3/64	1.2	1.2×1.2	30×30	270
YT-1225W	3/64	1.2	1×1	25.4×25.4	270
YT-1220W	3/64	1.2	4/5×4/5	20×20	270

Applications

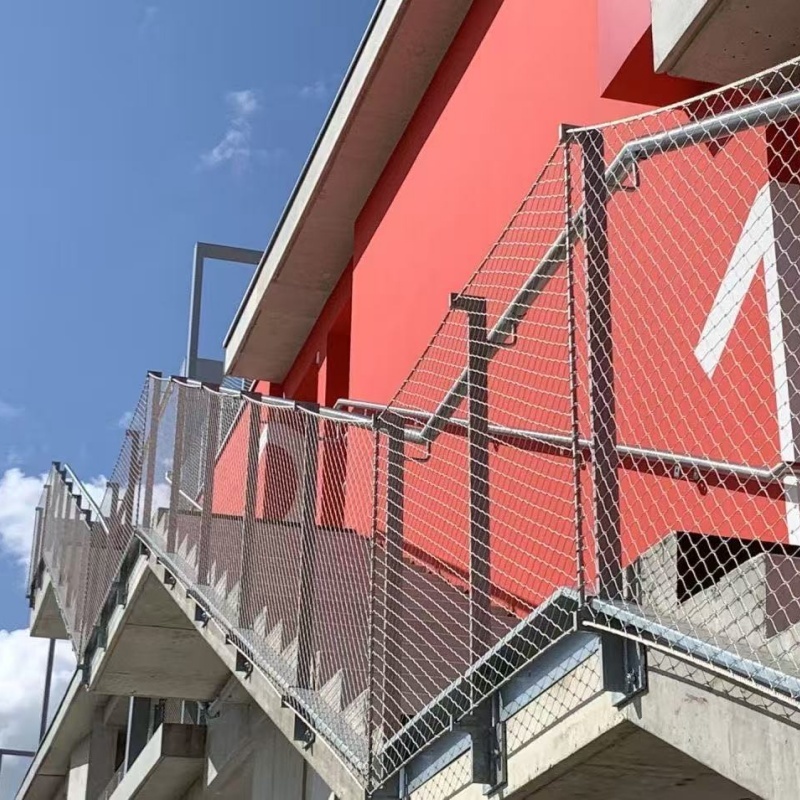

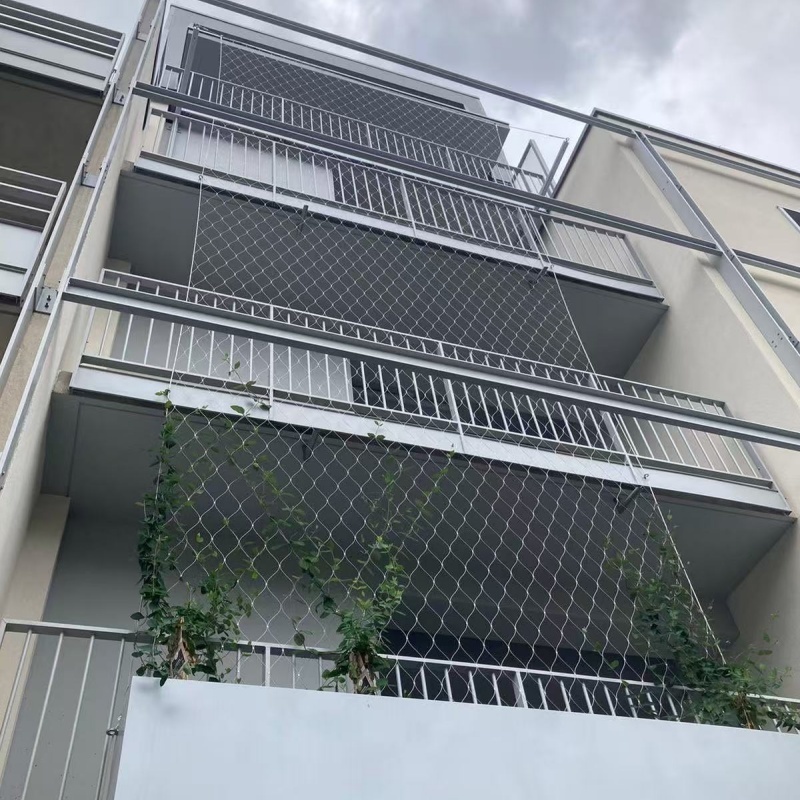

Rope Mesh applications include: parapets (for bridges or terraces), façades (as decoration and to support vegetation), fencing (yards and estates, sports fields, animal cages, shopping centers), safety netting (roofs, heliports) and unusual designs (fair stands). The cable can be colored for special projects, and the size of the mesh opening can be customized.

Product Advantages

The netting is clipped to the cable for secure installation
Mesh size and diameter can be modified to meet specific requirements
Can be made to customer orders and statically tested - especially suitable for facades
High strength, strong toughness, free-angle curving and folding, easy for transportation and installation
Anti-corrosive, resistant to rust, can be repeatedly used
Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
Can withstand heavy snow and strong winds
No toxic materials, safe and environmentally friendly

Packing and Delivery

Packing: Paper carton, wooden case
Delivery: FedEx, DHL, UPS, TNT EMS, by air, Door-to-Door, or by sea

Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Located in the native land of wire mesh in China. Our company's main products include various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh, metal curtain, and aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and gained trust from users at home and abroad.

Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.

Tag:

Place of Origin:	China
Brand Name:	YUNTONG
Certification:	CE
Model Number:	YT-F2050

Minimum Order Quantity:	5
Price:	USD 10-38/m2
Packaging Details:	wooden case
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	8000m2/week

Material:	SUS 304 SUS 316	Wire Diameter:	1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole:	2525mm-300300mm	Height:	Customized
Length:	Customized	Characteristic:	Anti-corrosion Non-rusting Anti Acid And Alkali
Application:	Protective, Fall Prevention	Weave Style:	Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
Highlight:	SUS 304/316 Stainless Steel Wire Rope Mesh , Customizable Mesh Aperture Ferrule Rope Mesh , Anti-Corrosion Wire Rope Netting
