Stainless Steel 316L X-Tend Type Wire Rope Mesh with 60 Degree Mesh Angle for Balustrade and Garden Fence

Stainless Steel 316L X-Tend Type Wire Rope Mesh with 60 Degree Mesh Angle for Balustrade and Garden Fence
Stainless Steel 316L X-Tend Type Wire Rope Mesh with 60 Degree Mesh Angle for Balustrade and Garden Fence
Stainless Steel 316L X-Tend Type Wire Rope Mesh with 60 Degree Mesh Angle for Balustrade and Garden Fence Stainless Steel 316L X-Tend Type Wire Rope Mesh with 60 Degree Mesh Angle for Balustrade and Garden Fence
Basic Information
Place of Origin: Hebei
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT--F-F
Minimum Order Quantity: 10 Sqm
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T,Western Union,PayPal
Supply Ability: 300Sqm/Week
Contact Now
Name: Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence Wire Rope: 1.2 Mm To 4.0 Mm
Finished: Black Oxide Rope Constructions: 7 X 7 , 7 X 19 , 1 X 19
Mesh Orientation: Horizontal , Vertical Material: Stainless Steel 304 , 316 , 316L
Mesh Shape: Rhombus , Diamond Application: Animal Enclosure , Aviary Netting , Garden Fence , Etc
Mesh Angle: 60 Degree Mesh Style: X-tend Type
Highlight:

Stainless Steel 316L Wire Rope Mesh

,

X-Tend Type Wire Rope Mesh

,

60 Degree Mesh Angle Cable Mesh

X-Type Stainless Steel Wire Flexible Cable Rope Infill Balustrade Protective Net
X-Type Stainless Steel Wire Flexible Cable Rope Infill Balustrade Protective Net provides excellent ventilation while maintaining structural integrity. This versatile mesh system withstands heavy loads and is widely used in balustrade infill systems, zoo enclosures, tensile facades, safety netting, and green wall applications.
Product Specifications
Name
Black Oxide 316L Stainless Steel Wire Rope Woven Garden Fence
Wire Rope
1.2 mm to 4.0 mm
Finished
Black Oxide
Rope Constructions
7 x 7, 7 x 19, 1 x 19
Mesh Orientation
Horizontal, Vertical
Material
Stainless Steel 304, 316, 316L
Mesh Shape
Rhombus, Diamond
Application
Animal Enclosure, Aviary Netting, Garden Fence, Etc
Mesh Angle
60 degree
Mesh Style
X-tend Type
Wire Rope Mesh Specifications
Hole Size (Opening) 1.2MM(3/64) (7 x 7) 1.6MM(1/16) (7 x 7) 2.0MM(5/64) (7 x 7) 2.4MM(3/32) (7 x 7) 3.2MM(1/8) (7 x 19)
20 x 35mmYT-1235
25 x 42mmYT-1225YT-1625
30 x 52mmYT-1230YT-1630YT-2030
35 x 60mmYT-1235YT-1635YT-2035
38 x 66mmYT-1238YT-1638YT-2038YT-2438
40 x 69mmYT-1240YT-1640YT-2040YT-2440YT-3040
50 x 86mmYT-1250YT-1650YT-2050YT-2450YT-3050
60 x 104mmYT-1260YT-1660YT-2060YT-2460YT-3060
70 x 120mmYT-1270YT-1670YT-2070YT-2470YT-3070
76 x 131mmYT-1276YT-1676YT-2076YT-2476YT-3076
80 x 138mmYT-1280YT-1680YT-2080YT-2480YT-3080
90 x 154mmYT-1290YT-1690YT-2090YT-2490YT-3090
100 x 173mmYT-12100YT-16100YT-20100YT-24100YT-30100
120 x 206mmYT-12120YT-16120YT-20120YT-24120YT-30120
Material Composition
Material Composition (%)
SS304C:≤0.07, Si:≤1.0, Mn:≤2.0, Cr:17.0-19.0, Ni:8.0-11.0, S:≤0.03, P:≤0.035
SS316C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316LC:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0
Product Features
  • Manufactured from high-grade stainless steel cables (material class 1.4401, AISI316/AISI316L)
  • Custom manufactured to suit balustrade, railing, or architectural applications
  • Available in vertical or horizontal orientation, with diagonal and irregular shapes available
  • Features skin-like characteristics for flexible forming into various shapes
  • Lightweight, robust, and transparent design
  • High-quality stainless steel cables with pressed ferrules
  • Exceptional robustness capable of withstanding heavy loads

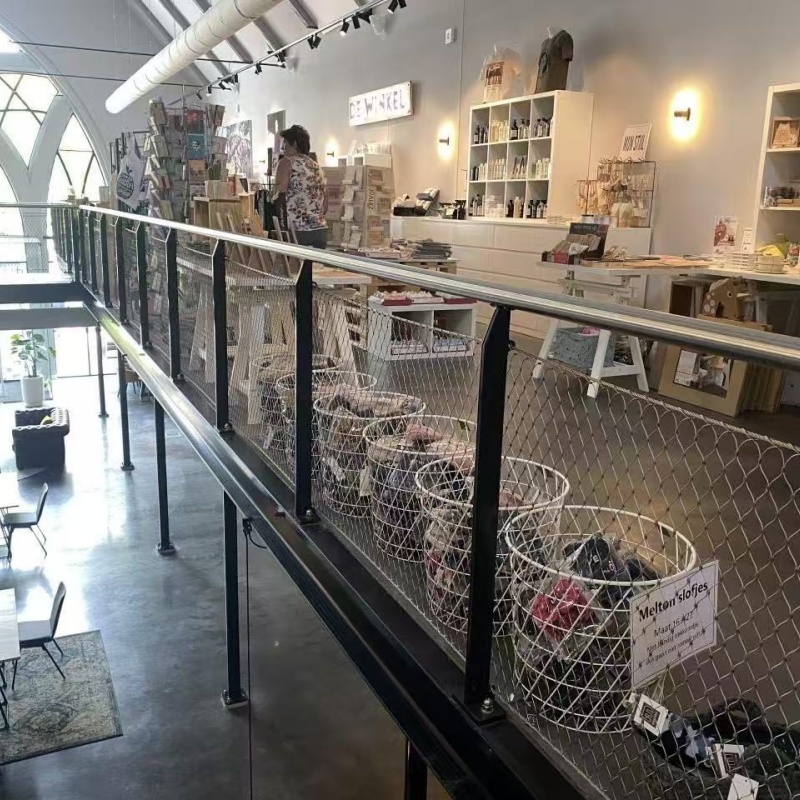

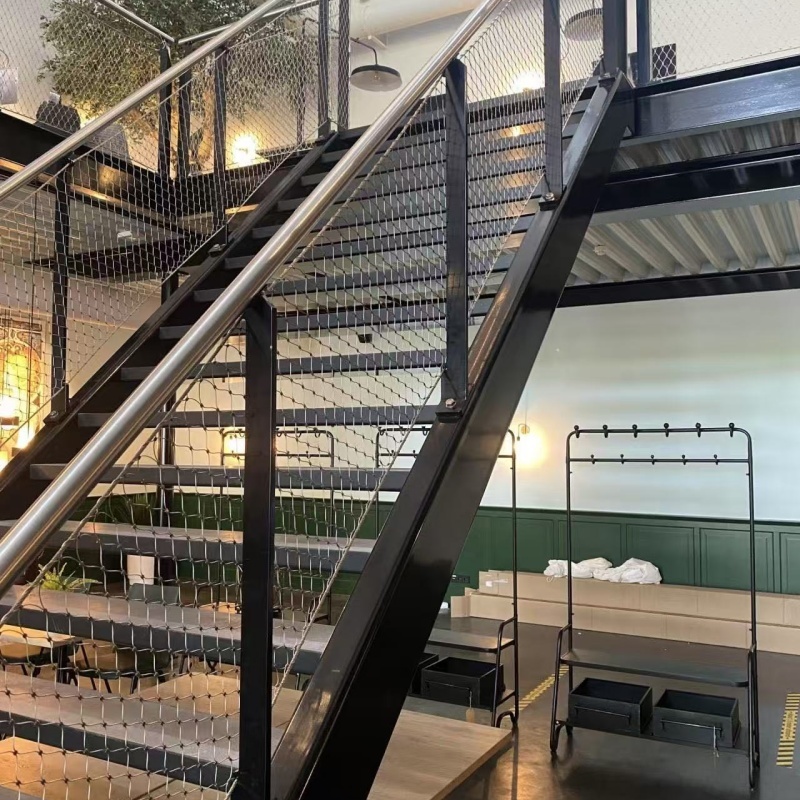

X-Type Stainless Steel Wire Rope Mesh installation showing diamond pattern and structural integrity
