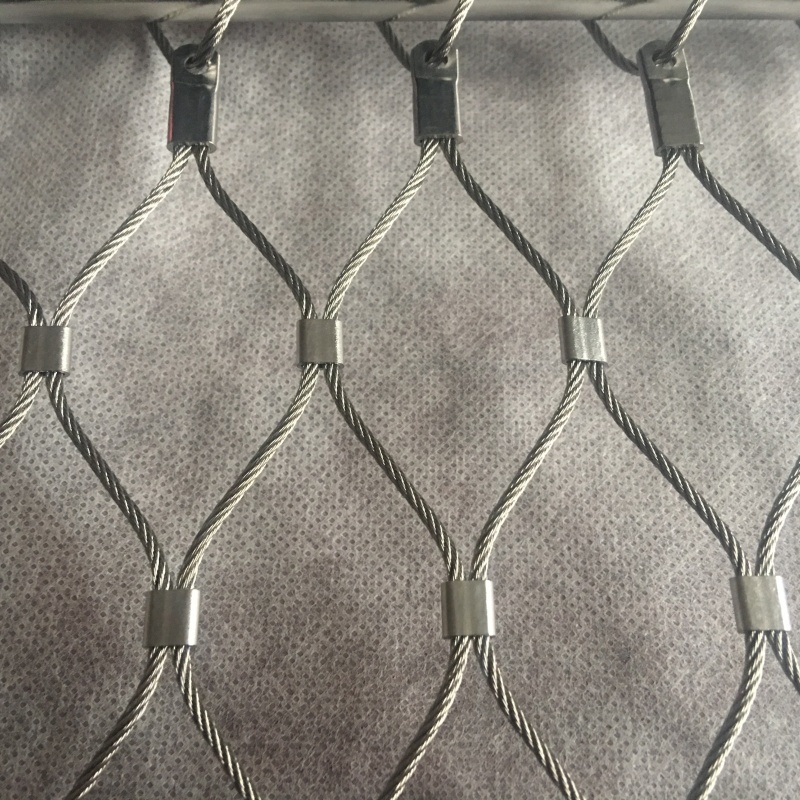

Name: Easy Installation Corrosion Resistant Stainless Steel Wire Rope Mesh with High Impact Resistance
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: YT-B-616
Price: 10 USD
Availability: InStock

Easy Installation Corrosion Resistant Stainless Steel Wire Rope Mesh with High Impact Resistance

Basic Information

Place of Origin:	Hebei, China
Brand Name:	Yuntong
Certification:	CE , SGS
Model Number:	YT-B-616

Minimum Order Quantity:	10 Sqm
Price:	USD10
Packaging Details:	Black oxide wire rope zoo mesh available packaging : plastic film , water-proof fabric , carton box and wooden case
Delivery Time:	About 5-8 Work Days
Payment Terms:	T/T,Western Union,PayPal,L/C
Supply Ability:	300Sqm/Week

Contact Now

Cable Diameter:

1.2mm To 3.2mm

Surface Treatment:

Black Oxide

Rope Mesh Constructions:

1x7 ,7 X 7, 7X19

Material:

Stainless Steel034 316

Weave Style:

Ferruled And Woven Rope Mesh

Product Name:

Anti Uv Zoo Mesh X-tend Ferrule And Woven Black Oxide Rrope Mesh

Zoo Mesh Aperture:

From 20mm To 200mm Or Bigger

Highlight:

Easy Installation Stainless Steel Wire Rope Mesh

Corrosion Resistant Black Oxide Wire Rope Mesh

High Impact Resistance Ferrule and Woven Rope Mesh

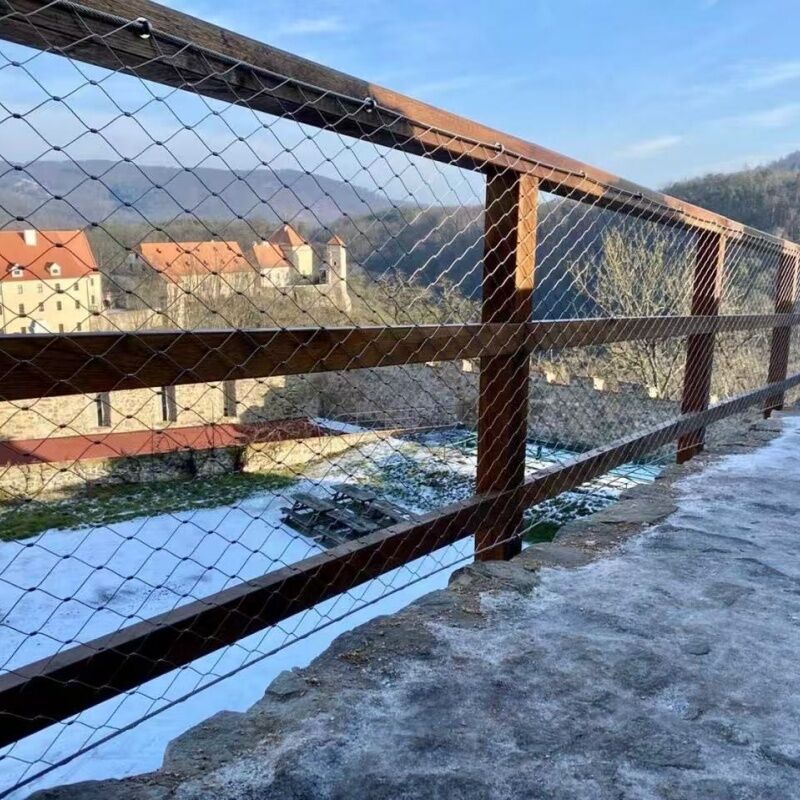

Easy Installation Stainless Steel Wire Rope Stair Railing Security Mesh Safety Protection

Stainless Steel Wire Rope Stair Railing Security Mesh is the characteristic leading product of Yuntong Metal Wire Mesh Company, which has been manufacturing the product since 2007. Our independently developed equipment and skilled techniques ensure high quality products and reliable service worldwide.

Product Specifications

Item No.	Wire Thickness	Mesh Eye Size (W x H)	Normal Break
YT-3212	1/8 inch (3.2 mm)	4.75 x 4.75 inch (120x120 mm)	1600 lbs
YT-3225	1/8 inch (3.2 mm)	4 x 4 inch (102x102 mm)	1600 lbs
YT-3228	1/8 inch (3.2 mm)	3.55 x 3.55 inch (90x90 mm)	1600 lbs
YT-3268	1/8 inch (3.2 mm)	3 x 3 inch (76x76 mm)	1600 lbs
YT-3216	1/8 inch (3.2 mm)	2 x 2 inch (51x51 mm)	1600 lbs
YT-2432	3/32 inch (2.4 mm)	4 x 4 inch (102x102 mm)	920 lbs
YT-2462	3/32 inch (2.4 mm)	3.55 x 3.55 inch (90x90 mm)	920 lbs
YT-2404	3/32 inch (2.4 mm)	3 x 3 inch (76x76 mm)	920 lbs
YT-2486	3/32 inch (2.4 mm)	2.4 x 2.4 inch (60x60 mm)	920 lbs
YT-2425	3/32 inch (2.4 mm)	2 x 2 inch (51x51 mm)	920 lbs
YT-1601	5/64 inch (2.0 mm)	3 x 3 inch (76x76 mm)	676 lbs
YT-1616	5/64 inch (2.0 mm)	2.4 x 2.4 inch (60x60 mm)	676 lbs
YT-1617	5/64 inch (2.0 mm)	2 x 2 inch (51x51 mm)	676 lbs
YT-1625	5/64 inch (2.0 mm)	1-1/2 x 1-1/2 inch (38x38 mm)	676 lbs
YT-1220	1/16 inch (1.6 mm)	3 x 3 inch (76x76 mm)	480 lbs
YT-1225	1/16 inch (1.6 mm)	2 x 2 inch (51x51 mm)	480 lbs
YT-1232	1/16 inch (1.6 mm)	1-1/2 x 1-1/2 inch (38x38 mm)	480 lbs
YT-1226	1/16 inch (1.6 mm)	1.2 x 1.2 inch (30x30 mm)	480 lbs
YT-1250	1/16 inch (1.6 mm)	1 x 1 inch (25.4x25.4 mm)	480 lbs
YT-1226	3/64 inch (1.2 mm)	1-1/2 x 1-1/2 inch (38x38 mm)	270 lbs
YT-1287	3/64 inch (1.2 mm)	1.2 x 1.2 inch (30x30 mm)	270 lbs
YT-1201	3/64 inch (1.2 mm)	1 x 1 inch (25.4x25.4 mm)	270 lbs
YT-1229	3/64 inch (1.2 mm)	4/5 x 4/5 inch (20x20 mm)	270 lbs

Product Advantages

Environmentally friendly design that protects birds' feathers and animal skin
Effectively prevents rodents and other animals from biting
Creates a safe and comfortable living environment for animals
Lightweight yet high strength construction
Excellent corrosion resistance and durability
Good flexibility and fatigue resistance
High impact resistance and breaking force
Long service life exceeding 30 years
