Diamond Hole Stainless Steel X Tend Cable Mesh Used For Bridge Fence

Diamond Hole Stainless Steel X Tend Cable Mesh Used For Bridge Fence
Diamond Hole Stainless Steel X Tend Cable Mesh Used For Bridge Fence
Diamond Hole Stainless Steel X Tend Cable Mesh Used For Bridge Fence Diamond Hole Stainless Steel X Tend Cable Mesh Used For Bridge Fence
Basic Information
Place of Origin: Hebei,China
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT- F126
Minimum Order Quantity: 10 Sqm
Price: USD 2-50
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 300Sqm/Week
Contact Now
Product Name: X-tend Cable Mesh Key Word: Wire Rope Mesh
Material: AISI316 , AISI316L Wire Rope: 1.2 Mm To 4.0 Mm
Wire Rope Constructions: 7 X 7 , 7 X 19 , 1 X 19 Finished: Ultrasonic Bath ,Black Oxide
Mesh Orientation: Horizontal , Vertical Mesh Angle: 60 Degree
Highlight:

stainless steel diamond hole mesh

,

X Tend cable mesh for bridge fence

,

diamond hole cable mesh fencing

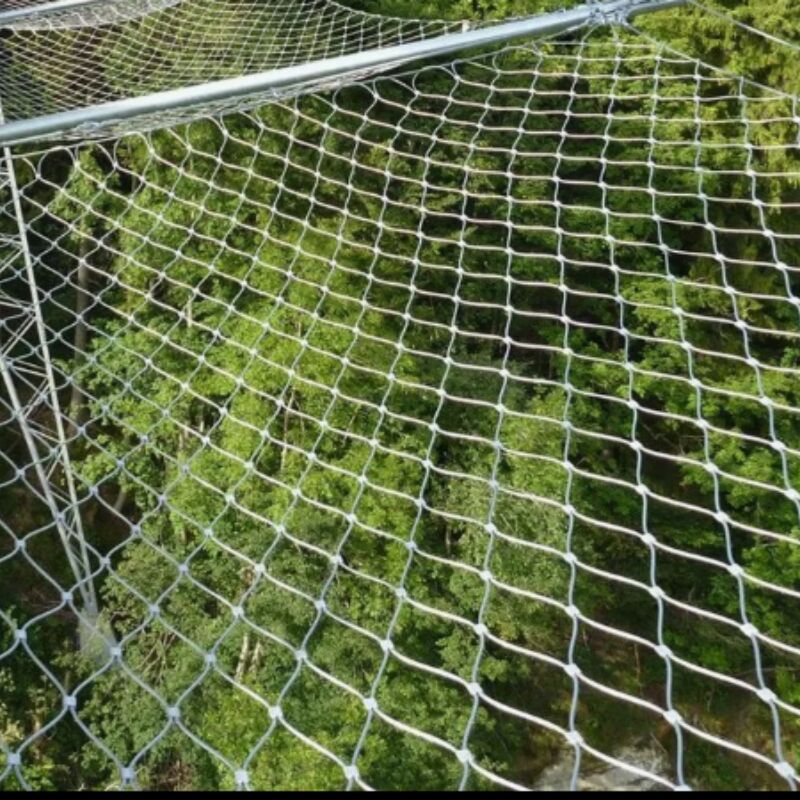

Diamond Hole Stainless Steel X Tend Cable Mesh Used For Bridge Fence





The x-tend cable  mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.

The flexible stainless steel cable mesh is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.

Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.



X-tend Cable Mesh Specifications  :


Mesh Eye Size

(Opening)

1.2mm(3/64)

(7 x 7 )

1.6mm(1/16)

(7 x 7 )

2.0mm(5/64)

(7 x 7 )

2.4mm(3/32)

(7 x 7 )

3.2mm(1/8)

(7 x 19 )
20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120



X-tend Cable Mesh is made of stainless steel ropes whose constructions are 7 × 7 and 7 × 19, so stainless steel knotted rope mesh is very soft, and it will not hurt human bodies and animals. However, the whole mesh has firm construction. It canbear heavy snow and gale.

There are two types, one is woven types of steel cable mesh, the other is ferrule types of steel cable mesh.



SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0



Diamond Hole Stainless Steel X Tend Cable Mesh Used For Bridge Fence 0
