X-Type Infill Rope Mesh Balustrade Protective Net Black Oxide Wire Rope Mesh

• Advantage of Wire Rope Net: Unique design, 3D-structure, Flexible, Light weight, Corrosion resistant, Maintenance free. 10 years rust guaranteed.
• Material Options: Generally the 304 stainless steel is cheaper than 316 stainless steel, but for flexible wire rope mesh, the main cost is process cost, so the cost difference between 304 and 316 is minimal. We recommend 316 stainless steel.
• Cost Factors: The heavier cable or smaller opening, the more expensive the product.
• Safety: Full mesh meets test standards under EN1263.1.2014.
• Installation: All our products are manufactured with special edge design for easy self-installation.

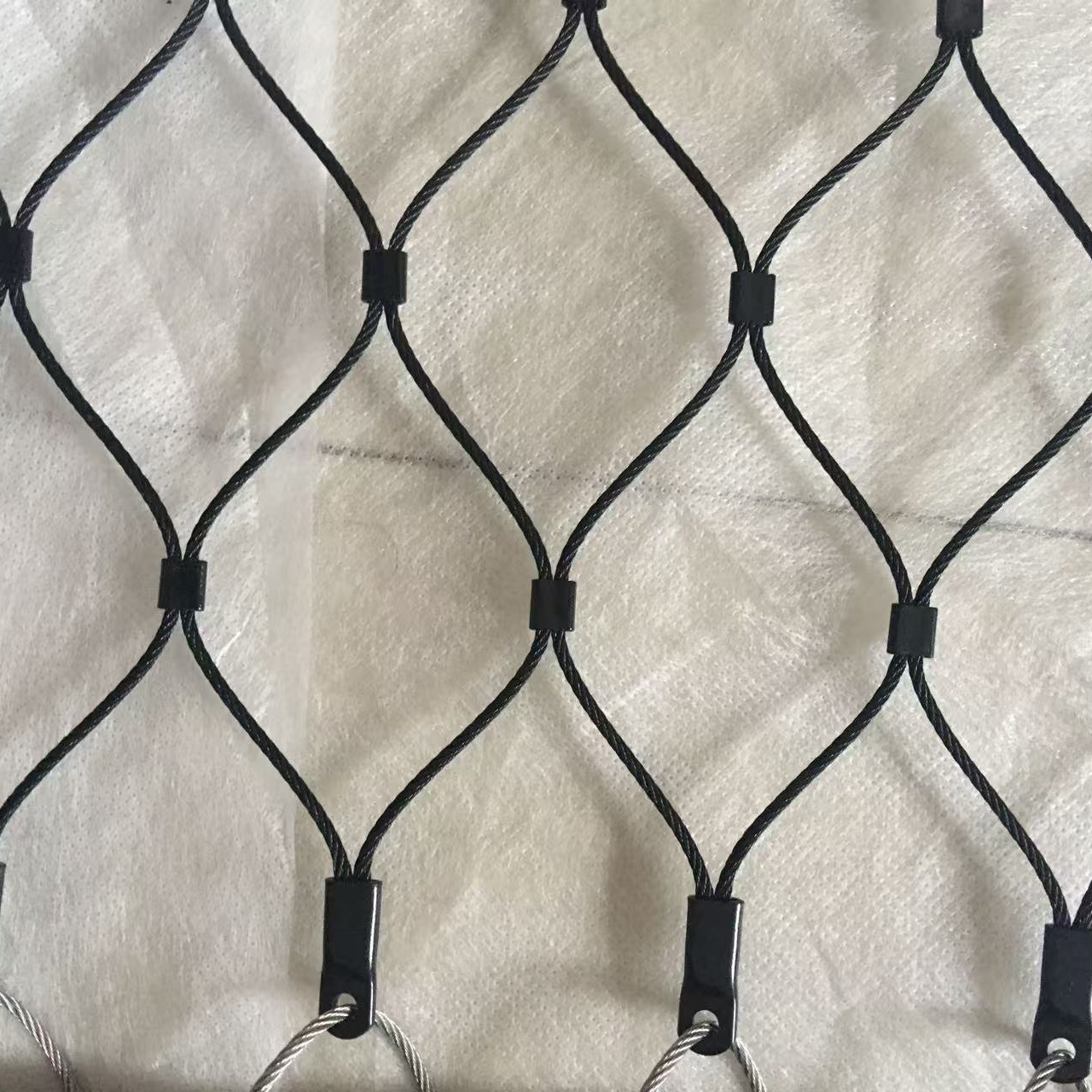

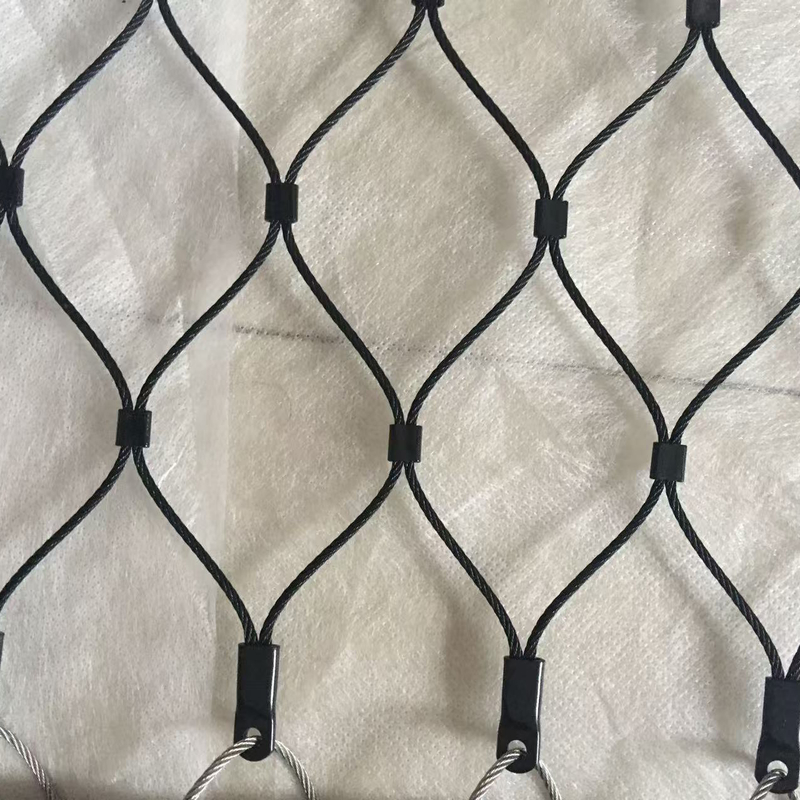

Wire rope black oxide mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L.

Stainless steel wire rope mesh is custom manufactured to suit your balustrade, railing or architecture application.

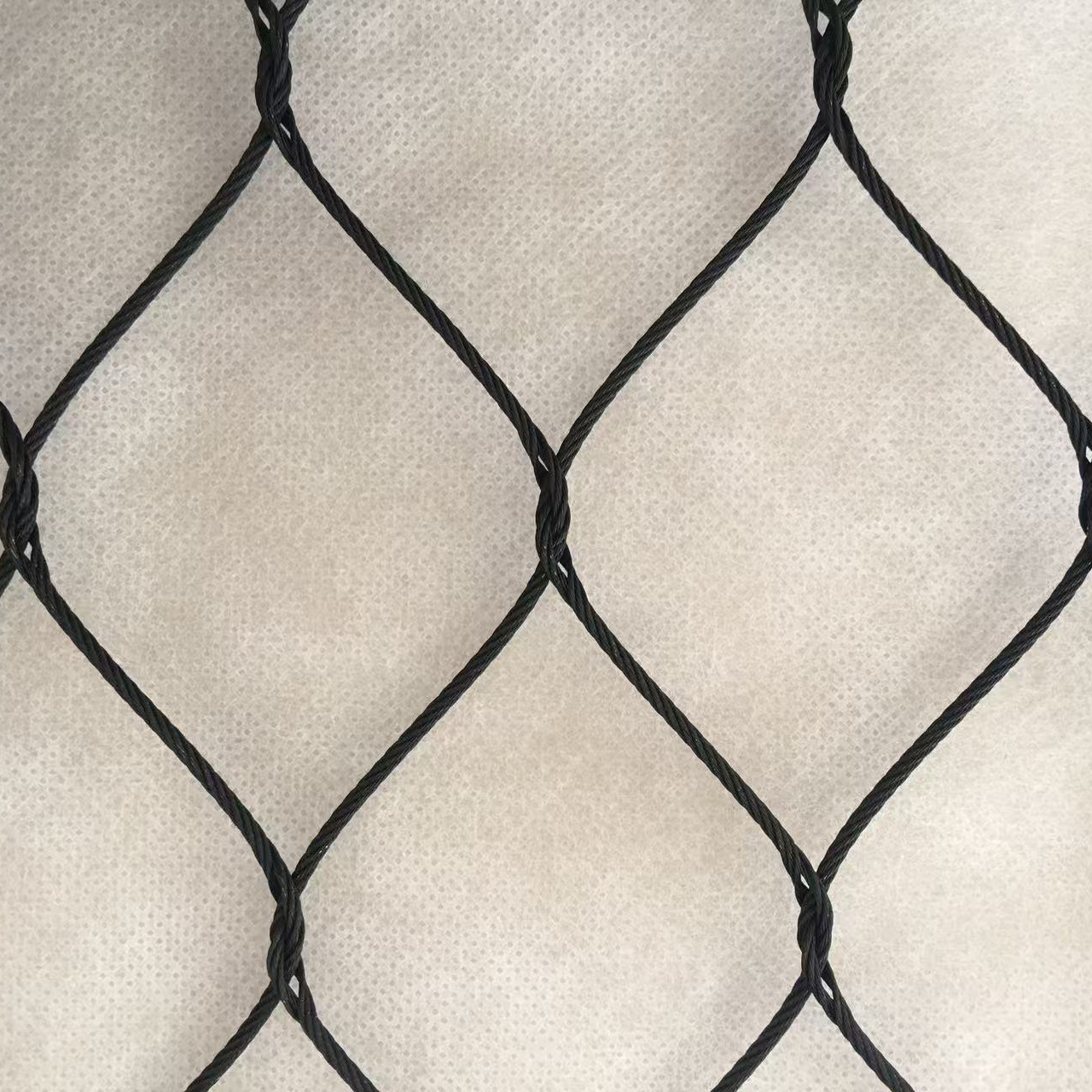

Finished diamond mesh style when it is stretched at 60 degree angle.

Mesh can be applied in either a vertical or horizontal direction, again dependent on the design.

Mesh sizes range from 20mm to 120mm or bigger with stainless cable diameters from 1.2mm to 4.0 mm.
