Name: 316 Stainless Steel Dropped Object Prevention Net for Floodlight Safety
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: YT--F-1650
Price: 15.00 USD
Availability: InStock

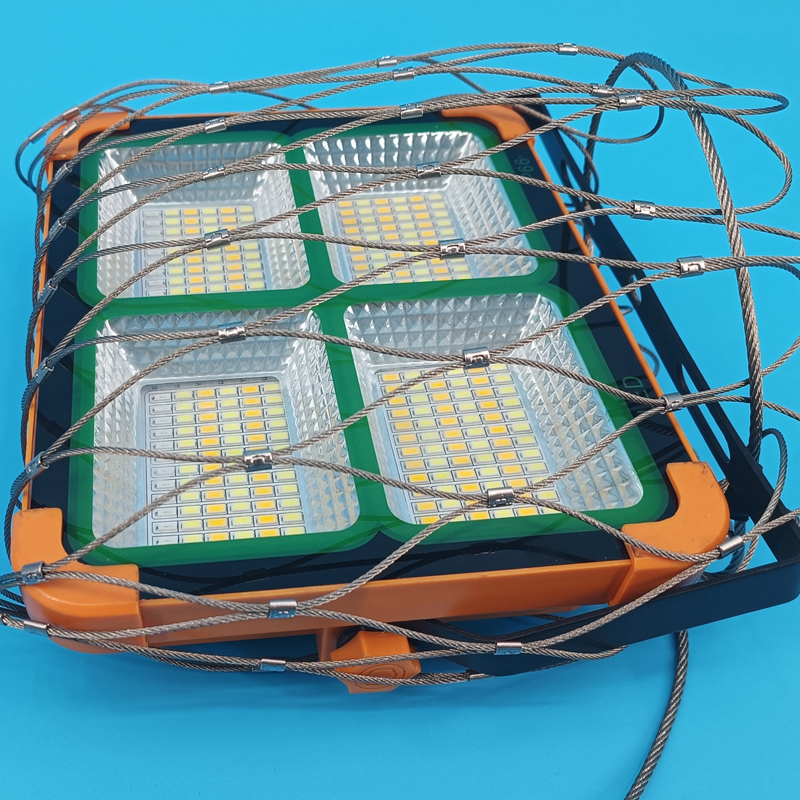

316 Stainless Steel Dropped Object Prevention Net for Floodlight Safety

Basic Information

Place of Origin:	Hebei
Brand Name:	Yuntong
Certification:	CE , SGS
Model Number:	YT--F-1650

Minimum Order Quantity:	10 Sqm
Packaging Details:	Carton Box , Wooden Case
Delivery Time:	5-8 Work Days
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	300Sqm/Week

Contact Now

Mesh Shape:

Rhombus , Diamond

Rope Constructions:

7 X 7

Mesh Style:

Ferruled , Knotted

Mesh Orientation:

Horizontal , Vertical

Application:

Zoo Mesh

Wire Rope:

1.5mm , 1.6mm , 2.0mm

Mesh Angle:

60 Degree

Material:

Stainless Steel 304 , 316 , 316L

Panel Size:

Custom-Made

Highlight:

316 stainless steel safety net

dropped object prevention net

floodlight safety mesh net

316 Stainless Steel Dropped Object Prevention Net for Floodlight Safety

Product Specifications

Attribute	Value
Mesh Shape	Rhombus, Diamond
Rope Constructions	7 x 7
Mesh Style	Ferruled, Knotted
Mesh Orientation	Horizontal, Vertical
Application	Zoo Mesh
Wire Rope	1.5mm, 1.6mm, 2.0mm
Mesh Angle	60 degree
Material	Stainless Steel 304, 316, 316L
Panel Size	Custom-Made

Product Description

Our 316 Stainless Steel Dropped Object Prevention Net provides superior safety for floodlights with its rhombus mesh design that offers excellent flexibility and virtually indestructible performance. These nets feature the most breaking-resistant force available, capable of withstanding rain, snow, and hurricanes.

Constructed from high-grade stainless steel (304, 304L, 316, 316L), these safety nets can securely contain specimens of any size, whether on land, in the air, indoors or outdoors, regardless of their cunning nature.

Key Advantages

Unique 3D structure - Flexible, elegant, discreet, filigreed, and multifunctional design
Lightweight with high open area percentage
Excellent corrosion resistance with strong airflow
Environmentally friendly - Recyclable, non-toxic, and non-flammable
Maintenance-free - Requires no special cleaning or coating
10-year guarantee on material and performance

Standard Specifications

Hole Size (Opening)	1.2MM(3/64) (7 x 7)	1.6MM(1/16) (7 x 7)	2.0MM(5/64) (7 x 7)	2.4MM(3/32) (7 x 7)	3.2MM(1/8) (7 x 19)
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

Material Composition

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0
