Product Description
Flexible Stainless Steel Wire Rope Mesh material is produced from high quality stainless steel wire cable, available in grades 304, 304L, 316 and 316L. Our Stainless Steel Cable Zoo Mesh features superior quality construction with standard diameters including 1/8", 3/32", 1/16", and 3/64", and standard mesh opening sizes of 2" x 2", 3" x 3" and 4" x 4".
Available in 7 x 7 and 7 x 19 structures, this material is ideal for indoor decoration, mechanical protective covers, electrical ventilation, aquaculture, and various industrial applications in hotels, shopping malls, supermarkets, and offices.
Aviary Wire Netting Specifications
| Cable Diameters |
Mesh Hole Size |
Cable Structures |
| 1.2 mm to 3.2 mm |
25 x 43mm to 50 x 86 mm or bigger |
7 x 7, 7 x 19 |
Our wire rope aviary mesh netting is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316/AISI316L.
Key Characteristics
- High tensile strength and flexibility
- Multifunctional and compatible with creative architecture
- Rugged, weather-resistant construction
- Non-corroding and corrosion-resistant
- Alkali resistant
Recommended Specifications for Aviaries
| Material |
Cable Diameter |
Hole Size |
Normal Break |
| SS304/316/316L |
3/64" (1.2MM) |
1" x 1" |
270 LBS |
| SS304/316/316L |
1/16" (1.6MM) |
1" x 1" |
480 LBS |
| SS304/316/316L |
1/16" (1.6MM) |
1.2" x 1.2" |
480 LBS |
| SS304/316/316L |
5/64" (2.0MM) |
1.2" x 1.2" |
676 LBS |
| SS304/316/316L |
5/64" (2.0MM) |
1.5" x 1.5" |
676 LBS |
| SS304/316/316L |
5/64" (2.0MM) |
2.0" x 2.0" |
676 LBS |

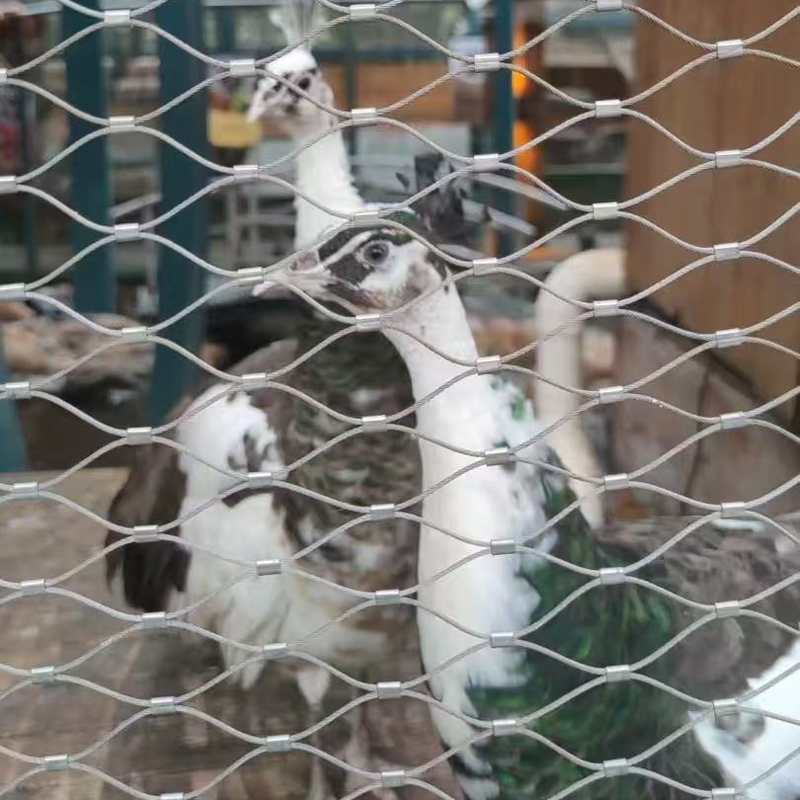

Our aviary wire netting features skin-like characteristics, capable of forming a plane surface or being tensioned into three-dimensional forms including funnel-like, cylindrical or spherical shapes.
Material Composition
SS304: C:≤0.07%, Si:≤1.0%, Mn:≤2.0%, Cr:17.0-19.0%, Ni:8.0-11.0%, S:≤0.03%, P:≤0.035%
SS316: C:≤0.08%, Si:≤1.00%, Mn:≤2.00%, P:≤0.035%, S:≤0.03%, Ni:10.0-14.0%, Cr:16.0-18.5%
SS316L: C:≤0.03%, Si:≤1.00%, Mn:≤2.00%, P:≤0.045%, S:≤0.030%, Cr:16.0～18.0%, Ni:12.0～15.0%

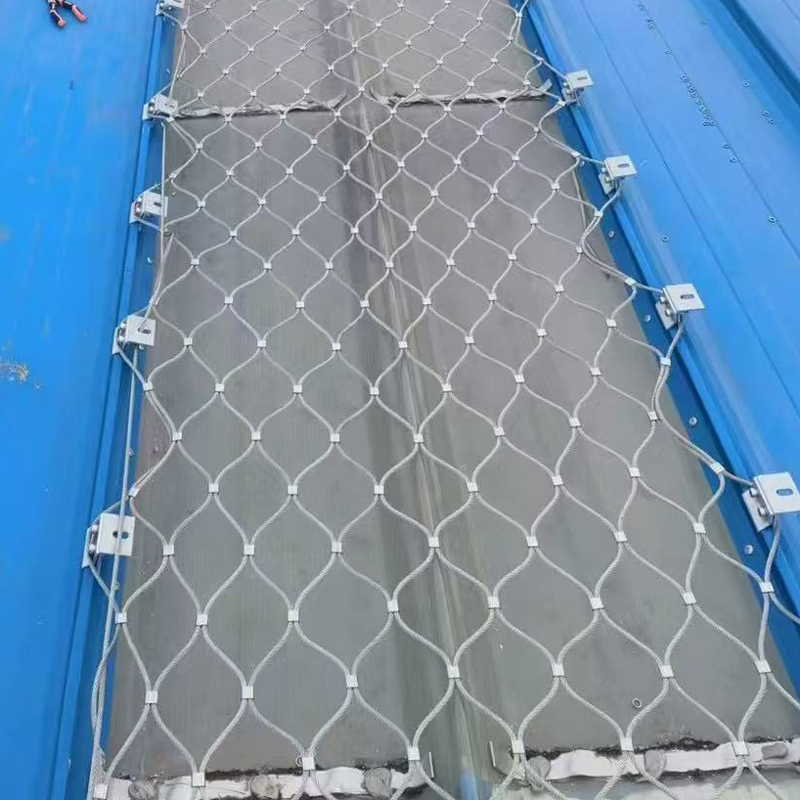

Our Stainless Steel Wire Rope Mesh is custom manufactured to your required widths and lengths. When stretched at a 60 degree angle, it forms a finished diamond mesh style, though diagonal and irregular shapes are also available. The mesh can be applied in either vertical or horizontal orientation to suit your specific design requirements and aesthetic preferences.
