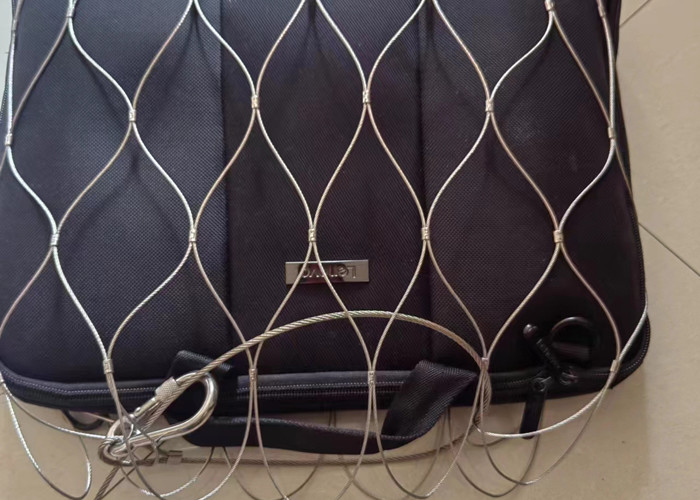

316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh

Basic Information
Place of Origin: China
Brand Name: YUNTONG
Certification: CE
Model Number: YT-F4060
Minimum Order Quantity: 5
Price: USD 5-25/m2
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000m2/week
Material: SUS 304 SUS 316 Wire Diameter: 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Height: Customized Length: Customized
Size Of Hole: 25*25mm-300*300mm Application: Protective, Fall Prevention
Weave Style: Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled Characteristic: Anti-corrosion Non-rusting Anti Acid And Alkali
Name: 316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh
High Light:

Balustrade Cable Mesh

,

316 Balustrade Cable Mesh

,

Cable Drop Preventing Balustrade Cable Mesh

316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh



1. Specification as follows:
Material: ss304 ss316
Mesh type: 1.Woven 2. Ferrule mesh
cable structures:7 x7, 7 x19

Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm 6.0mm etc.

Mesh aperture: 25*25mm -300*300mm etc.

Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.



316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh 0





Stainless Steel Wire Rope Mesh

The mesh width OW,refer to the distance from the middle of one ferrule to the next ferrule along the cable, net geometry is optimized, when the resulting diameter can be divided into two equilateral triangles with 60 corners.

Mesh Aperture Wire Diameter
OW x OH (mm) 1.2 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
20 x 35 YT-1220 F
25 x 45 YT-1225 F YT-1525 F
35 x 61 YT-1235 F YT-1535 F YT-2035 F
40 x 70 YT-1240 F YT-1540 F YT-2040 F YT-3040 F
50 x 90 YT-1250 F YT-1550 F YT-2050 F YT-3050 F YT-4050 F
60 x 105 YT-1260 F YT-1560 F YT-2060 F YT-3060 F YT-4060 F
70 x 120 YT-1270 F YT-1570 F YT-2070 F YT-3070 F YT-4070 F
80 x 140 YT-1280 F YT-1580 F YT-2080 F YT-3080 F YT-4080 F
100 x 175 YT-12100 F YT-15100 F YT-20100 F YT-30100 F YT-40100 F
120 x 210 YT-12120 F YT-15120 F YT-20120 F YT-30120 F YT-40120 F
160 x 280 YT-12160 F YT-15160 F YT-20160 F YT-30160 F YT-40160 F
180 x 315 YT-12180 F YT-15180 F YT-20180 F YT-30180 F YT-40180 F
200 x 350 YT-12200 F YT-15200 F YT-20200 F YT-30200 F YT-40200 F
250 x 450 YT-12250 F YT-15250 F YT-20250 F YT-30250 F YT-40250 F
300 x 525 YT-12300 F YT-15300 F YT-20300 F YT-30300 F YT-40300 F




2. cable structures and mesh type:



1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.



2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.


316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh 1



3. Introduce:
Stainless steel wire cable Netting is also known as safety netting system. It is widely used in slope reinforcement.The system,mainly made up of wire ,enjoy the basic functions to cover (initiative protection) and intercept (passive protection) so as to defend various geological disasters.

316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh 2

4.Application:

It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.

316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh 3

5. Advantage:

1. Made of high quality stainless steel wire rope

2. Material group: AISI 304, 304 L, 316, 316L

3.Mesh sizes range from 30mm x 30mm to 250mm x 250mm with stainless cable diameters from 1.2mm to 3.2mm.

4. Soft to the touch, can't hurt hands.

5. Light weight, but strong

6. Life span more than 30 years

7. Environmental degradation resistant, say, corrosion, ultraviolet

8. Excellent flexibility for tough installations

 316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh 4

6. Accessory:

316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh 5

7. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh 6



8. Company:



Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Located in the native land of wire mesh in China. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.

Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.



316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh 7



9. Factory :



316 Drop Safe Net Cable Drop Preventing Netting Balustrade Cable Mesh 8
