Woven And Ferruled Zoo 304 / 316 Cable Aviary Netting

Basic Information
Place of Origin: Hebei
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT--F-2550
Minimum Order Quantity: 10 Sqm
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 300Sqm/Week
Product Name: Woven And Ferruled Zoo 304/316 Cable Aviary Netting Wire Rope: 2mm ,2.5mm , 3.0mm , 3.2mm
Mesh Angle: 60 Degree Mesh Shape: Rhombus , Diamond
Hole Size: 50x86mm , 60 X 104mm Material: Stainless Steel 316 , 316L
High Light:

304 Cable Aviary Netting

,

Zoo Cable Aviary Netting

Woven And Ferruled Zoo 304/316 Cable Aviary Netting



Material:304, 304L, 316, 316L.
Ferrule material:tinned copper, nickel plated copper, stainless steel.
Surface treatment:silver or black oxide finish.
Structures of wire cable: 7 × 7, 7 × 19.
Cable diameter:1.0-5.0 mm.
Diamond sizes:20-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Connection: ferrule or knotted.



Woven And Ferruled Zoo 304/316 Cable Aviary Netting Specifications Sheet :



Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )

20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120


Material of Wire Rope Zoo Mesh : Stainless steel 304,304L,316,306L etc.

SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0




Zoo Wire Mesh



Mesh aperture:

Animal enclosure netting is the mesh hole size, is the distance from knot center to knot center.Animal enclosure netting is pure hand-woven, so it also be called as hand woven stainless steel wire rope mesh or stainless steel rope braid mesh. Every knotting crossing twice by hand, ensure the hole never variant. Hand woven stainless steel netting hole size is diverse.We accept custom mesh size, whether so large, so small, our steel cable mesh can be very suit your design .

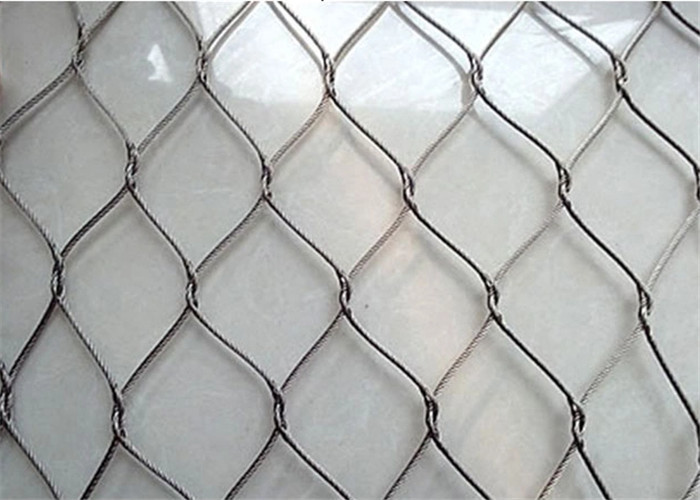

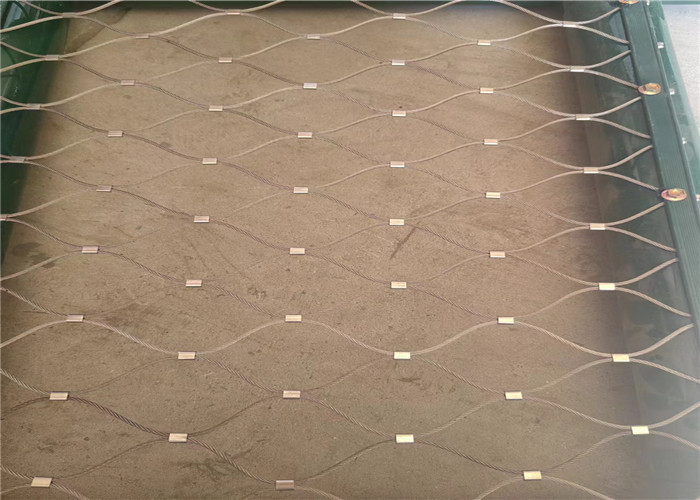

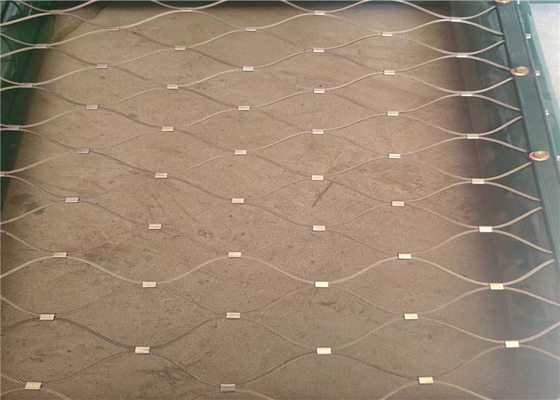

Woven And Ferruled  Zoo 304 / 316 Cable Aviary Netting 0Woven And Ferruled  Zoo 304 / 316 Cable Aviary Netting 1
