| Place of Origin: | Hengshui ,Hebei ,China |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE ,SGS |
| Model Number: | YT-A1725 |
| Minimum Order Quantity: | 10 square meters |
| Packaging Details: | Bubble film then wooden box for the animal enclosure wire rope mesh |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T,L/C, Paypal,, Western Union |
| Wire Diameter: | 1.2mm To 3.2mm | Type: | Woven And Ferrule |
|---|---|---|---|
| Zoo Mesh Feature: | Protecting Mesh | Mesh Constructure: | 7x7 Or 7x19 |
| Material: | AISI316 304 | Mesh Opening: | 20x20mm To 100x100mm Or Bigger |
| Usage: | Zoo Enclosure | ||
| Highlight: | X-Tend Zoo Wire Mesh,Diamond Stainless Steel Zoo Wire Mesh,Diamond Hole Zoo Wire Mesh |
||

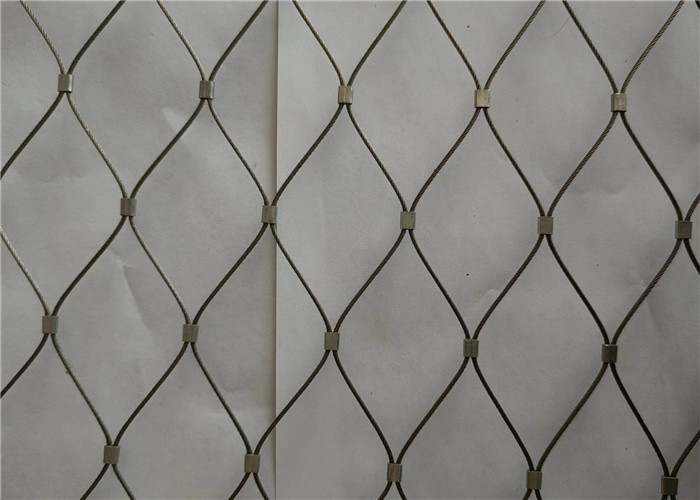

X-Tend Stainless Steel Rope Zoo Wire Mesh Diamond Hole
X-Tend Stainless Steel Rope Zoo Wire Mesh Diamond Hole Description:
| Cable Diameter | 1.2mm ,1.5mm,1.6mm is popular |
| Zoo Mesh Opening | from 20x20mm to 102mmx102mm |
| Note | all the specifications and size can be customized |
| Material | Stainless Steel 304,316,316L |
X-Tend Stainless Steel Rope Zoo Wire Mesh Diamond HoleSpecifications:
| Zoo Mesh Diameter | Zoo Mesh Opening Size | Normal Break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4.75x8.23 | 120x207.8 | 1600 |
| 1/8 | 3.2 | 3.55x6.15 | 90x156 | 1600 |
| 1/8 | 3.2 | 3x5.2 | 76x131.6 | 1600 |
| 1/8 | 3.2 | 2x3.46 | 51x88.3 | 1600 |
| 3/32 | 2.4 | 4x6.9 | 102x176.7 | 920 |
| 3/32 | 2.4 | 3.55x6.15 | 90x156 | 920 |
| 3/32 | 2.4 | 3x5.2 | 76x131.6 | 920 |
| 3/32 | 2.4 | 2.4x4.16 | 60x106 | 920 |
| 3/32 | 2.4 | 2x3.46 | 51x88.3 | 920 |
| 5/64 | 2.0 | 3x5.2 | 76x131.6 | 676 |
| 5/64 | 2.0 | 2.4x4.16 | 60x106 | 676 |
Features of closed type: The mesh has multiple steel wire ropes combined together, and it is relatively stronger but there are multiple joint at one end of the closure.
Features of open types: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.
