Place of Origin: | Hebei |
---|---|
Brand Name: | Yuntong |
Certification: | CE , SGS |
Model Number: | YT-1650 |
Minimum Order Quantity: | 10 Sqm |
Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
Delivery Time: | 5-8 Work Days |
Payment Terms: | T/T, Western Union,PayPal |
Supply Ability: | 300Sqm/Week |
Features: | Transparent And Flexible | Product Name: | Ferrule Knitted Beauty Flexible Wire Rope Cable Mesh For Zoo Enclosures |
---|---|---|---|
Wire Thickness: | From 1.2 Mm To 4.0 Mm | Application: | Animal Enclosure , Aviary Netting |
Mesh Type: | Ferruled Or Knotted | Hole Size: | Range From 20 Mm To 100 Mm Or Bigger |
Sheet Size: | Cuatom-made In Width And Length | ||
High Light: | Beauty Flexible Wire Rope Cable Mesh,Ferrule Knitted Wire Rope Cable Mesh,Zoo Enclosures Wire Rope Cable Mesh |

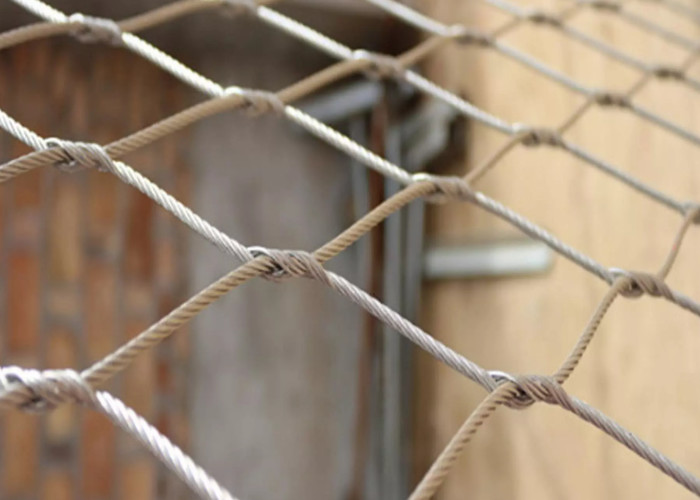

Ferrule Knitted Beauty Flexible Wire Rope Cable Mesh for Zoo Enclosures
Ferrule Knitted Beauty Flexible Wire Rope Cable Mesh for Zoo Enclosures , In the design of the exhibition enclosure, in order to be safer and at the same time to close the distance between animals and people, zoos and architects are also trying their best.
Zoo Wire Mesh Specification As following :
Hole Size |
1.2MM(3/64) |
1.6MM(1/16) | 2.0MM(5/64) | 2.4MM(3/32) | 3.2MM(1/8) |
20 x 35mm | YT-1235 | ||||
25 x 42mm | YT-1225 | YT-1625 | |||
30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
The Zoo wire mesh is rhombus mesh, has excellent flexible performance, virtually indestructible,
most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.

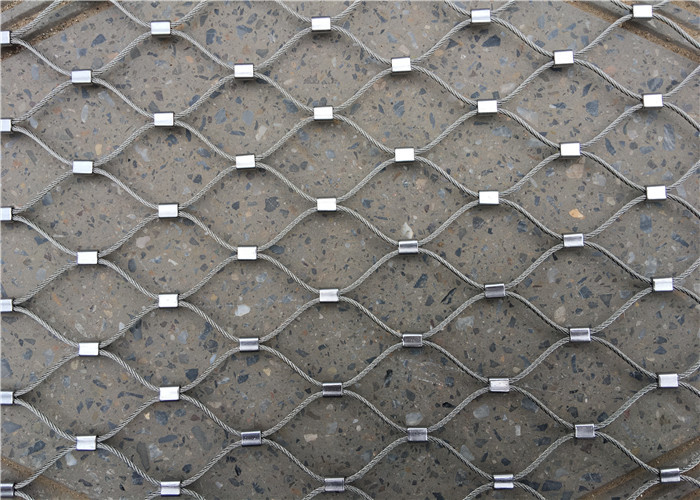

Finished diamond mesh style when it is stretched at 60 degree angle ;
Zoo Wire Mesh Details
Product Name | Stainelss Steel Zoo Wire Mesh |
Product Type | X-tend Rope Wire Mesh |
Material Type | High Grade AISI316 |
Finished | Ultrasonic Bath , Black Oxide |
Features | Weather-Resistant , Non-Corroding , Rugged |
X-tend Zoo Mesh is custom manufactured to in widths and lengths to suit your zoo park architectural application. Diagonal and irregular shapes can also be supplied. Black anodised or galvanised finish options
The Yuntong Zoo Wire Mesh is a vibrant, premium-quality product made from the stainless AISI 316 material group:the mesh aperature W x H (variable from very tight to very wide), the wire-rope diameter (1.2 mm, 1.5 mm, 2.0 mm and 3.0 mm) determine fucntion and aesthetics.
