| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT-1630 |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Mesh Type: | Ferruled Or Knotted | Rope Thickness: | 1.2 Mm ,1.5mm, 2.0 Mm |
|---|---|---|---|
| Application: | Aviary Netting , Bird Cage , Parrot Cage | Product Name: | X Tend Stainless Steel Rope Mesh Web Net Ss Zoo Mesh |
| Finished: | Ultrasonic Bath , Black Oxide | Hole Size: | Range From 20 Mm To 50 Mm |
| High Light: | Web Net Stainless Steel Rope Mesh,X Tend Stainless Steel Rope Mesh,sus X Tend zoo wire mesh |
||
| Cable Diameters | 1.2 mm to 3.2 mm |
| Mesh Hole Size | 25 x 43mm to 50 x 86 mm or bigger |
| Cable Structures | 7 x 7 , 7 x 19 |
Characteristic
Recommended Zoo Wire Mesh Specification for Aviaries :
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 3/64" (1.2MM) | 1" x 1" | 270 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1" x 1" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1.2" x 1.2" | 480 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 1.2" x 1.2" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 1.5" x 1.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.0" x 2.0" | 676 LBS |
Material of Cable Webnet : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |

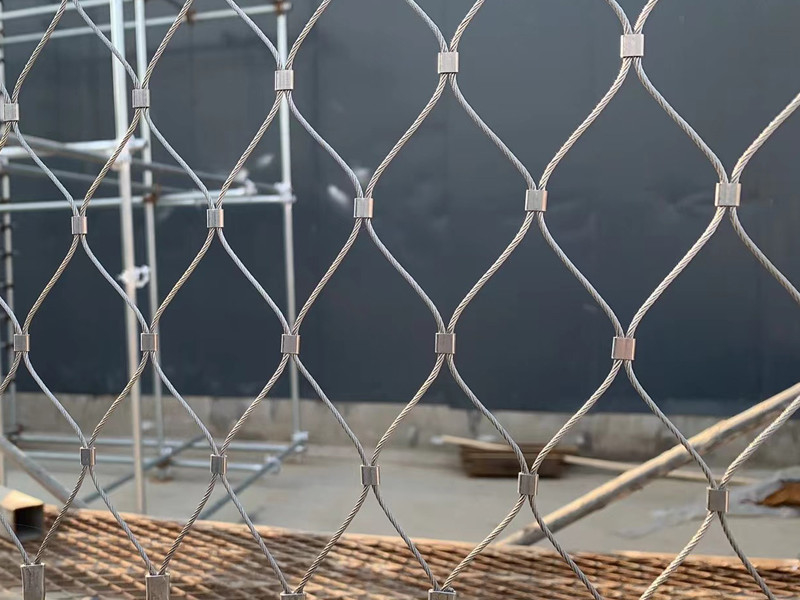

Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.
