| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT--F-F |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Wire Rope: | 1.2 Mm To 4.0 Mm | Rope Constructions: | 7 X 7 , 7 X 19 , 1 X 19 |
|---|---|---|---|
| Finished: | Ultrasonic Bath / Black Oxide | Material: | Stainless Steel 304 , 316 , 316L |

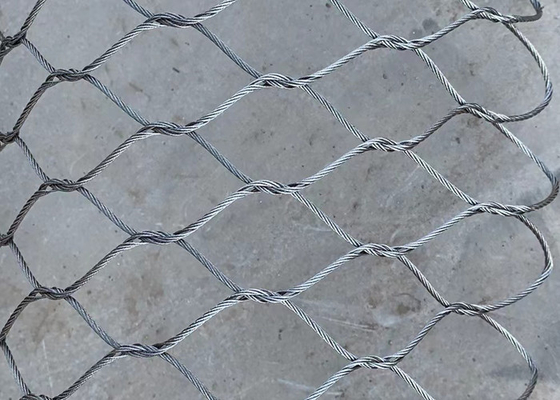

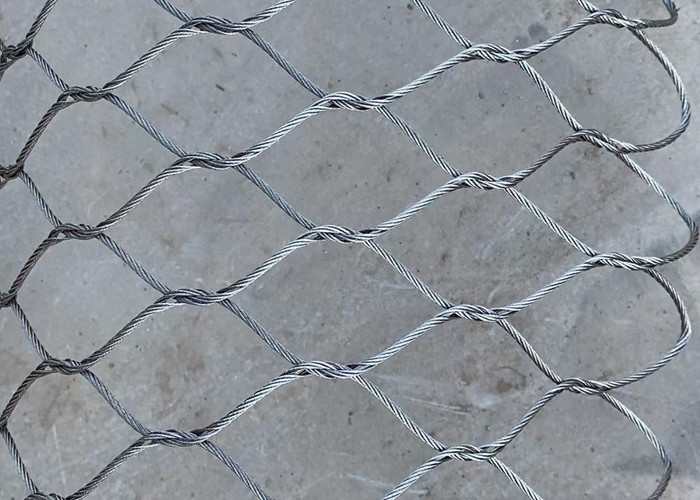

| Mesh Orientation: | Horizontal , Vertical | Product Name: | Flexible Zoo Wire Mesh Stainless Steel Cable Protective |
| Application: | Staircase Security , Balustrade Infill , Railing Safety | Mesh Angle: | 60 Degree |

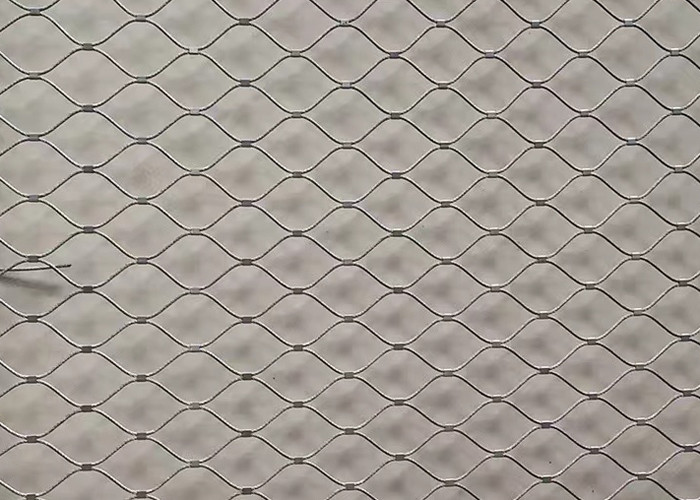

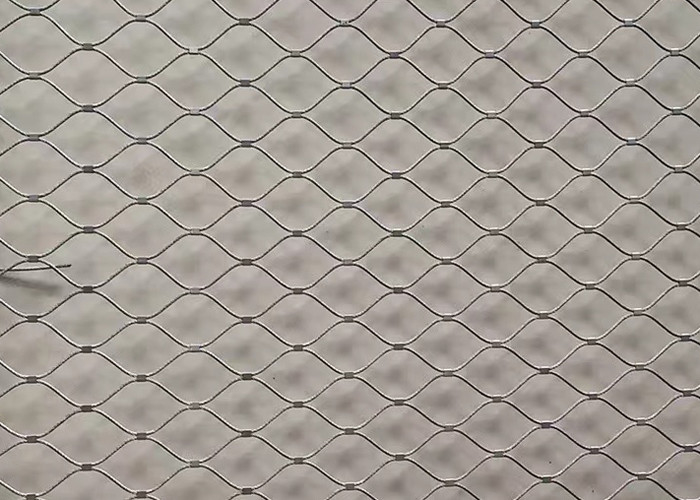

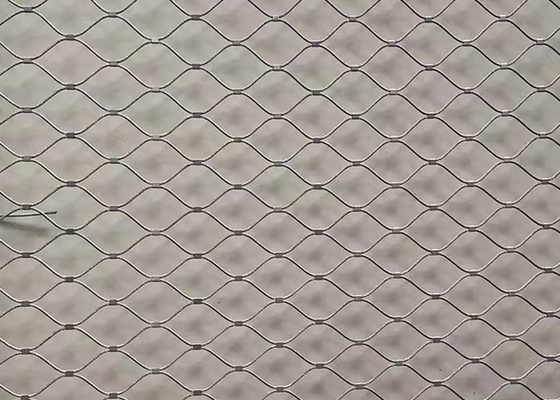

| Mesh Style: | X-tend In Ferruled Type | Mesh Shape: | Rhombus , Diamond |
| Panel Size: | Customized In Width And Length | ||
| High Light: | Flexible Zoo Wire Mesh,Stainless Steel Cable zoomesh,zoomesh for Protective |
||
|
Specification
|
|
|
material
|
stainelss steel 304 316 316L etc.
|
|
wire diameter
|
1.2 - 6.0mm
|
|
feature
|
flexible, high-Strength
|
|
technique
|
woven wire mesh
|
|
mesh rolls size
|
1x30m 2x30m 4x30m or according to clients' requirements
|
|
structure
|
7*7 or 7*19
|
|
surface
|
flat and WYight
|
10 Advantages of Stainless Steel Cable Wire Mesh
1.It’s malleable and flexible
Cable wire mesh has a fabric-like structure which makes it very useful for ‘wrapping’ around unusually shaped structures and shapes. Examples of this include being used to provide safety in car parks, at sports grounds and in children’s playgrounds.
2.A durable, low maintenance material
cable wire mesh is extremely durable and strong, made from marine grade 316 stainless steel, cable is suitable for projects that require longevity. Also, cable requires little to no maintenance after installation.
3.Provides fall protection
cable wire mesh can be used to create fall protection for a variety of applications, including on bridges, car parks, balconies and elevated walkways.
4.Useful in green façades
Façade greening can be created using cable, creating a robust structure for plants to grow up – providing aesthetic and ecological benefits.
5.Handles heavy loads
The ability to handle large loads is an advantage of cable, as it makes it suitable for fall protection and is able to cope with the weight of plants on large scale green walls.
6.Provides wall replacements
Defining separate spaces can be achieved with cable as it is able to act as a wall, proving to be particularly useful in small spaces to separate areas whilst still allowing for a flow of light.
7.Can create animal enclosures
Animal enclosures can be fabricated using cable wire mesh systems, creating enclosures that allow animals to roam freely. cable comes in various apertures and sizes to suit the application.
8.Light, attractive design
The light, filigree design of cable provides safety without having a negative impact on the design of a structure and without blocking the flow of light.
9.Use for artistic or business purposes
Artistic facades can be created using cable wire mesh , by attaching steel plates in a configuration that creates a pattern, logo or company name. Available in a wide range of colours, they can also be coated with reflective film so that it can even be seen at night.
10.Can be coloured as desired
Depending on a project’s requirements, cable wire mesh can be painted in a number of colours in a range of finishes.
|
Model
|
Structure
|
Rope Diameter
|
Mesh Opening
|
|
2076
|
7*7 or 7*19
|
2.0mm
|
76*76mm
|
|
2051
|
7*7 or 7*19
|
2.0mm
|
51*51mm
|
|
1651
|
7*7 or 7*19
|
1.6mm
|
51*51mm
|
|
1638
|
7*7 or 7*19
|
1.6mm
|
38*38mm
|
|
1238
|
7*7 or 7*19
|
1.2mm
|
38*38mm
|
|
1230
|
7*7 or 7*19
|
1.2mm
|
30*30mm
|
|
1225
|
7*7 or 7*19
|
1.2mm
|
25*25mm
|
|
Code
|
Rope Construction
|
Rope Diameter
|
Opening Size
|
Breaking Force
|
||
|
Inch
|
mm
|
Inch
|
mm
|
KN
|
||
|
01
|
7 × 19
|
1/8
|
3.2
|
4.7" × 4.7"
|
120 × 120
|
7.38
|
|
02
|
7 × 19
|
1/8
|
3.2
|
4" × 4"
|
102 × 102
|
7.38
|
|
03
|
7 × 19
|
1/8
|
3.2
|
3.6" × 3.6"
|
90 × 90
|
7.38
|
|
04
|
7 × 19
|
1/8
|
3.2
|
3" × 3"
|
76 × 76
|
7.38
|
|
05
|
7 × 19
|
1/8
|
3.2
|
2" × 2"
|
51 × 51
|
7.38
|
|
06
|
7 × 7
|
3/32
|
2.4
|
4" × 4"
|
102 × 102
|
4.18
|
|
07
|
7 × 7
|
3/32
|
2.4
|
3.6" × 3.6"
|
90 × 90
|
4.18
|
|
08
|
7 × 7
|
3/32
|
2.4
|
3" × 3"
|
76 × 76
|
4.18
|
|
09
|
7 × 7
|
3/32
|
2.4
|
2.4" × 2.4"
|
60 × 60
|
4.18
|
|
10
|
7 × 7
|
3/32
|
2.4
|
2" × 2"
|
51 × 51
|
4.18
|
|
11
|
7 × 7
|
5/64
|
2
|
3" × 3"
|
76 × 76
|
3.17
|
|
12
|
7 × 7
|
5/64
|
2
|
2.4" × 2.4"
|
60 × 60
|
3.17
|
|
13 |
7 × 7
|
5/64
|
2
|
2" × 2"
|
51 × 51
|
3.17
|
|
14
|
7 × 7
|
5/64
|
2
|
1.5" × 1.5"
|
38 × 38
|
3.17
|
|
15
|
7 × 7
|
1/16
|
1.6
|
3" × 3"
|
76 × 76
|
2.17
|
|
16
|
7 × 7
|
1/16
|
1.6
|
2" × 2"
|
51 × 51
|
2.17
|
|
17
|
7 × 7
|
1/16
|
1.6
|
1.5" × 1.5"
|
38 × 38
|
2.17
|
|
18
|
7 × 7
|
1/16
|
1.6
|
1.2" × 1.2"
|
30 × 30
|
2.17
|
|
19
|
7 × 7
|
1/16
|
1.6
|
1" × 1"
|
25 × 25
|
2.17
|
|
20
|
7 × 7
|
3/64
|
1.2
|
2" × 2"
|
51 × 51
|
1.22
|
|
21
|
7 × 7
|
3/64
|
1.2
|
1.5" × 1.5"
|
38 × 38
|
1.22
|
|
22
|
7 × 7
|
3/64
|
1.2
|
1.2" × 1.2"
|
30 × 30
|
1.22
|
|
23
|
7 × 7
|
3/64
|
1.2
|
1" × 1"
|
25 × 25
|
1.22
|
|
24
|
7 × 7
|
3/64
|
1.2
|
0.8" × 0.8"
|
20 × 20
|
1.22
|
|
Code
|
Rope Construction
|
Rope Diameter
|
Aperture
|
Breaking Force
|
|
|
Inch
|
mm
|
mm
|
kN
|
||
|
01
|
7 × 19
|
1/8
|
3.2
|
120 × 208
|
7.38
|
|
02
|
7 × 19
|
1/8
|
3.2
|
100 × 173
|
7.38
|
|
03
|
7 × 19
|
1/8
|
3.2
|
90 × 156
|
7.38
|
|
04
|
7 × 7
|
3/32
|
2.4
|
100 × 173
|
4.18
|
|
05
|
7 × 7
|
3/32
|
2.4
|
90 × 156
|
4.18
|
|
06
|
7 × 7
|
3/32
|
2.4
|
80 × 139
|
4.18
|
|
07
|
7 × 7
|
3/32
|
2.4
|
70 × 121
|
4.18
|
|
08
|
7 × 7
|
5/64
|
2
|
100 × 173
|
3.17
|
|
09
|
7 × 7
|
5/64
|
2
|
90 × 156
|
3.17
|
|
10
|
7 × 7
|
5/64
|
2
|
80 × 139
|
3.17
|
|
11
|
7 × 7
|
5/64
|
2
|
70 × 121
|
3.17
|
|
12
|
7 × 7
|
1/16
|
1.6
|
80 × 139
|
2.17
|
|
13
|
7 × 7
|
1/16
|
1.6
|
70 × 121
|
2.17
|
|
14
|
7 × 7
|
1/16
|
1.6
|
60 × 104
|
2.17
|
|
15
|
7 × 7
|
1/16
|
1.6
|
51 × 87
|
2.17
|
|
16
|
7 × 7
|
3/64
|
1.2
|
80 × 139
|
1.22
|
|
17 |
7 × 7
|
3/64
|
1.2
|
60 × 104
|
1.22
|
|
18
|
7 × 7
|
3/64
|
1.2
|
50 × 87
|
1.22
|
|
19
|
7 × 7
|
3/64
|
1.2
|
40 × 69
|
1.22
|
