| Place of Origin: | China |
|---|---|
| Brand Name: | YUNTONG |
| Certification: | CE |
| Model Number: | YT-2050F |
| Minimum Order Quantity: | 5 m2 |
| Price: | USD 11-30 /m2 |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 works day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000m2/week |
| Name: | Diamond Stainless Steel Aviary Wire Netting Zoo Flexible Rope Mesh | Size Of Hole: | 25*25 Mm- 300*300 Mm |
|---|---|---|---|
| Cable Structures: | 7*7 Or 7*19 | Application: | Protective Fence |
| Characteristic: | Anti-corrosion Non-rusting | Material: | 1.5mm 2.0 Mm 2.5 Mm 3.0 Mm 4.0 Mm |
| High Light: | Zoo Flexible Rope Mesh,Diamond Stainless Steel Aviary Wire Netting,Zoo Stainless Steel Aviary Mesh |
||

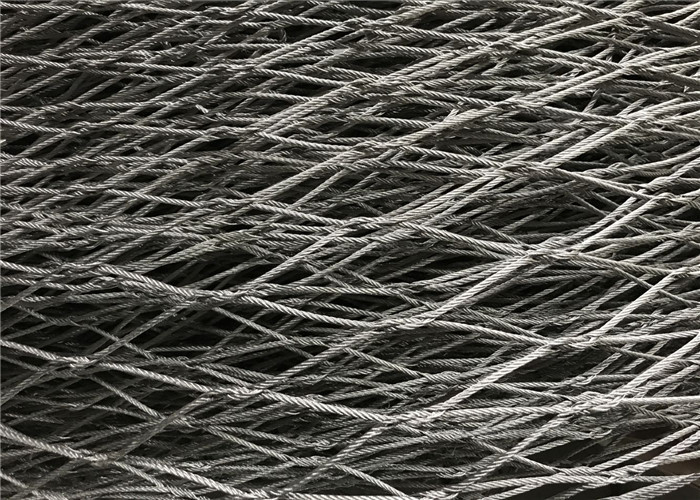

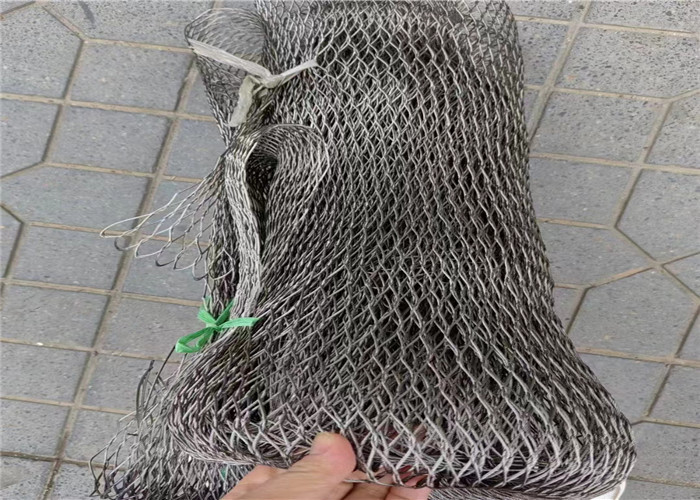

The type of Aviary wire netting
1.Knotted mesh is a kind of plain weave,each warp wire rope crosses alternately above and below each weft wire rope.Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style.The stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
| Flexible Stainless Steel Cable Mesh(Ferrule Type) | |||||
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break
|
||
| inch | mm | inch | mm |
ibs.
|
|
| YT-3212F | 1/8 | 3.2 | 4.75×8.23 | 120×207.8 | 1,600 |
| YT-3210F | 1/8 | 3.2 | 4×6.9 | 102×176.7 | 1,600 |
| YT-3211F | 1/8 | 3.2 | 3.5×6.15 | 90×156 | 1,600 |
| YT-3212F | 1/8 | 3.2 | 3×5.2 | 76×131.6 | 1,600 |
| YT-3213F | 1/8 | 3.2 | 2×3.46 | 51×88.3 | 1,600 |
| YT-3214F | 3/32 | 2.4 | 4×6.9 | 102×176.7 | 920 |
| YT-3215F | 3/32 | 2.4 | 3.55×6.15 | 90×156 | 920 |
| YT-3216F | 3/32 | 2.4 | 3×5.2 | 76×131.6 | 920 |
| YT-3217F | 3/32 | 2.4 | 2.4×4.16 | 60×104 | 920 |
| YT-3218F | 3/32 | 2.4 | 2×3.46 | 51×88.3 | 920 |
| YT-3219F | 5/64 | 2.0 | 3×5.2 | 76×131.6 | 676 |
| YT-3220F | 5/64 | 2.0 | 2.4×4.16 | 60×104 | 676 |
| YT-3221F | 5/64 | 2.0 | 2×3.46 | 51×88.3 | 676 |
| YT-3222F | 5/64 | 2.0 | 1-1/2×2.6 | 38×65.8 | 676 |
| YT-3223F | 1/16 | 1.6 | 1.2×2.08 | 76×131.6 | 480 |
| YT-3224F | 1/16 | 1.6 | 2×3.46 | 51×88.3 | 480 |
| YT-3225F | 1/16 | 1.6 | 1-1/2×2.6 | 38×65.8 | 480 |
| YT-3226F | 1/16 | 1.6 | 1.2×2.08 | 30×52 | 480 |
| YT-3227F | 1/16 | 1.6 | 1×1.73 | 25.4×44 | 480 |
| YT-3228F | 3/64 | 1.2 | 1-1/2×2.6 | 38×65.8 | 270 |
| YT-3229F | 3/64 | 1.2 | 1.2×2.08 | 30×52 | 270 |
| YT-3230F | 3/64 | 1.2 | 1×1.73 | 25.4×44 | 270 |
| YT-3231F | 3/64 | 1.2 | 4/5×1.39 | 20×34.6 | 270 |
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
