| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT--F-2550 |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Mesh Shape: | Rhombus , Diamond | Material: | Stainless Steel 304 , 316 , 316L |
|---|---|---|---|
| Mesh Angle: | 60 Degree | Hole Size: | 50x86mm , 60 X 104mm |
| Name: | Rope Mesh | Wire Rope: | 2.5mm , 3.0mm , 3.2mm |
| Highlight: | sus316 zoo mesh,high strength zoomesh,zoo knotted rope mesh |
||

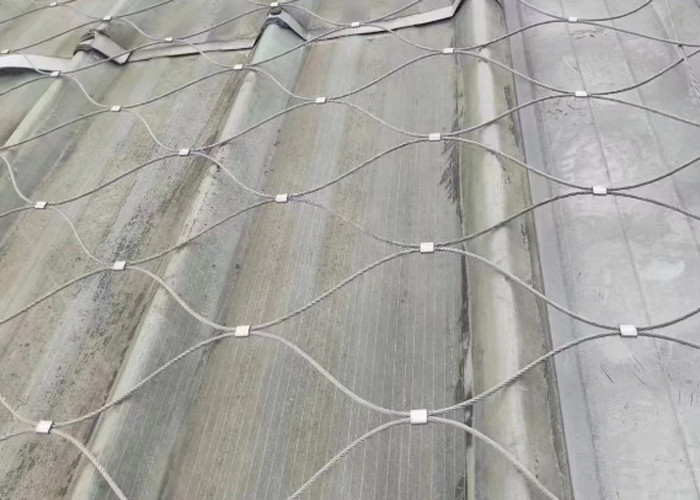

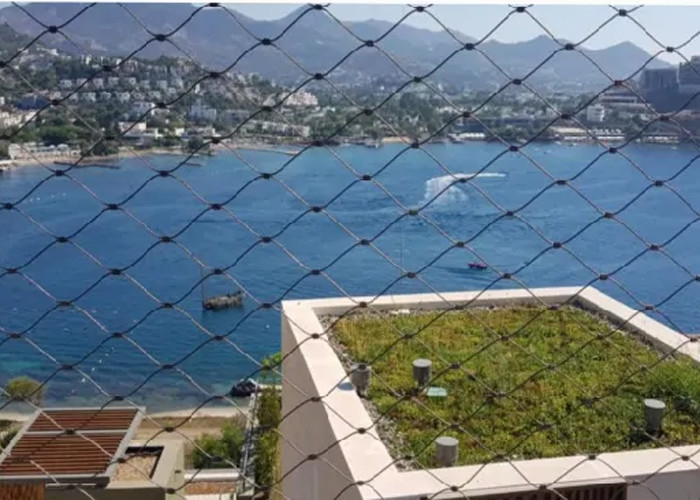

Rope Mesh Eagle Fencing Hole Size From 50 To 200mm
1.It’s malleable and flexible
Cable wire mesh has a fabric-like structure which makes it very useful for ‘wrapping’ around unusually shaped structures and shapes. Examples of this include being used to provide safety in car parks, at sports grounds and in children’s playgrounds.
2.A durable, low maintenance material
cable wire mesh is extremely durable and strong, made from marine grade 316 stainless steel, cable is suitable for projects that require longevity. Also, cable requires little to no maintenance after installation.
Advantage:
1.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2.Anti-corrosive, resist the rust, can be repeated use.
3.Resists chewing by rodents and other pests
4.This product can bear the heavy snow and the gale very much.
5.Without toxic material, safety, environmental protection.
Wire Rope Zoo Mesh Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Material of Wire Rope Zoo Mesh : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
