| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT--F-F |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Material: | Stainless Steel 304 , 316 , 316L | Mesh Orientation: | Horizontal , Vertical |
|---|---|---|---|
| Rope Constructions: | 7 X 7 , 7 X 19 , 1 X 19 | Product Name: | X-Tend Aviary Netting |
| Mesh Shape: | Rhombus , Diamond | Mesh Angle: | 60 Degree |
| Application: | Staircase Security , Balustrade Infill , Railing Safety | Panel Size: | Customized In Width And Length |
| Finished: | Ultrasonic Bath / Black Oxide | ||
| High Light: | woven zoo aviary netting,x tend zoo aviary netting,50mm hole zoo knotted rope mesh |
||
|
Specification
|
|
|
material
|
stainelss steel 304 316 316L etc.
|
|
wire diameter
|
1.2 - 6.0mm
|
|
feature
|
flexible, high-Strength
|
|
technique
|
woven wire mesh
|
|
mesh rolls size
|
1x30m 2x30m 4x30m or according to clients' requirements
|
|
structure
|
7*7 or 7*19
|
|
surface
|
flat and WYight
|

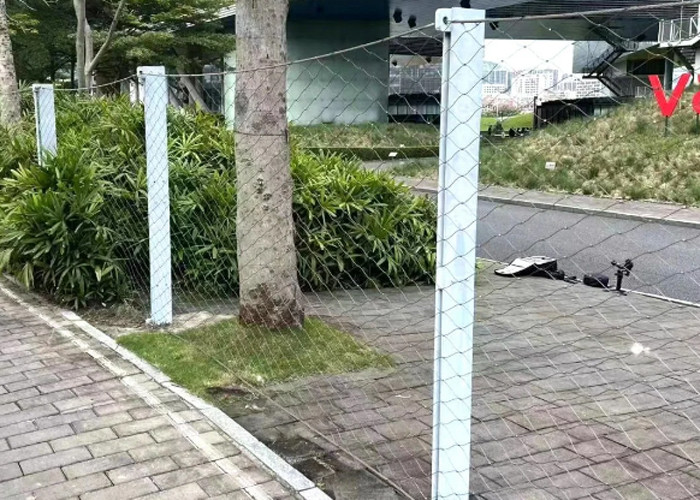

Aviary Netting is versatile in the application including zoo mesh, aviary mesh, decorative mesh, etc. It is also an ideal choice for indoor and outdoor railings such as stair railing, balustrade, guardrail and bridge railing.

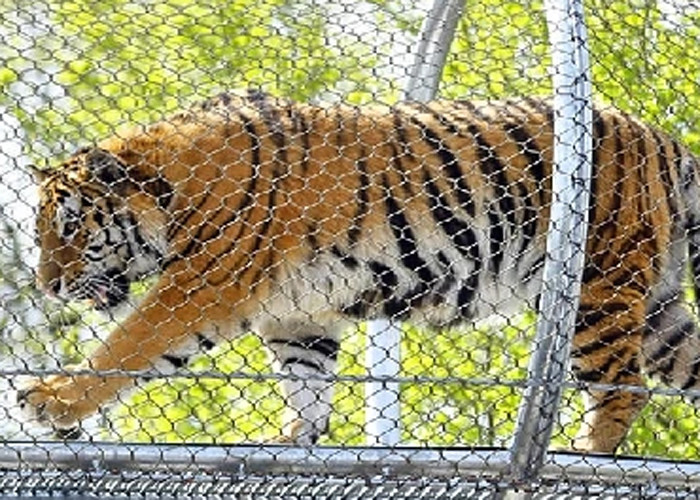

inter-woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span.
Depending on a project’s requirements, cable wire mesh can be painted in a number of colours in a range of finishes.
|
Model
|
Structure
|
Rope Diameter
|
Mesh Opening
|
|
2076
|
7*7 or 7*19
|
2.0mm
|
76*76mm
|
|
2051
|
7*7 or 7*19
|
2.0mm
|
51*51mm
|
|
1651
|
7*7 or 7*19
|
1.6mm
|
51*51mm
|
|
1638
|
7*7 or 7*19
|
1.6mm
|
38*38mm
|
|
1238
|
7*7 or 7*19
|
1.2mm
|
38*38mm
|
|
1230
|
7*7 or 7*19
|
1.2mm
|
30*30mm
|
|
1225
|
7*7 or 7*19
|
1.2mm
|
25*25mm
|
|
Code
|
Rope Construction
|
Rope Diameter
|
Opening Size
|
Breaking Force
|
||
|
Inch
|
mm
|
Inch
|
mm
|
KN
|
||
|
01
|
7 × 19
|
1/8
|
3.2
|
4.7" × 4.7"
|
120 × 120
|
7.38
|
|
02
|
7 × 19
|
1/8
|
3.2
|
4" × 4"
|
102 × 102
|
7.38
|
|
03
|
7 × 19
|
1/8
|
3.2
|
3.6" × 3.6"
|
90 × 90
|
7.38
|
|
04
|
7 × 19
|
1/8
|
3.2
|
3" × 3"
|
76 × 76
|
7.38
|
|
05
|
7 × 19
|
1/8
|
3.2
|
2" × 2"
|
51 × 51
|
7.38
|
|
06
|
7 × 7
|
3/32
|
2.4
|
4" × 4"
|
102 × 102
|
4.18
|
|
07
|
7 × 7
|
3/32
|
2.4
|
3.6" × 3.6"
|
90 × 90
|
4.18
|
|
08
|
7 × 7
|
3/32
|
2.4
|
3" × 3"
|
76 × 76
|
4.18
|
|
09
|
7 × 7
|
3/32
|
2.4
|
2.4" × 2.4"
|
60 × 60
|
4.18
|
|
10
|
7 × 7
|
3/32
|
2.4
|
2" × 2"
|
51 × 51
|
4.18
|
|
11
|
7 × 7
|
5/64
|
2
|
3" × 3"
|
76 × 76
|
3.17
|
|
12
|
7 × 7
|
5/64
|
2
|
2.4" × 2.4"
|
60 × 60
|
3.17
|
|
13 |
7 × 7
|
5/64
|
2
|
2" × 2"
|
51 × 51
|
3.17
|
|
14
|
7 × 7
|
5/64
|
2
|
1.5" × 1.5"
|
38 × 38
|
3.17
|
|
15
|
7 × 7
|
1/16
|
1.6
|
3" × 3"
|
76 × 76
|
2.17
|
|
16
|
7 × 7
|
1/16
|
1.6
|
2" × 2"
|
51 × 51
|
2.17
|
|
17
|
7 × 7
|
1/16
|
1.6
|
1.5" × 1.5"
|
38 × 38
|
2.17
|
|
18
|
7 × 7
|
1/16
|
1.6
|
1.2" × 1.2"
|
30 × 30
|
2.17
|
|
19
|
7 × 7
|
1/16
|
1.6
|
1" × 1"
|
25 × 25
|
2.17
|
|
20
|
7 × 7
|
3/64
|
1.2
|
2" × 2"
|
51 × 51
|
1.22
|
|
21
|
7 × 7
|
3/64
|
1.2
|
1.5" × 1.5"
|
38 × 38
|
1.22
|
|
22
|
7 × 7
|
3/64
|
1.2
|
1.2" × 1.2"
|
30 × 30
|
1.22
|
|
23
|
7 × 7
|
3/64
|
1.2
|
1" × 1"
|
25 × 25
|
1.22
|
|
24
|
7 × 7
|
3/64
|
1.2
|
0.8" × 0.8"
|
20 × 20
|
1.22
|
|
Code
|
Rope Construction
|
Rope Diameter
|
Aperture
|
Breaking Force
|
|
|
Inch
|
mm
|
mm
|
kN
|
||
|
01
|
7 × 19
|
1/8
|
3.2
|
120 × 208
|
7.38
|
|
02
|
7 × 19
|
1/8
|
3.2
|
100 × 173
|
7.38
|
|
03
|
7 × 19
|
1/8
|
3.2
|
90 × 156
|
7.38
|
|
04
|
7 × 7
|
3/32
|
2.4
|
100 × 173
|
4.18
|
|
05
|
7 × 7
|
3/32
|
2.4
|
90 × 156
|
4.18
|
|
06
|
7 × 7
|
3/32
|
2.4
|
80 × 139
|
4.18
|
|
07
|
7 × 7
|
3/32
|
2.4
|
70 × 121
|
4.18
|
|
08
|
7 × 7
|
5/64
|
2
|
100 × 173
|
3.17
|
|
09
|
7 × 7
|
5/64
|
2
|
90 × 156
|
3.17
|
|
10
|
7 × 7
|
5/64
|
2
|
80 × 139
|
3.17
|
|
11
|
7 × 7
|
5/64
|
2
|
70 × 121
|
3.17
|
|
12
|
7 × 7
|
1/16
|
1.6
|
80 × 139
|
2.17
|
|
13
|
7 × 7
|
1/16
|
1.6
|
70 × 121
|
2.17
|
|
14
|
7 × 7
|
1/16
|
1.6
|
60 × 104
|
2.17
|
|
15
|
7 × 7
|
1/16
|
1.6
|
51 × 87
|
2.17
|
|
16
|
7 × 7
|
3/64
|
1.2
|
80 × 139
|
1.22
|
|
17 |
7 × 7
|
3/64
|
1.2
|
60 × 104
|
1.22
|
|
18
|
7 × 7
|
3/64
|
1.2
|
50 × 87
|
1.22
|
|
19
|
7 × 7
|
3/64
|
1.2
|
40 × 69
|
1.22
|
