Ferruled And Woven Zoo Wire Mesh With 2mm In 50mm Aperture

Ferruled And Woven Zoo Wire Mesh With 2mm In 50mm Aperture
Ferruled And Woven Zoo Wire Mesh With 2mm In 50mm Aperture Ferruled And Woven Zoo Wire Mesh With 2mm In 50mm Aperture
Basic Information
Place of Origin: Hebei
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT--F-F
Minimum Order Quantity: 10 Sqm
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 300Sqm/Week
Contact Now
Rope Constructions: 7 X 7 , 7 X 19 , 1 X 19 Material: Stainless Steel 304 , 316 , 316L
Wire Diameter: 1.2 Mm To 4.0 Mm Mesh Shape: Rhombus , Diamond
Finished: Ultrasonic Bath / Black Oxide Mesh Orientation: Horizontal , Vertical
Panel Size: Customized In Width And Length Product Name: Zoo Wie Mesh
Application: Staircase Security , Balustrade Infill , Railing Safety
High Light:

sus316 zoo mesh

,

high strength zoomesh

,

zoo knotted rope mesh

ferruled and woven zoo wire mesh with 2mm in 50mm aperture

Product Description





Specification
material
stainelss steel 304 316 316L etc.
wire diameter
1.2 - 6.0mm
feature
flexible, high-Strength
technique
woven wire mesh
mesh rolls size
1x30m 2x30m 4x30m or according to clients' requirements
structure
7*7 or 7*19
surface
flat and WYight
Ferruled And Woven Zoo Wire Mesh With 2mm In 50mm Aperture 0
Model
Structure
Rope Diameter
Mesh Opening
2076
7*7 or 7*19
2.0mm
76*76mm
2051
7*7 or 7*19
2.0mm
51*51mm
1651
7*7 or 7*19
1.6mm
51*51mm
1638
7*7 or 7*19
1.6mm
38*38mm
1238
7*7 or 7*19
1.2mm
38*38mm
1230
7*7 or 7*19
1.2mm
30*30mm
1225
7*7 or 7*19
1.2mm
25*25mm

zoo wire mesh is woven by hand from the left to the right, which integrates the breaking force and toughness of the wire rope to the mesh surface.

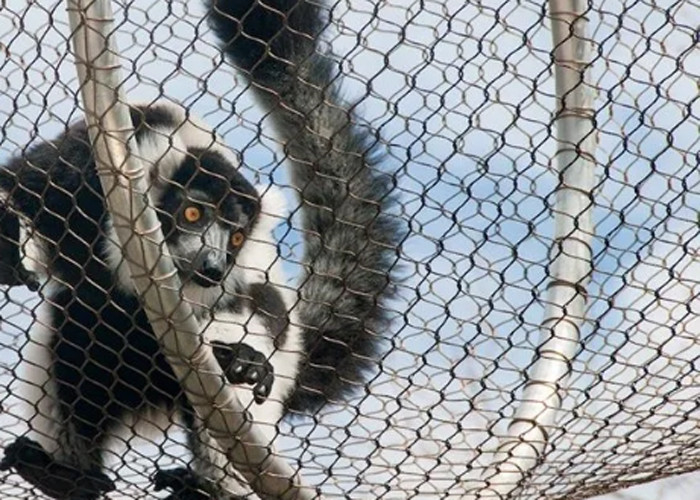

zoo wire mesh has high tensile resistance, and can be easily and safely isolated and protected against large animals, lions, tigers, bears, eagles and other predators with strong attack ability in the zoo, zoo wire mesh is corrosion-resistant and does not rust;

Code
Rope Construction
Rope Diameter
Opening Size
Breaking Force
Inch
mm
Inch
mm
KN
01
7 × 19
1/8
3.2
4.7" × 4.7"
120 × 120
7.38
02
7 × 19
1/8
3.2
4" × 4"
102 × 102
7.38
03
7 × 19
1/8
3.2
3.6" × 3.6"
90 × 90
7.38
04
7 × 19
1/8
3.2
3" × 3"
76 × 76
7.38
05
7 × 19
1/8
3.2
2" × 2"
51 × 51
7.38
06
7 × 7
3/32
2.4
4" × 4"
102 × 102
4.18
07
7 × 7
3/32
2.4
3.6" × 3.6"
90 × 90
4.18
08
7 × 7
3/32
2.4
3" × 3"
76 × 76
4.18
09
7 × 7
3/32
2.4
2.4" × 2.4"
60 × 60
4.18
10
7 × 7
3/32
2.4
2" × 2"
51 × 51
4.18
11
7 × 7
5/64
2
3" × 3"
76 × 76
3.17
12
7 × 7
5/64
2
2.4" × 2.4"
60 × 60
3.17

          13
7 × 7
5/64
2
2" × 2"
51 × 51
3.17
14
7 × 7
5/64
2
1.5" × 1.5"
38 × 38
3.17
15
7 × 7
1/16
1.6
3" × 3"
76 × 76
2.17
16
7 × 7
1/16
1.6
2" × 2"
51 × 51
2.17
17
7 × 7
1/16
1.6
1.5" × 1.5"
38 × 38
2.17
18
7 × 7
1/16
1.6
1.2" × 1.2"
30 × 30
2.17
19
7 × 7
1/16
1.6
1" × 1"
25 × 25
2.17
20
7 × 7
3/64
1.2
2" × 2"
51 × 51
1.22
21
7 × 7
3/64
1.2
1.5" × 1.5"
38 × 38
1.22
22
7 × 7
3/64
1.2
1.2" × 1.2"
30 × 30
1.22
23
7 × 7
3/64
1.2
1" × 1"
25 × 25
1.22
24
7 × 7
3/64
1.2
0.8" × 0.8"
20 × 20
1.22

Code
Rope Construction
Rope Diameter
Aperture
Breaking Force
Inch
mm
mm
kN
01
7 × 19
1/8
3.2
120 × 208
7.38
02
7 × 19
1/8
3.2
100 × 173
7.38
03
7 × 19
1/8
3.2
90 × 156
7.38
04
7 × 7
3/32
2.4
100 × 173
4.18
05
7 × 7
3/32
2.4
90 × 156
4.18
06
7 × 7
3/32
2.4
80 × 139
4.18
07
7 × 7
3/32
2.4
70 × 121
4.18
08
7 × 7
5/64
2
100 × 173
3.17
09
7 × 7
5/64
2
90 × 156
3.17
10
7 × 7
5/64
2
80 × 139
3.17
11
7 × 7
5/64
2
70 × 121
3.17
12
7 × 7
1/16
1.6
80 × 139
2.17
13
7 × 7
1/16
1.6
70 × 121
2.17
14
7 × 7
1/16
1.6
60 × 104
2.17
15
7 × 7
1/16
1.6
51 × 87
2.17
16
7 × 7
3/64
1.2
80 × 139
1.22

         17
7 × 7
3/64
1.2
60 × 104
1.22
18
7 × 7
3/64
1.2
50 × 87
1.22
19
7 × 7
3/64
1.2
40 × 69
1.22
Ferruled And Woven Zoo Wire Mesh With 2mm In 50mm Aperture 1
Ferruled And Woven Zoo Wire Mesh With 2mm In 50mm Aperture 2
Ferruled And Woven Zoo Wire Mesh With 2mm In 50mm Aperture 3
Ferruled And Woven Zoo Wire Mesh With 2mm In 50mm Aperture 4
