| Place of Origin: | China |
|---|---|
| Brand Name: | YUNTONG |
| Certification: | CE |
| Model Number: | YT-F2560 |
| Minimum Order Quantity: | 5 |
| Price: | USD 5-25/m2 |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000m2/week |
| Material: | SUS 304 SUS 316 | Wire Diameter: | 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm |
|---|---|---|---|
| Size Of Hole: | 25*25mm-300*300mm | Height: | Customized |
| Length: | Customized | Characteristic: | Anti-corrosion Non-rusting Anti Acid And Alkali |
| Application: | Protective, Fall Prevention | Weave Style: | Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled |
| High Light: | bridge flexible stainless steel cable netting,4mm flexible stainless steel cable netting,4mm flexible stainless steel cable mesh |
||

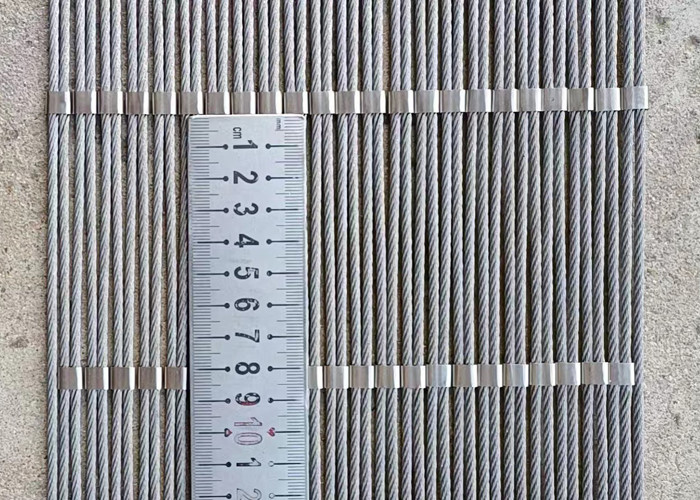

Bridge Flexible Stainless Steel Cable Netting Anti Alkali 4.0 mm Wire

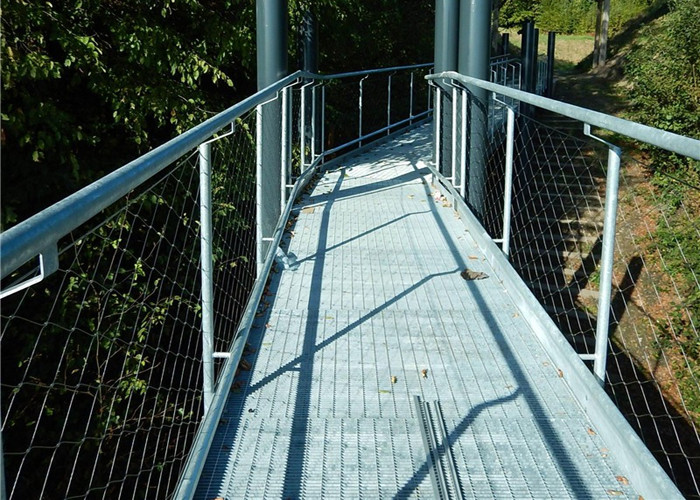

The Stainless Steel cable mesh For Bridge Protection are hand-made from the stainless steel wire rope, cable Mesh Description is custom manufactured to in widths and lengths to suit the balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.
1. Specification as follows:
Material: ss304 ss316
Mesh type: 1.Woven 2. Ferrule mesh
cable structures:7 x7, 7 x19
Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm 6.0mm etc.
Mesh aperture: 25*25mm -300*300mm etc.
Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.
it is customized.
|
Stainless Steel Wire Rope Mesh The mesh width OW,refer to the distance from the middle of one ferrule to the next ferrule along the cable, net geometry is optimized, when the resulting diameter can be divided into two equilateral triangles with 60 corners. |
|||||
| Mesh Aperture | Wire Diameter | ||||
| OW x OH (mm) | 1.2 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm |
| 20 x 35 | YT-1220 F | ||||
| 25 x 45 | YT-1225 F | YT-1525 F | |||
| 35 x 61 | YT-1235 F | YT-1535 F | YT-2035 F | ||
| 40 x 70 | YT-1240 F | YT-1540 F | YT-2040 F | YT-3040 F | |
| 50 x 90 | YT-1250 F | YT-1550 F | YT-2050 F | YT-3050 F | YT-4050 F |
| 60 x 105 | YT-1260 F | YT-1560 F | YT-2060 F | YT-3060 F | YT-4060 F |
| 70 x 120 | YT-1270 F | YT-1570 F | YT-2070 F | YT-3070 F | YT-4070 F |
| 80 x 140 | YT-1280 F | YT-1580 F | YT-2080 F | YT-3080 F | YT-4080 F |
| 100 x 175 | YT-12100 F | YT-15100 F | YT-20100 F | YT-30100 F | YT-40100 F |
| 120 x 210 | YT-12120 F | YT-15120 F | YT-20120 F | YT-30120 F | YT-40120 F |
| 160 x 280 | YT-12160 F | YT-15160 F | YT-20160 F | YT-30160 F | YT-40160 F |
| 180 x 315 | YT-12180 F | YT-15180 F | YT-20180 F | YT-30180 F | YT-40180 F |
| 200 x 350 | YT-12200 F | YT-15200 F | YT-20200 F | YT-30200 F | YT-40200 F |
| 250 x 450 | YT-12250 F | YT-15250 F | YT-20250 F | YT-30250 F | YT-40250 F |
| 300 x 525 | YT-12300 F | YT-15300 F | YT-20300 F | YT-30300 F | YT-40300 F |
2. cable structures and mesh type:
1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
4.Application:
It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
5. Advantage:
1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors a good view of sight.
2. Flexibility: the smooth mesh surface can get in close contact with animal’s fur and feather without damaging them and meanwhile guarantees enough tensile strength.
3. Its rust and corrosion resistant and maintenance-free features as well as ultra-long service life can provide a beautiful site and reduces the zoo’s operating costs. One-time investment provides permanent use—its comprehensive profits outperform other competitive products greatly.
4. Light weight; flexible; anti-fatigue; great tensile strength; simple structure; environment friendly; non-poisonous and recyclable; easy for transportation and installation; no deformation after long-time service.
6. Accessory:
7. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
8. Company:
Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Located in the native land of wire mesh in China. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.
Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.
9. Factory :
