| Place of Origin: | China |
|---|---|
| Brand Name: | YUNTONG |
| Certification: | CE |
| Model Number: | YT-F2050 |
| Minimum Order Quantity: | 5 |
| Price: | USD 10-38/m2 |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000m2/week |
| Material: | SUS 304 SUS 316 | Wire Diameter: | 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm |
|---|---|---|---|
| Size Of Hole: | 25x25mm-300*300mm | Height: | Customized |
| Length: | Customized | Characteristic: | Anti-corrosion Non-rusting Anti Acid And Alkali |
| Application: | Protective, Fall Prevention | Weave Style: | Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled |
| High Light: | 25x25mm flexible stainless steel cable mesh,versatile flexible stainless steel cable mesh,25x25mm stainless steel ferrule mesh |
||
Versatile Rope Ladder Mesh for Zoo Applications - Good Flexibility

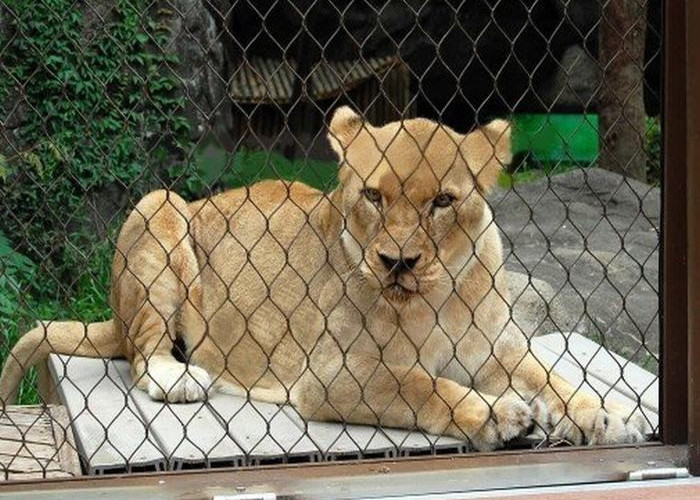

Stainless Steel Animal Enclosure Mesh is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension. The stainless steel zoo mesh is available in sizes from 25 x 25mm (1" x 1") to 125 x 125mm (5" x 5"). In wire from 1.2mm to 3.2mm (3/64" to 1/8") in stainless steel. The hand woven netting is manufactured in 7 x 7 type 304 stainless steel to your requirements.
1. Specification List:
Material: SUS 304 SUS 316
Cable Structure:7x7 and 7x19
Cable Diameter:1/8", 3/32", 1/16", and 3/64".
Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
Height: general 0.5-30meter
Length: general 0.5-30mete
|
Anping Yuntong Metal Wire Mesh Co.,Ltd Flexible Stainless Steel Cable Mesh(Ferrule Type) |
|||||||
| Code | Rope Construction | Min Breaking Load (KN) | Rope Diameter | Aperture | Aplication | ||
| Inch | mm | Inch | mm | ||||
| 1 | 7× 19 | 7.38 | 1/8 | 3.2 | 6”×6” | 152× 152 |
It can used in the following areas: stair railing,balustrade infill, architectural surface plant climbing net, Aviary Mesh, Bird Netting,Animal Enclosure, Zoo Mesh,Agriculture,Residential,Sports, Etc.
|
| 2 | 7× 19 | 7.38 | 1/8 | 3.2 | 5”×5” | 127×127 | |
| 3 | 7× 19 | 7.38 | 1/8 | 3.2 | 4.7”×4.7” | 120×120 | |
| 4 | 7× 19 | 7.38 | 1/8 | 3.2 | 4”×4” | 102×102 | |
| 5 | 7× 19 | 7.38 | 1/8 | 3.2 | 3.6”×3.6” | 90×90 | |
| 6 | 7× 19 | 7.38 | 1/8 | 3.2 | 3”×3” | 76×76 | |
| 7 | 7× 19 | 7.38 | 1/8 | 3.2 | 2.4”×2.4” | 60×60 | |
| 8 | 7× 19 | 7.38 | 1/8 | 3.2 | 2”×2” | 51×51 | |
| 9 | 7× 7 | 4.18 | 3/32 | 2.4 | 6”×6” | 152× 152 | |
| 10 | 7× 7 | 4.18 | 3/32 | 2.4 | 5”×5” | 127×127 | |
| 11 | 7× 7 | 4.18 | 3/32 | 2.4 | 4”×4” | 102×102 | |
| 12 | 7× 7 | 4.18 | 3/32 | 2.4 | 3.6”×3.6” | 90×90 | |
| 13 | 7× 7 | 4.18 | 3/32 | 2.4 | 3”×3” | 76×76 | |
| 14 | 7× 7 | 4.18 | 3/32 | 2.4 | 2.4”×2.4” | 60×60 | |
| 15 | 7× 7 | 4.18 | 3/32 | 2.4 | 2”×2” | 51×51 | |
| 16 | 7× 7 | 3.17 | 5/64 | 2 | 3”×3” | 76×76 | |
| 17 | 7× 7 | 3.17 | 5/64 | 2 | 2.4”×2.4” | 60×60 | |
| 18 | 7× 7 | 3.17 | 5/64 | 2 | 2”×2” | 51×51 | |
| 19 | 7× 7 | 3.17 | 5/64 | 2 | 1.5”×1.5” | 38×38 | |
| 20 | 7× 7 | 2.17 | 1/16 | 1.6 | 4”×4” | 102×102 | |
| 21 | 7× 7 | 2.17 | 1/16 | 1.6 | 3”×3” | 76×76 | |
| 22 | 7× 7 | 2.17 | 1/16 | 1.6 | 2.4”×2.4” | 60×60 | |
| 23 | 7× 7 | 2.17 | 1/16 | 1.6 | 2”×2” | 51×51 | |
| 24 | 7× 7 | 2.17 | 1/16 | 1.6 | 1.5”×1.5” | 38×38 | |
| 25 | 7× 7 | 2.17 | 1/16 | 1.6 | 1.2”×1.2” | 30×30 | |
| 26 | 7× 7 | 2.17 | 1/16 | 1.6 | 1”×1” | 25.4×25.4 | |
| 27 | 7× 7 | 1.22 | 3/64 | 1.2 | 4”×4” | 102×102 | |
| 28 | 7× 7 | 1.22 | 3/64 | 1.2 | 3”×3” | 76×76 | |
| 29 | 7× 7 | 1.22 | 3/64 | 1.2 | 2”×2” | 51×51 | |
| 30 | 7× 7 | 1.22 | 3/64 | 1.2 | 1.5”×1.5” | 38×38 | |
| 31 | 7× 7 | 1.22 | 3/64 | 1.2 | 1.2”×1.2” | 30×30 | |
| 32 | 7× 7 | 1.22 | 3/64 | 1.2 | 1”×1” | 25.4×25.4 | |
2.Application:
Aviary Mesh, Bird Netting, Animal Enclosure, Zoo Mesh, Agriculture, Residential, Sports, Fall Security, etc.
3. Advantage:

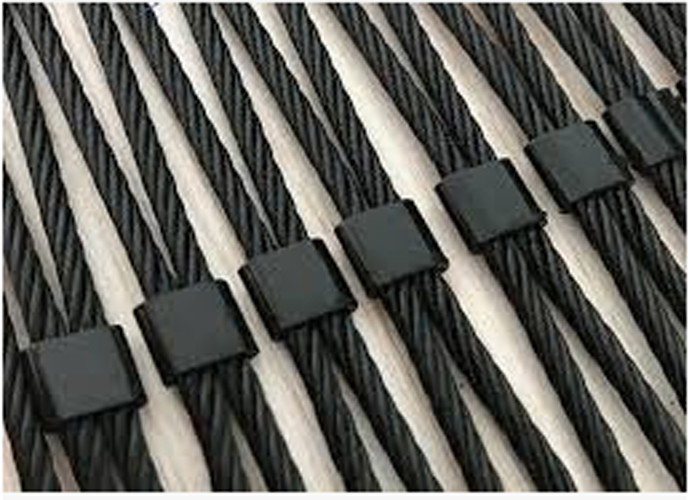

1.The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested – especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and
installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.
4. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
