Hanging Safety 25×25mm Wire Rope Mesh Net Flexibility Anti Acid
Hanging safety netting flexibility stainless steel Anti AcidThe flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can safely contain any species on land, in the air indoors or out. The weave opening can be infinitely customized to meet your exact specifications. No matter how large, how small, or how cunning your specimens are, we assure their complete security.
Specifications
Material Options
SS304, SS316
Mesh Types
Cable Structure
7×7 and 7×19
Cable Diameter Options
1/8", 3/32", 1/16", and 3/64"
Mesh Size Options
1"×1", 1-1/2"×1-1/2", 2"×2", 3"×3", and 4"×4"
Dimensions
Height: 0.5-30 meters (customizable)
Length: 0.5-30 meters (customizable)
Shape: Irregular shapes available including triangle, parallelogram, trapezoid
Flexible Stainless Steel Cable Mesh (Ferrule Type) Specifications
| Item No. | Cable Diameter | Mesh Opening Size | Normal Break |
|---|
| inch | mm | inch | mm | lbs. |
|---|
| YT-3212F | 1/8 | 3.2 | 4.75×8.23 | 120×207.8 | 1,600 |
| YT-3210F | 1/8 | 3.2 | 4×6.9 | 102×176.7 | 1,600 |
| YT-3211F | 1/8 | 3.2 | 3.5×6.15 | 90×156 | 1,600 |
| YT-3212F | 1/8 | 3.2 | 3×5.2 | 76×131.6 | 1,600 |
| YT-3213F | 1/8 | 3.2 | 2×3.46 | 51×88.3 | 1,600 |
| YT-3214F | 3/32 | 2.4 | 4×6.9 | 102×176.7 | 920 |
| YT-3215F | 3/32 | 2.4 | 3.55×6.15 | 90×156 | 920 |
| YT-3216F | 3/32 | 2.4 | 3×5.2 | 76×131.6 | 920 |
| YT-3217F | 3/32 | 2.4 | 2.4×4.16 | 60×104 | 920 |
| YT-3218F | 3/32 | 2.4 | 2×3.46 | 51×88.3 | 920 |
| YT-3219F | 5/64 | 2.0 | 3×5.2 | 76×131.6 | 676 |
| YT-3220F | 5/64 | 2.0 | 2.4×4.16 | 60×104 | 676 |
| YT-3221F | 5/64 | 2.0 | 2×3.46 | 51×88.3 | 676 |
| YT-3222F | 5/64 | 2.0 | 1-1/2×2.6 | 38×65.8 | 676 |
| YT-3223F | 1/16 | 1.6 | 1.2×2.08 | 76×131.6 | 480 |
| YT-3224F | 1/16 | 1.6 | 2×3.46 | 51×88.3 | 480 |
| YT-3225F | 1/16 | 1.6 | 1-1/2×2.6 | 38×65.8 | 480 |
| YT-3226F | 1/16 | 1.6 | 1.2×2.08 | 30×52 | 480 |
| YT-3227F | 1/16 | 1.6 | 1×1.73 | 25.4×44 | 480 |
| YT-3228F | 3/64 | 1.2 | 1-1/2×2.6 | 38×65.8 | 270 |
| YT-3229F | 3/64 | 1.2 | 1.2×2.08 | 30×52 | 270 |
| YT-3230F | 3/64 | 1.2 | 1×1.73 | 25.4×44 | 270 |
| YT-3231F | 3/64 | 1.2 | 4/5×1.39 | 20×34.6 | 270 |
Cable Structures and Mesh Types
1. Knotted Mesh
A kind of plain weave where each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

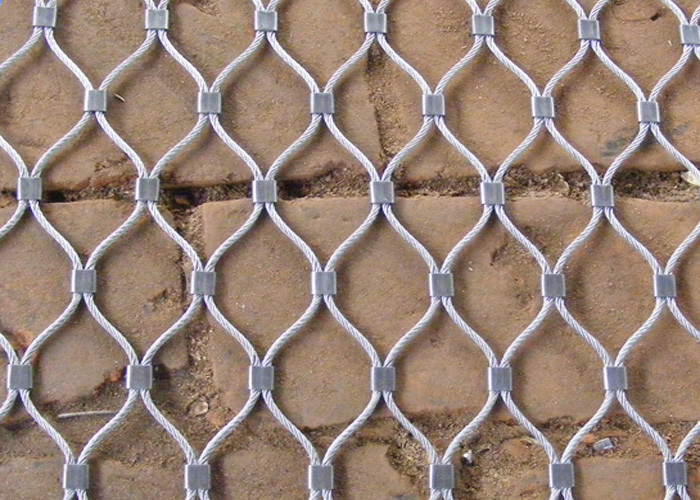

2. Ferruled Mesh
Has the same physical properties as knotted mesh, with the only difference being the combination style. The stainless wire ropes are combined by ferrules made of the same grade stainless steel.
3. Product Introduction

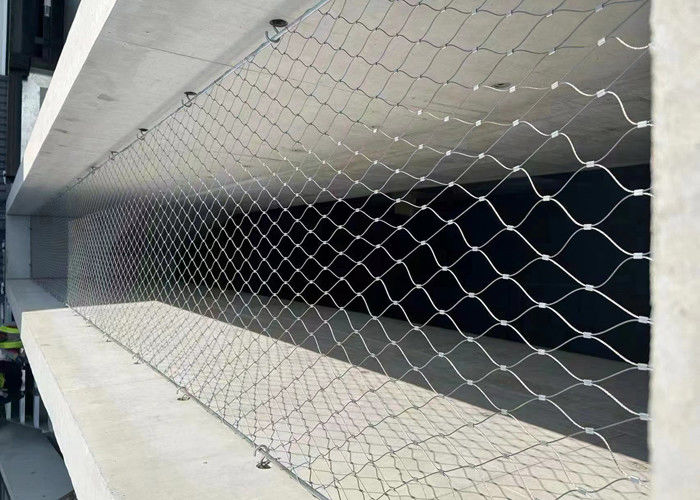

The stainless steel cable mesh, especially the ferrule type mesh, is widely used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product in architectural decoration and protection, stainless steel rope mesh has provided modern architectural decoration and horticulture engineering with a new and stylish element, which is getting more appreciated by designers and clients worldwide.
Applications
Widely used in: Animal enclosure mesh, animal cages, bird netting, agriculture, residential areas, sports facilities, stairway and fall security, etc.
Advantages
| Good Visibility & Transparency | No sense of bondage, gives animals a free living environment while providing visitors with excellent visibility. |
| Flexibility | The smooth mesh surface can get in close contact with animal's fur and feather without damaging them while guaranteeing sufficient tensile strength. |
| Corrosion Resistance | Rust and corrosion resistant, maintenance-free with ultra-long service life, reducing operating costs while maintaining aesthetic appeal. |
| Structural Benefits | Light weight, flexible, anti-fatigue, great tensile strength, simple structure, environmentally friendly, non-toxic and recyclable, easy for transportation and installation, no deformation after long-time service. |
Installation Drawings
Packing and Delivery
Packing: Paper carton, wooden case
Delivery: By FedEx, DHL, UPS, TNT EMS, by air, Door-to-Door or by sea.
About Our Company
Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire, located in the native land of wire mesh in China. Our main products include various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh, metal curtain, and aluminum decorative mesh.
Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and Southeast Asian countries. We have established long-term relationships with suppliers and earned trust from users worldwide.
Yuntong aims to become one of the first-class companies integrating scientific research, production and management. Our goods are high in quality at favorable prices, produced according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other regions.
