| Place of Origin: | China |
|---|---|
| Brand Name: | YUNTONG |
| Certification: | CE |
| Model Number: | YT-F3060 |
| Minimum Order Quantity: | 5 |
| Price: | USD 5-25/m2 |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000m2/week |
| Material: | SUS 304 SUS 316 | Wire Diameter: | 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm |
|---|---|---|---|
| Size Of Hole: | 25*25mm-300*300mm | Height: | Customized |
| Length: | Customized | Characteristic: | Anti-corrosion Non-rusting Anti Acid And Alkali |
| Application: | Protective, Fall Prevention | Weave Style: | Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled |
| High Light: | Balustrade Cable Mesh Anti Corrosion,Stainless Steel Rope Netting 2.0mm,Balustrade Cable Mesh 2.0mm |
||

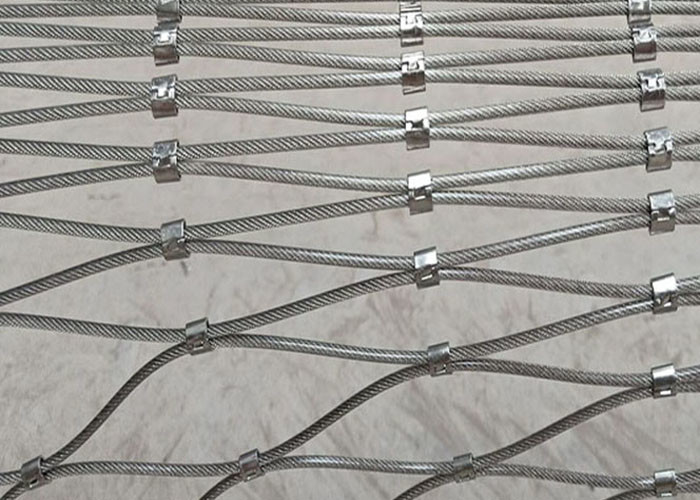

Rope Mesh Fence with Stainless Steel Rope Cable Netting 2.0mm Anti Corrosion
Stainless steel wire rope fence mesh is also known as safety netting system. It is widely used in slope reinforcement.The system,mainly made up of wire ,enjoy the basic functions to cover (initiative protection) and intercept (passive protection) so as to defend various geological disasters.
1. Specification as follows:
Material: ss304 ss316
Mesh type: 1.Woven 2. Ferrule mesh
CableStructure:7x7 and 7x19
CableDiameter:1/8", 3/32", 1/16", and 3/64".
Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.
|
Anping Yuntong Metal Wire Mesh Co.,Ltd Flexible Stainless Steel Cable Mesh(Ferrule Type) |
|||||||
| Code | Rope Construction | Min Breaking Load (KN) | Rope Diameter | Aperture | Aplication | ||
| Inch | mm | Inch | mm | ||||
| 1 | 7× 19 | 7.38 | 1/8 | 3.2 | 6”×6” | 152× 152 |
It can used in the following areas: stair railing,balustrade infill, architectural surface plant climbing net, Aviary Mesh, Bird Netting,Animal Enclosure, Zoo Mesh,Agriculture,Residential,Sports, Etc.
|
| 2 | 7× 19 | 7.38 | 1/8 | 3.2 | 5”×5” | 127×127 | |
| 3 | 7× 19 | 7.38 | 1/8 | 3.2 | 4.7”×4.7” | 120×120 | |
| 4 | 7× 19 | 7.38 | 1/8 | 3.2 | 4”×4” | 102×102 | |
| 5 | 7× 19 | 7.38 | 1/8 | 3.2 | 3.6”×3.6” | 90×90 | |
| 6 | 7× 19 | 7.38 | 1/8 | 3.2 | 3”×3” | 76×76 | |
| 7 | 7× 19 | 7.38 | 1/8 | 3.2 | 2.4”×2.4” | 60×60 | |
| 8 | 7× 19 | 7.38 | 1/8 | 3.2 | 2”×2” | 51×51 | |
| 9 | 7× 7 | 4.18 | 3/32 | 2.4 | 6”×6” | 152× 152 | |
| 10 | 7× 7 | 4.18 | 3/32 | 2.4 | 5”×5” | 127×127 | |
| 11 | 7× 7 | 4.18 | 3/32 | 2.4 | 4”×4” | 102×102 | |
| 12 | 7× 7 | 4.18 | 3/32 | 2.4 | 3.6”×3.6” | 90×90 | |
| 13 | 7× 7 | 4.18 | 3/32 | 2.4 | 3”×3” | 76×76 | |
| 14 | 7× 7 | 4.18 | 3/32 | 2.4 | 2.4”×2.4” | 60×60 | |
| 15 | 7× 7 | 4.18 | 3/32 | 2.4 | 2”×2” | 51×51 | |
| 16 | 7× 7 | 3.17 | 5/64 | 2 | 3”×3” | 76×76 | |
| 17 | 7× 7 | 3.17 | 5/64 | 2 | 2.4”×2.4” | 60×60 | |
| 18 | 7× 7 | 3.17 | 5/64 | 2 | 2”×2” | 51×51 | |
| 19 | 7× 7 | 3.17 | 5/64 | 2 | 1.5”×1.5” | 38×38 | |
| 20 | 7× 7 | 2.17 | 1/16 | 1.6 | 4”×4” | 102×102 | |
| 21 | 7× 7 | 2.17 | 1/16 | 1.6 | 3”×3” | 76×76 | |
| 22 | 7× 7 | 2.17 | 1/16 | 1.6 | 2.4”×2.4” | 60×60 | |
| 23 | 7× 7 | 2.17 | 1/16 | 1.6 | 2”×2” | 51×51 | |
| 24 | 7× 7 | 2.17 | 1/16 | 1.6 | 1.5”×1.5” | 38×38 | |
| 25 | 7× 7 | 2.17 | 1/16 | 1.6 | 1.2”×1.2” | 30×30 | |
| 26 | 7× 7 | 2.17 | 1/16 | 1.6 | 1”×1” | 25.4×25.4 | |
| 27 | 7× 7 | 1.22 | 3/64 | 1.2 | 4”×4” | 102×102 | |
| 28 | 7× 7 | 1.22 | 3/64 | 1.2 | 3”×3” | 76×76 | |
| 29 | 7× 7 | 1.22 | 3/64 | 1.2 | 2”×2” | 51×51 | |
| 30 | 7× 7 | 1.22 | 3/64 | 1.2 | 1.5”×1.5” | 38×38 | |
| 31 | 7× 7 | 1.22 | 3/64 | 1.2 | 1.2”×1.2” | 30×30 | |
| 32 | 7× 7 | 1.22 | 3/64 | 1.2 | 1”×1” | 25.4×25.4 | |
2. Introduce:
The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customized to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
3.Application:
It widely used in the following areas: Fence, Garden fence, Aviary Mesh, Bird Netting,Animal Enclosure, Zoo Mesh,Agriculture,Residential Fence, stair railing, balustrade infill, architectural surface plant climbing net, Etc.
5. Advantage:
|
1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors a good view of sight.
|
| 2. Flexibility: the smooth mesh surface can get in close contact with animal’s fur and feather without damaging them and meanwhile guarantees enough tensile strength. |
| 3. Its rust and corrosion resistant and maintenance-free features as well as ultra-long service life can provide a beautiful site and reduces the zoo’s operating costs. One-time investment provides permanent use—its comprehensive profits outperform other competitive products greatly. |
| 4. Light weight; flexible; anti-fatigue; great tensile strength; simple structure; environment friendly; non-poisonous and recyclable; easy for transportation and installation; no deformation after long-time service. |
6. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
7. Company:
Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Located in the native land of wire mesh in China. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.
Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.
