CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM

Basic Information
Place of Origin: China
Brand Name: YUNTONG
Certification: CE
Model Number: YT-F3060
Minimum Order Quantity: 5
Price: USD 5-25/m2
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000m2/week
Material: SUS 304 SUS 316 Wire Diameter: 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole: 25*25mm-300*300mm Height: Customized
Length: Customized Characteristic: Anti-corrosion Non-rusting Anti Acid And Alkali
Application: Protective, Fall Prevention Weave Style: Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
High Light:

Stainless Steel Cable Netting 2.0MM

,

CE SUS304 Stainless Steel Cable Netting

,

stainless steel wire rope mesh 2.0MM

PVC-coated + Stainless Steel Cable Netting with Rope Mesh 2.0 MM



Stainless steel wire rope fence mesh is also known as safety netting system. It is widely used in slope reinforcement.The system,mainly made up of wire ,enjoy the basic functions to cover (initiative protection) and intercept (passive protection) so as to defend various geological disasters.



1. Specification as follows:
Material: Inside ss304 ss316 Outside PVC coated
Mesh type: 1.Woven 2. Ferrule mesh

CableStructure:7x7 and 7x19

CableDiameter:1/8", 3/32", 1/16", and 3/64".

Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"

Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.

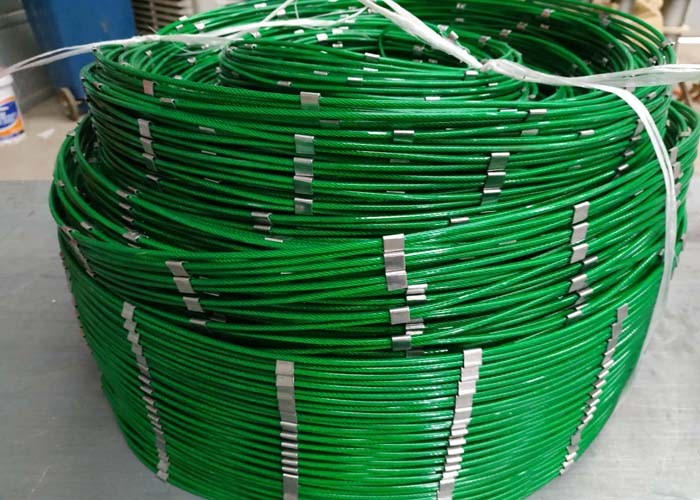

CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 0

Flexible Stainless Steel Wire Rope Mesh(Ferrule Type)
Item No.s Cable Diameter

Mesh Opening Size

(W×H)

Normal Break



  inch mm inch mm ibs.
YT-3212F 1/8 3.2 4.75×4.75 120×120 1,600
YT-3210F 1/8 3.2 4×4 102×102 1,600
YT-3290F 1/8 3.2 3.55×3.55 90×90 1,600
YT-3250F 1/8 3.2 2×2 51×51 1,600
YT-2510F 3/32 2.4 4×4 102×102 920
YT-2490F 3/32 2.4 3.55×3.55 90×90 920
YT-2560F 3/32 2.4 2.4×2.4 60×60 920
YT-2550F 3/32 2.4 2×2 51×51 920
YT-2060F 5/64 2.0 2.4×2.4 60×60 676
YT-2050F 5/64 2.0 2 51×51 676
YT-1680F 1/16 1.6 3.15 80*80 480
YT-1650F 1/16 1.6 2×2 51×51 480
YT-1630F 1/16 1.6 1.2×1.2 30×30 480
YT-1625F 1/16 1.6 1×1 25.4×25.4 480





2.Ferruled mesh



It is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.


CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 1
3. Introduce:

The stainless steel cable mesh,especially the ferrule type mesh,are more used in fields like balustrades on bridges and staircases,large barrier fences,and building facade trellis systems.As an emerging product one architectural decoration and protection,stainless steel rope mesh has provided the modern architectural decoration and horticulture engineering with a new and stylish element,which is getting more and more appreciated by designers and clients over the world.


CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 2

4.Application:

It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.

CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 3

5. Advantage:

1.The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested – especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.

 CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 4

6. Accessory:

CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 5

7. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 6



8. Company:



Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Located in the native land of wire mesh in China. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.

Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.

CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 7 CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 8

CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 9



9. Factory :



CE PVC Coated SUS304 Stainless Steel Cable Netting With Rope Mesh 2.0MM 10
