| Place of Origin: | China |
|---|---|
| Brand Name: | YUNTONG |
| Certification: | CE |
| Model Number: | YT-F2560 |
| Minimum Order Quantity: | 5 |
| Price: | USD 5-25/m2 |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000m2/week |
| Material: | SUS 304 SUS 316 | Wire Diameter: | 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm |
|---|---|---|---|
| Size Of Hole: | 25*25mm-300*300mm | Height: | Customized |
| Length: | Customized | Characteristic: | Anti-corrosion Non-rusting Anti Acid And Alkali |
| Application: | Protective, Fall Prevention | Weave Style: | Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled |
| Highlight: | 304 stainless steel safety netting,suspended bridge stainless steel safety netting,316 stainless steel rope netting |
||
Stainless steel 304 316 suspended safety netting for bridge with rope mesh 2.5 mm
The flexible Stainless Steel Diamond Rope Mesh For suspended safety netting Construction ferrule type is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane. As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customized to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, they assure their complete security
1. Specification as follows:
Material: ss304 ss316
Mesh type: 1.Woven 2. Ferrule mesh
cable structures:7 x7, 7 x19
Material: SUS 304 SUS 316
Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm 6.0mm etc.
Mesh aperture: 25*25mm 30*30mm 35*35mm 40*40mm 50*50mm 60*60mm 80*80mm 100*100mm 150*150mm 200mm*200mm 300*300mm etc.
Height: general 0.5-30meter
Length: general 0.5-30mete
Shape: There are irregular shape, triangle parallelogram trapezoid etc.
2. cable structures and mesh type:
1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

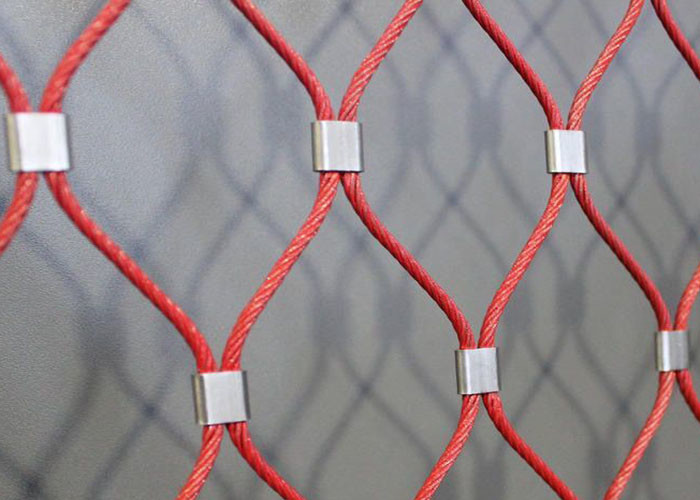

2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
2. Specification List:
|
Anping Yuntong Metal Wire Mesh Co.,Ltd Flexible Stainless Steel Cable Mesh(Ferrule Type) |
|||||||
| Code | Rope Construction | Min Breaking Load (KN) | Rope Diameter | Aperture | Aplication | ||
| Inch | mm | Inch | mm | ||||
| 1 | 7× 19 | 7.38 | 1/8 | 3.2 | 6”×6” | 152× 152 |
It can used in the following areas: stair railing,balustrade infill, architectural surface plant climbing net, Aviary Mesh, Bird Netting,Animal Enclosure, Zoo Mesh,Agriculture,Residential,Sports, Etc.
|
| 2 | 7× 19 | 7.38 | 1/8 | 3.2 | 5”×5” | 127×127 | |
| 3 | 7× 19 | 7.38 | 1/8 | 3.2 | 4.7”×4.7” | 120×120 | |
| 4 | 7× 19 | 7.38 | 1/8 | 3.2 | 4”×4” | 102×102 | |
| 5 | 7× 19 | 7.38 | 1/8 | 3.2 | 3.6”×3.6” | 90×90 | |
| 6 | 7× 19 | 7.38 | 1/8 | 3.2 | 3”×3” | 76×76 | |
| 7 | 7× 19 | 7.38 | 1/8 | 3.2 | 2.4”×2.4” | 60×60 | |
| 8 | 7× 19 | 7.38 | 1/8 | 3.2 | 2”×2” | 51×51 | |
| 9 | 7× 7 | 4.18 | 3/32 | 2.4 | 6”×6” | 152× 152 | |
| 10 | 7× 7 | 4.18 | 3/32 | 2.4 | 5”×5” | 127×127 | |
| 11 | 7× 7 | 4.18 | 3/32 | 2.4 | 4”×4” | 102×102 | |
| 12 | 7× 7 | 4.18 | 3/32 | 2.4 | 3.6”×3.6” | 90×90 | |
| 13 | 7× 7 | 4.18 | 3/32 | 2.4 | 3”×3” | 76×76 | |
| 14 | 7× 7 | 4.18 | 3/32 | 2.4 | 2.4”×2.4” | 60×60 | |
| 15 | 7× 7 | 4.18 | 3/32 | 2.4 | 2”×2” | 51×51 | |
| 16 | 7× 7 | 3.17 | 5/64 | 2 | 3”×3” | 76×76 | |
| 17 | 7× 7 | 3.17 | 5/64 | 2 | 2.4”×2.4” | 60×60 | |
| 18 | 7× 7 | 3.17 | 5/64 | 2 | 2”×2” | 51×51 | |
| 19 | 7× 7 | 3.17 | 5/64 | 2 | 1.5”×1.5” | 38×38 | |
| 20 | 7× 7 | 2.17 | 1/16 | 1.6 | 4”×4” | 102×102 | |
| 21 | 7× 7 | 2.17 | 1/16 | 1.6 | 3”×3” | 76×76 | |
| 22 | 7× 7 | 2.17 | 1/16 | 1.6 | 2.4”×2.4” | 60×60 | |
| 23 | 7× 7 | 2.17 | 1/16 | 1.6 | 2”×2” | 51×51 | |
| 24 | 7× 7 | 2.17 | 1/16 | 1.6 | 1.5”×1.5” | 38×38 | |
| 25 | 7× 7 | 2.17 | 1/16 | 1.6 | 1.2”×1.2” | 30×30 | |
| 26 | 7× 7 | 2.17 | 1/16 | 1.6 | 1”×1” | 25.4×25.4 | |
| 27 | 7× 7 | 1.22 | 3/64 | 1.2 | 4”×4” | 102×102 | |
| 28 | 7× 7 | 1.22 | 3/64 | 1.2 | 3”×3” | 76×76 | |
| 29 | 7× 7 | 1.22 | 3/64 | 1.2 | 2”×2” | 51×51 | |
| 30 | 7× 7 | 1.22 | 3/64 | 1.2 | 1.5”×1.5” | 38×38 | |
| 31 | 7× 7 | 1.22 | 3/64 | 1.2 | 1.2”×1.2” | 30×30 | |
| 32 | 7× 7 | 1.22 | 3/64 | 1.2 | 1”×1” | 25.4×25.4 | |
4.Application:
It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
5. Advantage:
1. The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110, 000 PSI)
7. This product can bear the heavy snow and the gale very much.
8. Without toxic material, safety, environmental protection.
6. Accessory:
7. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
8. Company:
Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Located in the native land of wire mesh in China. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.
Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.
