| Place of Origin: | China |
|---|---|
| Brand Name: | YUNTONG |
| Certification: | CE |
| Model Number: | YT-F2050 |
| Minimum Order Quantity: | 5 |
| Price: | USD 5-25/m2 |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000m2/week |
| Name: | 1.5mm Webnet Stainless Steel Mesh Railing Guard Bridge Stairway | Material: | SUS 304 SUS 316 |
|---|---|---|---|
| Wire Diameter: | 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm | Size Of Hole: | 25*25mm-300*300mm |
| Height: | Customized | Length: | Customized |
| Characteristic: | Anti-corrosion Non-rusting Anti Acid And Alkali | Application: | Protective, Fall Prevention |
| Weave Style: | Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled | ||
| High Light: | 1.5mm webnet stainless steel mesh,railing guard webnet stainless steel mesh,50*50mm hole webnet wire mesh |
||

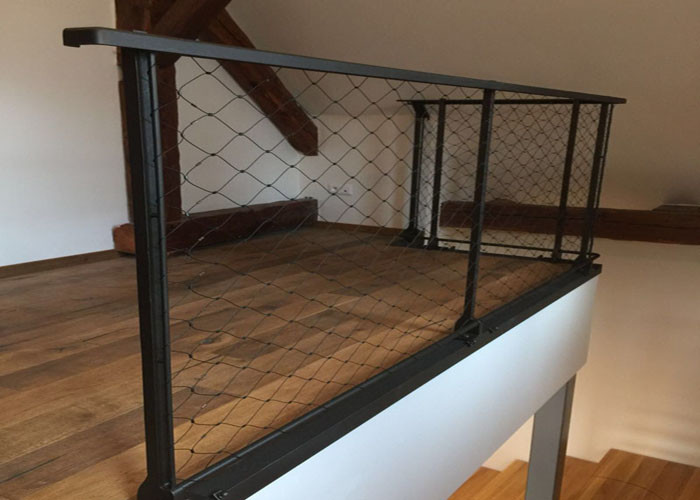

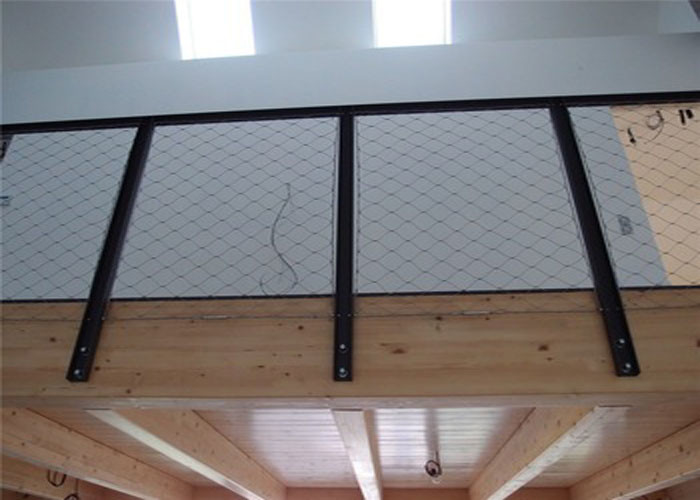

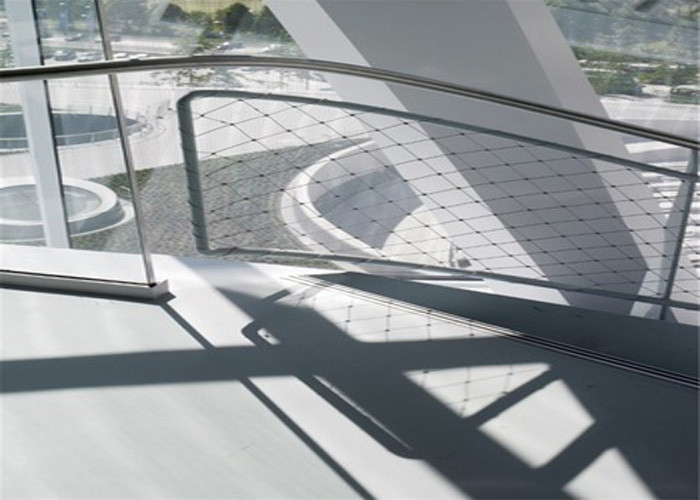

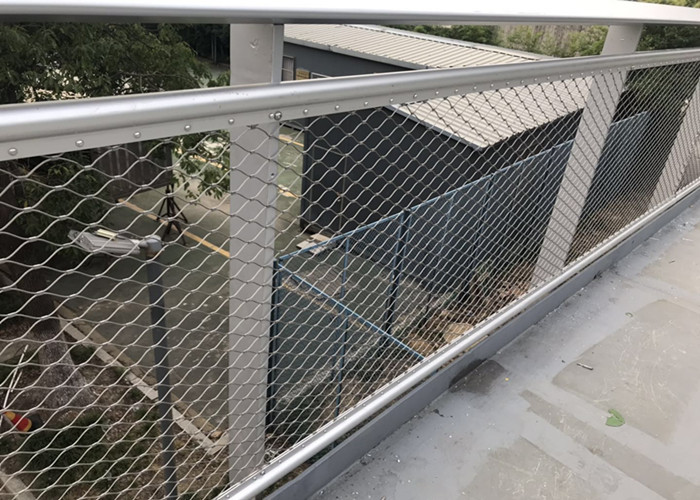

1.5mm Webnet Stainless Steel Mesh Railing Guard Bridge Stairway
1. Specification:
The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customized to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
Stainless steel wire rope mesh is custom manufactured to in width and length to suit your balustrades and staircases ;
|
Anping Yuntong Metal Wire Mesh Co.,Ltd Flexible Stainless Steel Cable Mesh(Ferrule Type) |
||||||
| Mesh Aperture | Wire diameter | |||||
| OW X OH (mm) | Inch | 1.2 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm |
| 3/64" | 1/16" | 5/64" | 1/8" | 0.157" | ||
| 20 x 35 | 4/5×1.39 | YT1220 | ||||
| 25.4 x 44 | 1×1.73 | YT1225 | YT1525 | |||
| 35 x 61 | 1.37×24 | YT1235 | YT1535 | YT2035 | ||
| 38 x 65.8 | 1-1/2×2.6 | YT1235 | YT1538 | YT2038 | YT3038 | |
| 51 x 88.3 | 2×3.46 | YT1251 | YT1551 | YT2051 | YT3051 | YT4051 |
| 60 x 105 | 2.4×4.16 | YT1260 | YT1560 | YT2060 | YT3060 | YT4060 |
| 76 x 131.6 | 3×5.2 | YT1276 | YT1576 | YT2076 | YT3076 | YT4076 |
| 90 x 156 | 3.5×6.15 | YT1290 | YT1576 | YT2090 | YT3090 | YT4090 |
| 102 x 176.7 | 4×6.9 | YT20100 | YT15100 | YT20100 | YT30100 | YT40100 |
| 120 x 210 | 4.75×8.23 | YT12120 | YT15120 | YT20120 | YT30120 | YT40120 |
| 160 x 280 | 6.3 x 11 | YT12160 | YT15160 | YT20160 | YT30160 | YT40160 |
| 180 x 315 | 7.08 x 12.4 | YT12180 | YT15180 | YT20180 | YT30180 | YT40180 |
| 200 x 350 | 7.87 x 13.78 | YT12200 | YT15200 | YT20200 | YT30200 | YT40200 |
| 250 x 450 | 9.84 x 17.7 | YT12250 | YT15250 | YT20250 | YT30250 | YT40250 |
| 300 x 525 | 11.8 x 20.67 | YT12300 | YT15300 | YT20300 | YT30300 | YT40300 |
2. Stainless Steel Meshcable structures
3. Advantage:
1.The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested – especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and
installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.
4.Stainless Steel MeshApplication: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
5. Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
