4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316

Basic Information
Place of Origin: China
Brand Name: YUNTONG
Certification: CE
Model Number: YT-F2560
Minimum Order Quantity: 5
Price: USD 5-25/m2
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000m2/week
Material: SUS 304 SUS 316 Wire Diameter: 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole: 25*25mm-300*300mm Height: Customized
Length: Customized Characteristic: Anti-corrosion Non-rusting Anti Acid And Alkali
Application: Protective, Fall Prevention Weave Style: Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
High Light:

corrosion resistant wire rope mesh

,

aisi 316 wire rope mesh

,

4.0mm stainless steel wire rope mesh

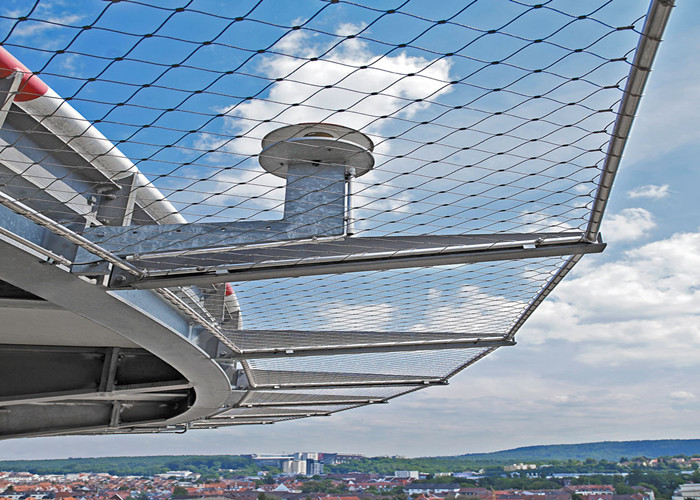

Corrosion Resistant AISI316 wire rope mesh net as balustrade security net for balcony terrace 2.5mm wire 60*60 mm hole



1. Specification:



Stainless steel flexible wire rope mesh adopt ferrule type which is sturdy and unlimited in wide and long ;

This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;



Usually the mesh eye size for the balustrade wire rope mesh is mesh wide 25 mm by mesh high 150 mm with wire rope diameter 1.5 mm 1.6 mm 2.0 mm 2.5 mm 3.0 mm 4.0 mm 6.0 mm;



Stainless steel wire rope mesh is custom manufactured to in width and length to suit your balustrades and staircases ;



4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 0

Anping Yuntong Metal Wire Mesh Co.,Ltd

Flexible Stainless Steel Cable Mesh(Ferrule Type)

Mesh Aperture Wire diameter
OW X OH (mm) Inch 1.2 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
3/64" 1/16" 5/64" 1/8" 0.157"
20 x 35 4/5×1.39 YT1220
25.4 x 44 1×1.73 YT1225 YT1525
35 x 61 1.37×24 YT1235 YT1535 YT2035
38 x 65.8 1-1/2×2.6 YT1235 YT1538 YT2038 YT3038
51 x 88.3 2×3.46 YT1251 YT1551 YT2051 YT3051 YT4051
60 x 105 2.4×4.16 YT1260 YT1560 YT2060 YT3060 YT4060
76 x 131.6 3×5.2 YT1276 YT1576 YT2076 YT3076 YT4076
90 x 156 3.5×6.15 YT1290 YT1576 YT2090 YT3090 YT4090
102 x 176.7 4×6.9 YT20100 YT15100 YT20100 YT30100 YT40100
120 x 210 4.75×8.23 YT12120 YT15120 YT20120 YT30120 YT40120
160 x 280 6.3 x 11 YT12160 YT15160 YT20160 YT30160 YT40160
180 x 315 7.08 x 12.4 YT12180 YT15180 YT20180 YT30180 YT40180
200 x 350 7.87 x 13.78 YT12200 YT15200 YT20200 YT30200 YT40200
250 x 450 9.84 x 17.7 YT12250 YT15250 YT20250 YT30250 YT40250
300 x 525 11.8 x 20.67 YT12300 YT15300 YT20300 YT30300 YT40300
2. Structure and Types:
4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 1



4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 2

3. introduction:



The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.

Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizes to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.



4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 3

4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 4

4. Advantage:



1.The netting is clipped to the cable,

2. The mesh size and diameter can be modified

3. It can be made to customer orders and statically tested – especially suitable for facades

4. High strength, strong toughness, free-angles curving and fold, easy for transportation and
installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.


4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 5

5.Accessory:

4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 64.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 7



6.Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.

4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 8

7. Packing and Delivery:

Packing: Paper carton, wooden case

Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

4.0mm Corrosion Resistant Wire Rope Mesh Aisi 316 9
