25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using

Basic Information
Place of Origin: China
Brand Name: YUNTONG
Certification: CE
Model Number: YT-F2560
Minimum Order Quantity: 5
Price: USD 5-25/m2
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000m2/week
Material: SUS 304 SUS 316 Wire Diameter: 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole: 25*25mm-300*300mm Name: 25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using
Length: Customized Characteristic: Anti-corrosion Non-rusting Anti Acid And Alkali
Application: Protective, Fall Prevention Weave Style: Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
High Light:

25*25mm architectural wire mesh

,

balustrade infill architectural wire mesh

,

staircase stainless steel wire rope mesh

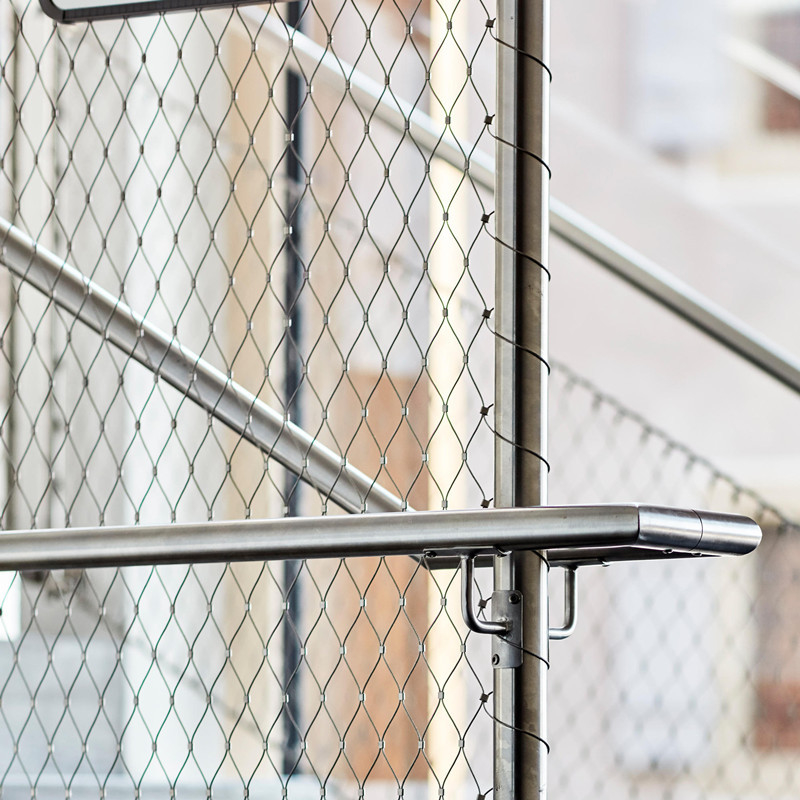

Balustrade Infill Cable Netting Stainless Steel Rope Mesh For Staircase 2.5mm wire 60*60 mm hole



1. Specification:



Stainless steel flexible wire rope mesh adopt ferrule type which is sturdy and unlimited in wide and long ;

This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;



Usually the mesh eye size for the balustrade wire rope mesh is mesh wide 25 mm by mesh high 150 mm with wire rope diameter 1.5 mm 1.6 mm 2.0 mm 2.5 mm 3.0 mm 4.0 mm 6.0 mm;



Stainless steel wire rope mesh is custom manufactured to in width and length to suit your balustrades and staircases ;



Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s Cable Diameter Mesh Opening Size
(W×H)

Normal Break



  inch mm inch mm

ibs.



YT-3212F 1/8 3.2 4.75×8.23 120×207.8 1,600
YT-3210F 1/8 3.2 4×6.9 102×176.7 1,600
YT-3211F 1/8 3.2 3.5×6.15 90×156 1,600
YT-3212F 1/8 3.2 3×5.2 76×131.6 1,600
YT-3213F 1/8 3.2 2×3.46 51×88.3 1,600
YT-3214F 3/32 2.4 4×6.9 102×176.7 920
YT-3215F 3/32 2.4 3.55×6.15 90×156 920
YT-3216F 3/32 2.4 3×5.2 76×131.6 920
YT-3217F 3/32 2.4 2.4×4.16 60×104 920
YT-3218F 3/32 2.4 2×3.46 51×88.3 920
YT-3219F 5/64 2.0 3×5.2 76×131.6 676
YT-3220F 5/64 2.0 2.4×4.16 60×104 676
YT-3221F 5/64 2.0 2×3.46 51×88.3 676
YT-3222F 5/64 2.0 1-1/2×2.6 38×65.8 676
YT-3223F 1/16 1.6 1.2×2.08 76×131.6 480
YT-3224F 1/16 1.6 2×3.46 51×88.3 480
YT-3225F 1/16 1.6 1-1/2×2.6 38×65.8 480
YT-3226F 1/16 1.6 1.2×2.08 30×52 480
YT-3227F 1/16 1.6 1×1.73 25.4×44 480
YT-3228F 3/64 1.2 1-1/2×2.6 38×65.8 270
YT-3229F 3/64 1.2 1.2×2.08 30×52 270
YT-3230F 3/64 1.2 1×1.73 25.4×44 270
YT-3231F 3/64 1.2 4/5×1.39 20×34.6 270

2. Structure and Types:
25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using 0



25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using 1

3. introduction:



The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.

Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizes to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.



25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using 2

25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using 3

4. Advantage:

1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors a good view of sight.



2. Flexibility: the smooth mesh surface can get in close contact with animal’s fur and feather without damaging them and meanwhile guarantees enough tensile strength.
3. Its rust and corrosion resistant and maintenance-free features as well as ultra-long service life can provide a beautiful site and reduces the zoo’s operating costs. One-time investment provides permanent use—its comprehensive profits outperform other competitive products greatly.
4. Light weight; flexible; anti-fatigue; great tensile strength; simple structure; environment friendly; non-poisonous and recyclable; easy for transportation and installation; no deformation after long-time service.



25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using 4

5.Accessory:

25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using 525*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using 6

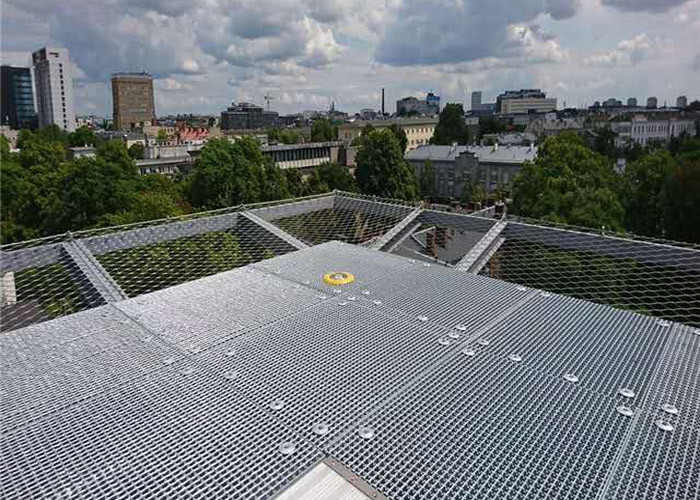

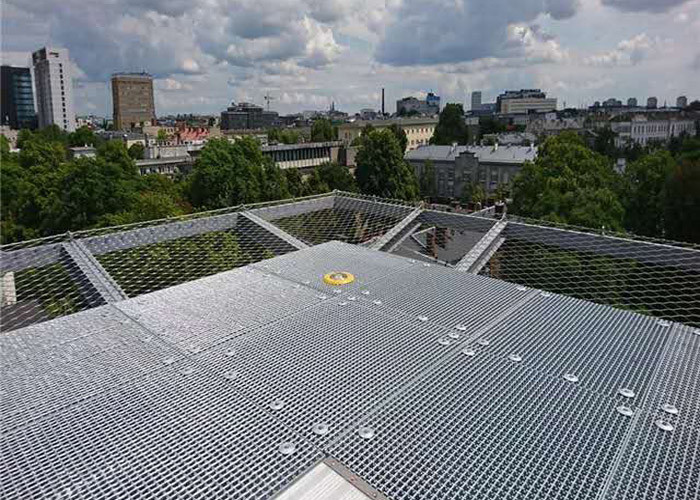

6.Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.

25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using 7

7. Packing and Delivery:

Packing: Paper carton, wooden case

Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

25*25mm Architectural Wire Mesh Balustrade Infill Cable Netting Staircase Using 8
