1 X 19 Wire 304/316 Stainless Steel Rope Mesh For Balcony Railing

Basic Information
Place of Origin: Hebei
Brand Name: Yuntong
Certification: CE , SGS
Model Number: YT--F-F
Minimum Order Quantity: 10 Sqm
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 300Sqm/Week
Material: Stainless Steel 304 , 316 , 316L Wire Rope: 1.2 Mm To 4.0 Mm
Rope Constructions: 7 X 7 , 7 X 19 , 1 X 19 Finished: Ultrasonic Bath / Black Oxide
Mesh Orientation: Horizontal , Vertical Product Name: Inox X-tend Cable Mesh Webnet
Mesh Shape: Rhombus , Diamond Application: Staircase Security , Balustrade Infill , Railing Safety
Panel Size: Customized In Width And Length Mesh Angle: 60 Degree
Mesh Style: X-tend In Ferruled Type
High Light:

balcony railing stainless steel rope mesh

,

316 wire stainless steel rope mesh

,

304 stainless steel wire rope mesh

Hot sale 304/316 Stainless Steel Cable Rope Mesh for Balcony Railing Mesh

Product description
WIRE ROPE MESH (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.
Cable diameter
Mesh opening size
Nominal break
inch
mm
inch
mm
lbs.
1/8
3.2
4x4
102x102
1600
1/8
3.2
3x3
76x76
1600
1/8
3.2
2x2
51x51
1600
3/32
2.4
4x4
102x102
920
3/32
2.4
3x3
76x76
920
3/32
2.4
2x2
51x51
920
5/64
2.0
3x3
76x76
676
5/64
2.0
2x2
51x51
676
5/64
2.0
1-1/2x 1-1/2
38x38
676
1/16
1.6
3x3
76x76
480
1/16
1.6
2x2
51x51
480
1/16
1.6
1-1/2x 1-1/2
38x38
480
1/16
1.6
1x1
25.4x25.4
480
3/64
1.2
1-1/2x 1-1/2
38x38
270
3/64
1.2
1x1
25.4x25.4
270
3/64
1.2
4/5x4/5
20x20
270
Main Feature: 1.The mesh is clipped to the cable. 2.The hole size and diameter can be modified. 3.It can be made to customer orders and statically tested – especially suitable for facades. 4.High strength,strong toughness,free-angles curving and fold,easy for transportation and installment. 5.Anti-corrosive,resist the rust,can be repeated use. 6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI) 7.This product can bear the heavy snow and the gale very much. 8.Without toxic material,safety,environmental protection.

1 X 19 Wire 304/316 Stainless Steel Rope Mesh For Balcony Railing 0

Technology
The type of stainless steel rope mesh 1. Knotted mesh is a kind of plain weave,each warp wire rope crosses alternately above and below each weft wire rope.Warp and weft wire ropes generally have the same diameter. 2.Ferruled mesh is of the same physical properties with the knotted mesh,the only difference is in the combination style,the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
1 X 19 Wire 304/316 Stainless Steel Rope Mesh For Balcony Railing 2
Feature
1 X 19 Wire 304/316 Stainless Steel Rope Mesh For Balcony Railing 3
Application

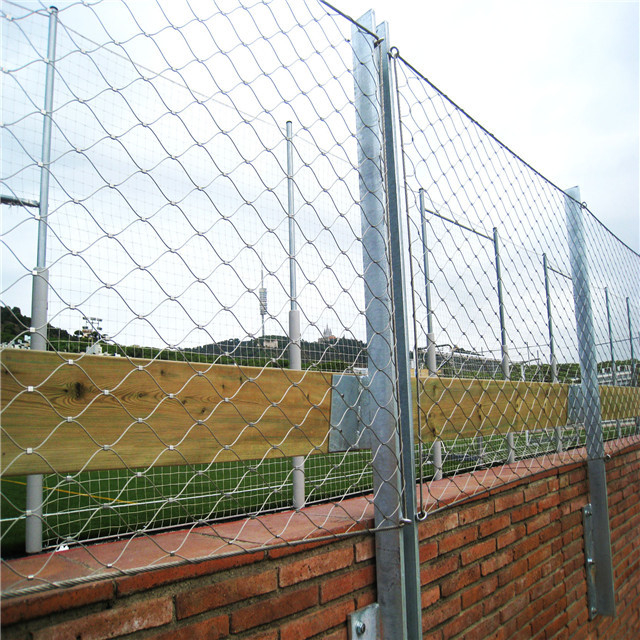

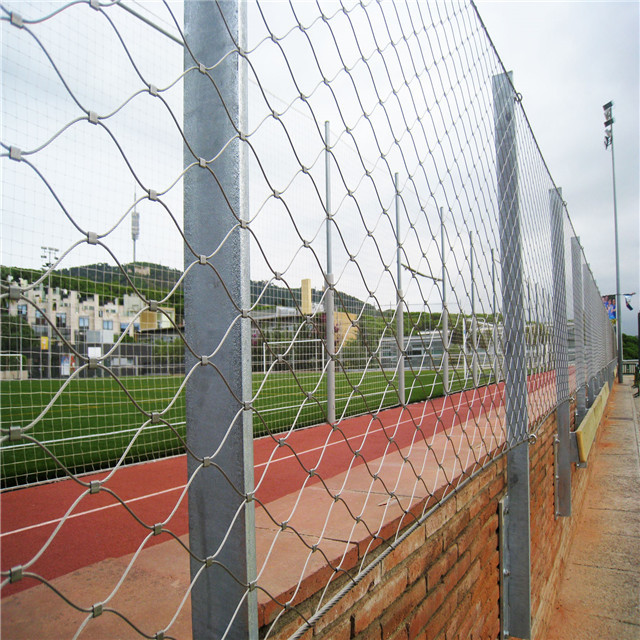

Stainless steel wire rope mesh used for wide range of application: bird net, zoo, greenhouse, airport, fencing, decoration in hall, green wall series and so on. It is safe, light weight, long service life, high-strength, etc.
1 X 19 Wire 304/316 Stainless Steel Rope Mesh For Balcony Railing 4
1 X 19 Wire 304/316 Stainless Steel Rope Mesh For Balcony Railing 5
