| Place of Origin: | Hebei |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT--F-1550 |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Carton Box , Wooden Case |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Material: | Stainless Steel 304 , 316 , 316L | Wire Rope: | 1.5mm , 1.6mm , 2.0mm |
|---|---|---|---|
| Rope Constructions: | 7 X 7 , 7 X 19 | Mesh Orientation: | Horizontal , Vertical |
| Mesh Shape: | Rhombus , Diamond | Application: | Security Mesh Fence |
| Mesh Angle: | 60 Degree | Mesh Style: | Ferruled |
| Sheet Size: | Customized In Width And Length | ||
| Highlight: | balustrade safety netting,metal rope mesh |
||

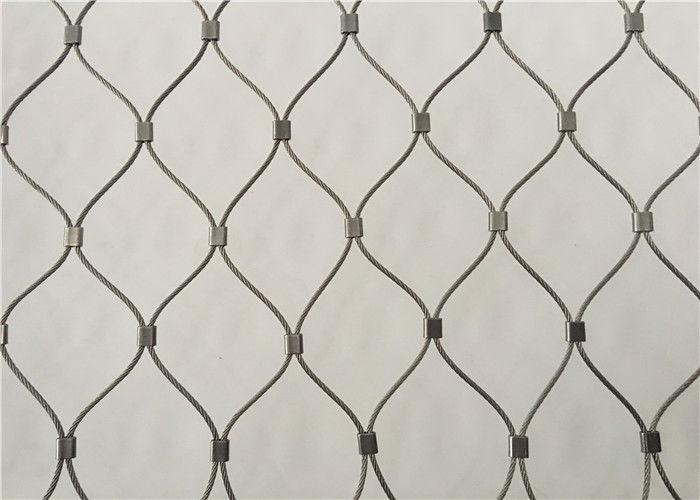

Ferrule Style Flexible Stainless Steel Wire Rope Net Used for Balustrades
| Wire Rope Diameter | |||||||
| Flexible HeslyCable ferruled stainless steel cable mesh netting is made from stainless steel wire ropes.Extremely flexible,High strength, Corrosion resistant.Available AISI 316,AISI 304 | |||||||
| Structure | 1.2 mm | 1.5 mm | 2.0 mm | 3.0mm | 4.0 mm |
|
|
| Structure | 7 x 7 | 7 x 7 | 7 x 7 | 7 x 19 | 7 x 19 | ||
| Single Wire TS (N/mm2) | 1770 | 1770 | 1770 | 1570 | 1570 | ||
| Opening Size ( OW X OH ) | |||||||
| The mesh width ,OW ,refers to the distance from the middle of one ferrule to the next ferrule along the cable ,net geometry is optimised, when the resulting diamond can be divided into two equilateral triangles with 60 ° corners. | |||||||
| Opening Size | Rope Diameter |
Mesh Structure Optimum Angle: 60° |
|||||
| OW X OH | 1.2 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm | ||
| 20 x 35 | CD1020 |  |
|||||
| 25 x 43 | CD1025 | CD1525 | |||||
| 35 x 61 | CD1035 | CD1535 | |||||
| 40 x 69 | CD1040 | CD1540 | CD2040 | ||||
| 50 x 87 | CD1050 | CD1550 | CD2050 | CD3050 | |||
| 60 x 104 | CD1060 | CD1560 | CD2060 | CD3060 | CD4060 | ||
| 70 x 121 | CD1070 | CD1570 | CD2070 | CD3070 | CD4070 | ||
| 80 x 139 | CD1080 | CD1580 | CD2080 | CD3080 | CD4080 | DecorRope | |
| 100 x 173 | CD10100 | CD15100 | CD20100 | CD30100 | CD40100 | OW : Opening Width | |
| 120 x 242 | CD10120 | CD15120 | CD20120 | CD30120 | CD40120 | OH : Opening Height | |
| 160 x 277 | CD10160 | CD15160 | CD20160 | CD30160 | CD40160 | OG : Opening Guage | |
| 180 x 312 | CD10180 | CD15180 | CD20180 | CD30180 | CD40180 | α : 60° standard (Angle: 30° - 90°) | |
| 200 x 346 | CD10200 | CD15200 | CD20200 | CD30200 | CD40200 | ||
|
Mesh Aperture : |
|
|
Mesh Orientation & Finished
|
|
|
FAQ:
1,Q: Can you offer free sample?
A:Yes, but usually the customer need to pay the freight
2,Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in fence field for 13 years.
3,Q: What information should I provide, if I want a lowest quotation?
A: The specification of the mesh.
4,Q:Can I customize the products?
A:Yes, as long as provide specifications, drawings, can only do what you want products.
