Aluminum Alloy Metal Cascade Coil Drapery Chain Link Curtain Wall CE Approved

Basic Information
Place of Origin: Hebei , P.R.China
Brand Name: Yuntong
Certification: CE
Model Number: YT-ACC-1266
Minimum Order Quantity: 10
Packaging Details: Wooden Case
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 500Sqm/Week
Product Name: Metal Cascade Coil Drapery Material: Aluminum , Stainless Steel , Galvanized Wire
Wire Diameter: 0.8 Mm , 1.0 Mm 1.2 Mm , 1.5 Mm , 1.8 Mm , 2.0 Mm Hole Size: 4 Mm , 5 Mm , 6 Mm , 8 Mm , 10 Mm
Application: WIndow Curtain , Room Divider , Curtain Wall Drapery: 1.5 Time , 1.0 Time
Color: Gunmetal , Black , Bronze , Silver , Copper , Etc
High Light:

coil mesh drapery


cascade coil architectural drapery

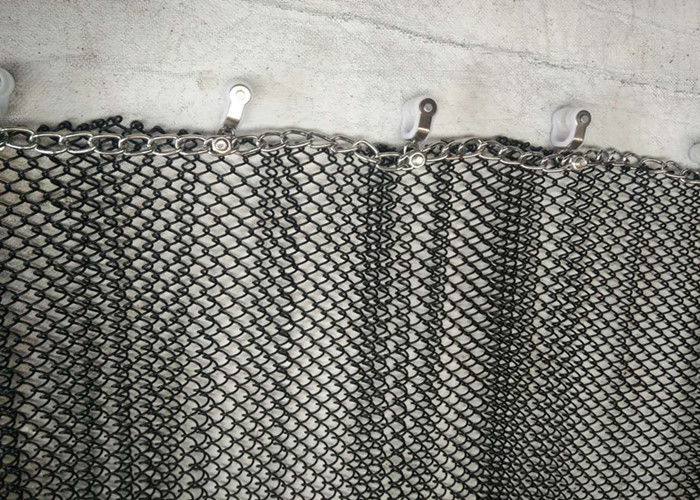

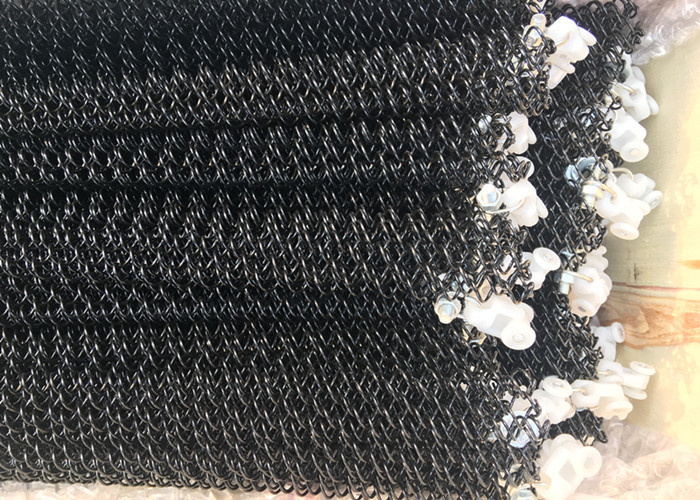

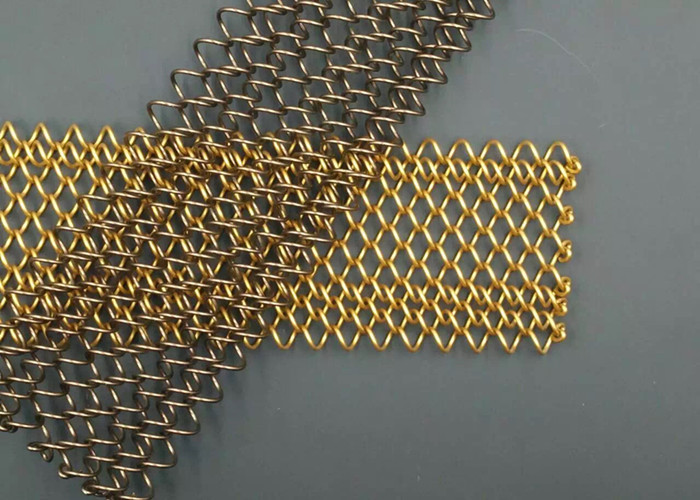

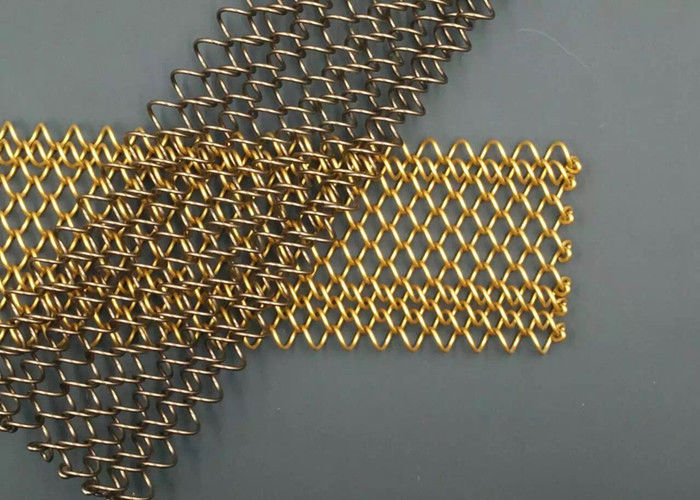

 Aluminum Alloy Metal Cascade Coil Drapery Chain Link Curtain Wall


Metal Cascade Coil Drapery  Instruction :


Material Wire Dia Hole Size Weight  Surface
Stainless Steel 1.0 mm 5 mm 3.3kg/m2 Natural polished
Stainless Steel 1.0 mm 6 mm 3.5kg/m2 Natural polished
Stainless Steel 1.2 mm  6 mm 5.5kg/m2 Natural polished
Al-Mg Alloy 1.2 mm 4 mm 1.9kg/m2 Paint-spray /Anodizing
Al-Mg Alloy 1.2 mm 5 mm 1.5kg/m2 Paint-spray /Anodizing
Al-Mg Alloy 1.2 mm 6 mm 1.25kg/m2 Paint-spray /Anodizing
Al-Mg Alloy 1.2 mm 7 mm 1.2kg/m2 Paint-spray /Anodizing
Al-Mg Alloy 1.2 mm 8 mm 1.13kg/m2 Paint-spray /Anodizing
Al-Mg Alloy 1.2 mm 9 mm 0.85kg/m2 Paint-spray /Anodizing
Aluminium 1.0 mm 5 mm 1.5kg/m2 Paint-spray /Anodizing
Aluminium 1.2 mm  6 mm 2.5kg/m2 Paint-spray /Anodizing
Aluminium 1.2 mm 7 mm 2.0kg/m2 Paint-spray /Anodizing
Carbon Steel 0.9 mm 6 mm 4.0kg/m2 Paint-spray /Anodizing
Carbon Steel 1.0 mm 7 mm 5.5kg/m2 Paint-spray /Anodizing
Carbon Steel 1.2 mm 8 mm 6.0kg/m2 Paint-spray /Anodizing



1. The material: We have the Aluminum alloy and the SS 304, 316,
2. The wire diameter: 0.6mm-2.0mm
3. The mesh hole: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, and as you need
4. The color of the mesh: We have more than hundreds of colors for your choice. You can also choose the color you favor.

Surface treatment :

1. Acid pickling:
This kind of treatment is most simple one. It mainly function is cleaning the oxide layer, and the metal curtain via this kind of treatment, the color will be the silvery white.

2. Anodic oxidation:
This one is a little complex; This one is working to enhance the rigidity and the wear-resisting property of the Al alloy. This one can color the metal curtain, and make the metal curtain more durable and beautiful.

3. Baking finish (This is the most popular one):
This kind is the simple one of coloring the metal curtain, it just paint mixing then put the metal curtain to the coating area to make the color.


This metal coil drapery is a new kind of building decoration materials, which are widely used in building elevation, divider, the ceiling, shade, balconies and corridors, shutter, staircases and airport access stations, hotels, museums, opera houses, concert halls, office buildings, exhibition halls, shopping malls, such as the high-grade internal and external decoration.




Light diffusion and good ventilation.
UV resistant and flame resistant.
Beautiful appearance and various color.
Versatility and decorative effects.
Aesthetic appeal and functionality.


Aluminum Alloy Metal Cascade Coil Drapery Chain Link Curtain Wall CE Approved 0Aluminum Alloy Metal Cascade Coil Drapery Chain Link Curtain Wall CE Approved 1
