| Place of Origin: | China |
|---|---|
| Brand Name: | Yuntong |
| Certification: | CE , SGS |
| Model Number: | YT-B-1711 |
| Minimum Order Quantity: | 10 square meters |
| Packaging Details: | Package water-proof plastic film and wooden case |
| Delivery Time: | About 8-10 Work Days |
| Payment Terms: | T/T, Western Union,PayPal, L/C |
| Supply Ability: | 400 Square meters per week |
| Cable Thickness: | 1.2mm, 1.5mm, 1.6mm , 2.0mm, 3.2mm | Mesh Eye Size: | 30x30 To 100x100mm Or Bigger |
|---|---|---|---|
| Weave Style: | Ferrule Rope Mesh | Shippment: | Express, Air Or Sea |
| Surface Treatment: | Black Oxide Polished | Mesh Angle: | 60 Degree |
| Size: | Customized Width And Length | Type: | Rope Mesh |
| Highlight: | balustrade safety netting,stainless steel cable mesh |
||
Black Oxide Stainless Steel Wire Rope Mesh Net X-tend Cable Mesh
stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.
Finished diamond mesh style when it is stretched at 60 degree angle Mesh sizes range from 20mm to 120mm or bigger with stainless cable diameters from 1.2mm to 4.0 mm.
Stainless Steel Cable Mesh Description:
| Wire Rope Mesh Constructure |
Rope Mesh Thickness (inch) |
Mesh Opening (mm) |
Min.Breaking Load(KN) |
| 7x19 | 1/8'' | 120x208 | 7.38 |
| 7x19 | 1/8'' | 100x173 | 7.38 |
| 7x19 | 1/8'' | 90x156 | 7.38 |
| 7x7 | 3/32'' | 100x173 | 4.18 |
| 7x7 | 3/32'' | 90x156 | 4.18 |
| 7x7 | 3/32'' | 80x139 | 4.18 |
| 7x7 | 3/32'' | 70x121 | 4.18 |
| 7x7 | 5/64'' | 100x173 | 3.17 |
| 7x7 | 5/64'' | 90x156 | 3.17 |
| 7x7 | 5/64'' | 80x139 | 3.17 |
| 7x7 | 5/64'' | 70x121 | 3.17 |
| 7x7 | 1/16'' | 80x139 | 2.17 |
| 7x7 | 1/16'' | 70x121 | 2.17 |
| 7x7 | 1/16'' | 60x104 | 2.17 |
| 7x7 | 1/16'' | 50x87 | 2.17 |
| 7x7 | 3/64'' | 80x139 | 1.22 |
| 7x7 | 3/64'' | 70x121 | 1.22 |
| 7x7 | 3/64'' | 60x104 | 1.22 |
| 7x7 | 3/64'' | 50x87 | 1.22 |

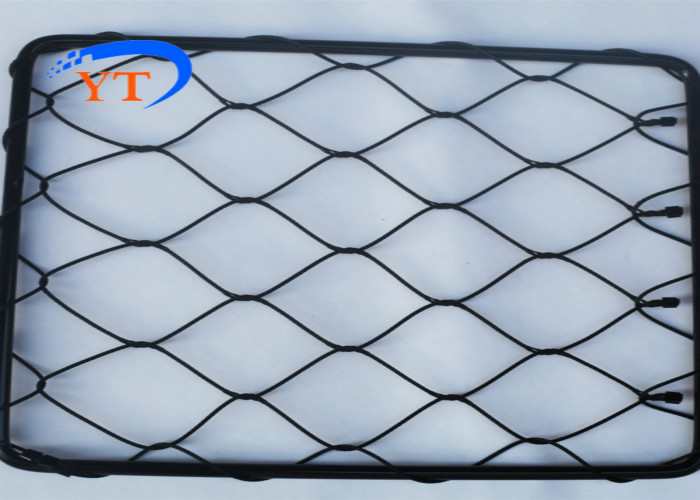

Black Oxide Stainless Steel Zoo Mesh Details:
